Page - 2

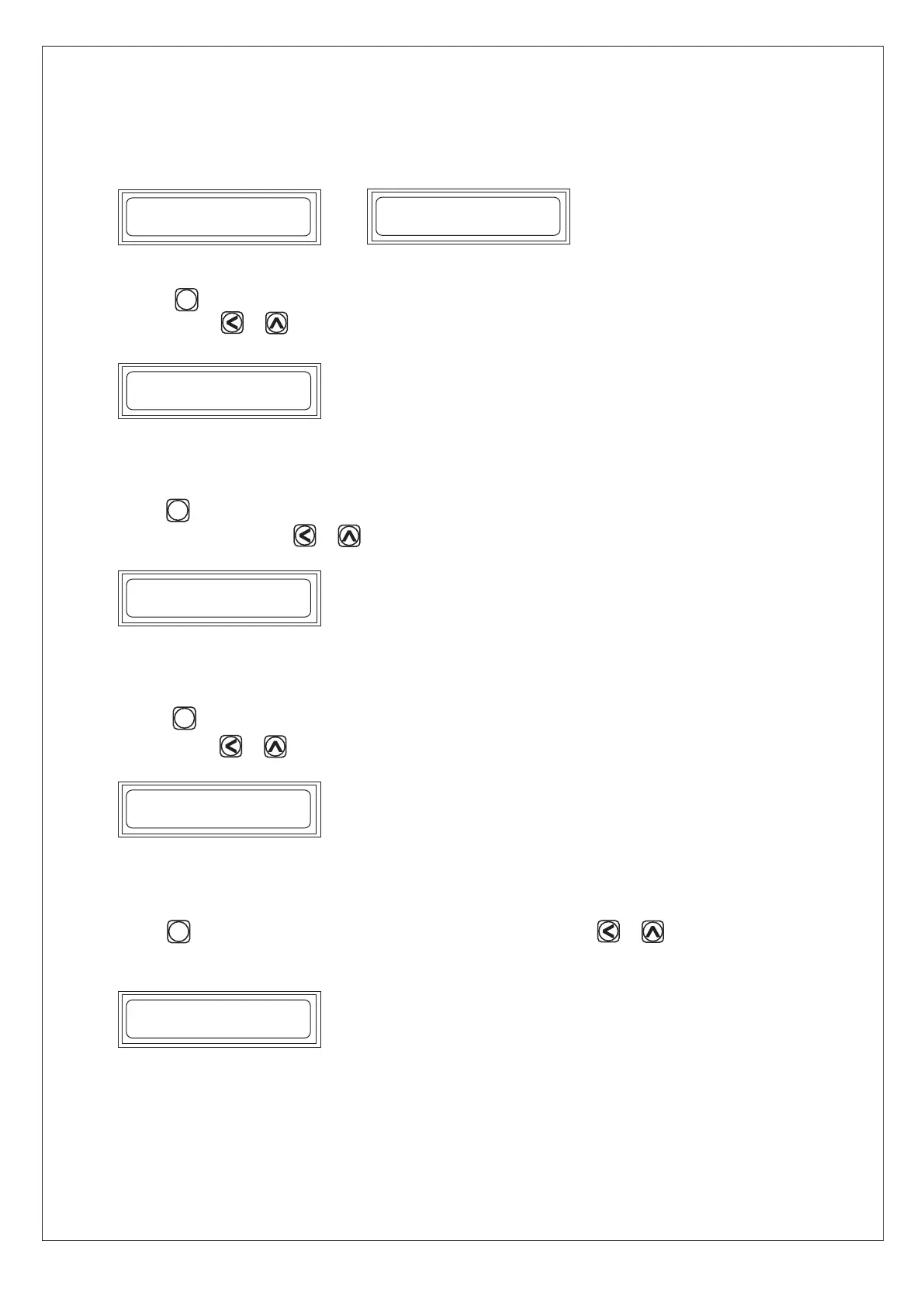

Power on instrument. Display will show
WORKING:
Clutch will on depend on set time
Batch relay energise at each set value of batch count
Press key, to set clutch on time. it is selectable 00.00-99.99 sec. Milii sec,
Change By & key.
Press key, to set batch count. selectable up to 0-9999. it shows set batch
count,& change by & Key
Press key, to set delay time after achieving set batch count value.
Change by & key.& Settable up 0-99.99 sec.
Press key, to set relay on time (CUTTER) change by & key,
Settable up to 99.99 sec.
2nd relay for inching and turn on with micro switch.
NOTE: If in running position of clutch,if CMS proxy pulse come,clutch will be OFF
After this Delay time, cutter will on.
000000
00.00
0000
BATCH
TIME : 03.00
BATCH CNT : 0002
DLY TIME: 00.00
RLY TIME: 00.00
CLUTCH & BREAK
CONTROLLER
SET
SET
SET
SET
*
*
*
*
*
*
MC 1003
