Multistack MS010XC - Extended Header Module Dimensions

13
Variable Flow Design for Chilled and Hot Water
Standard Modules with Extended Headers on
Evaporators and Condensers
Module Dimensions (No Panels)
Width (A) Depth (B) Height (C)
Standard 28” 47 ⁄” 64”
Total Access (MS010--050) 32” 56” 67”
Total Access (MS070) 34” 56” 67”
Extended Headers 28” 62 ⁄” 64” Extended Headers 28” 76 ⁄” 64”

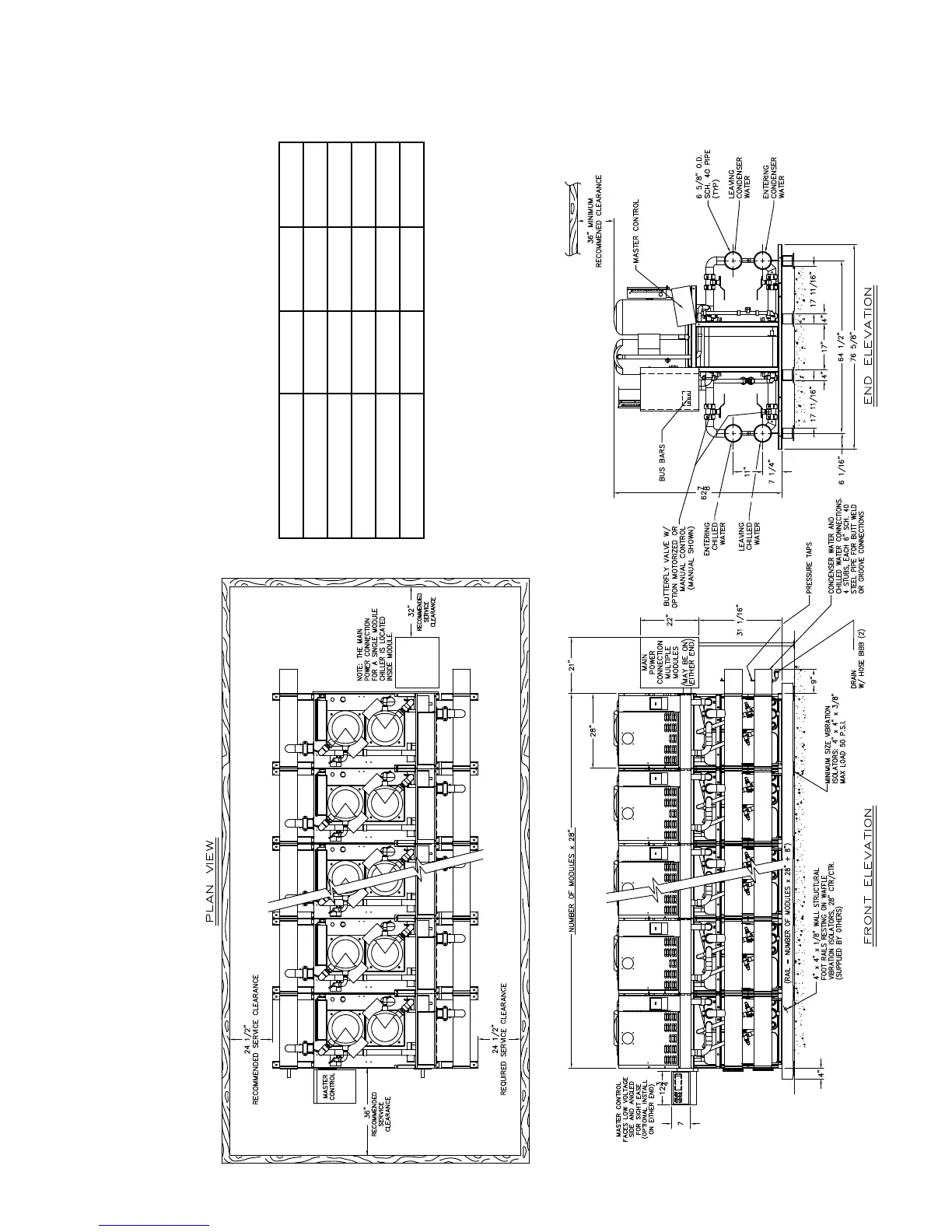

*Standardized drawing of sample customer installation **Enclosure panels are optional
A
B
C
