Multistack MS010XC - Standard Modules with Extended Condenser Headers

14
Variable Flow Design for Hot Water, Constant Flow for Chilled Water
Standard Modules with Extended Headers on Condensers

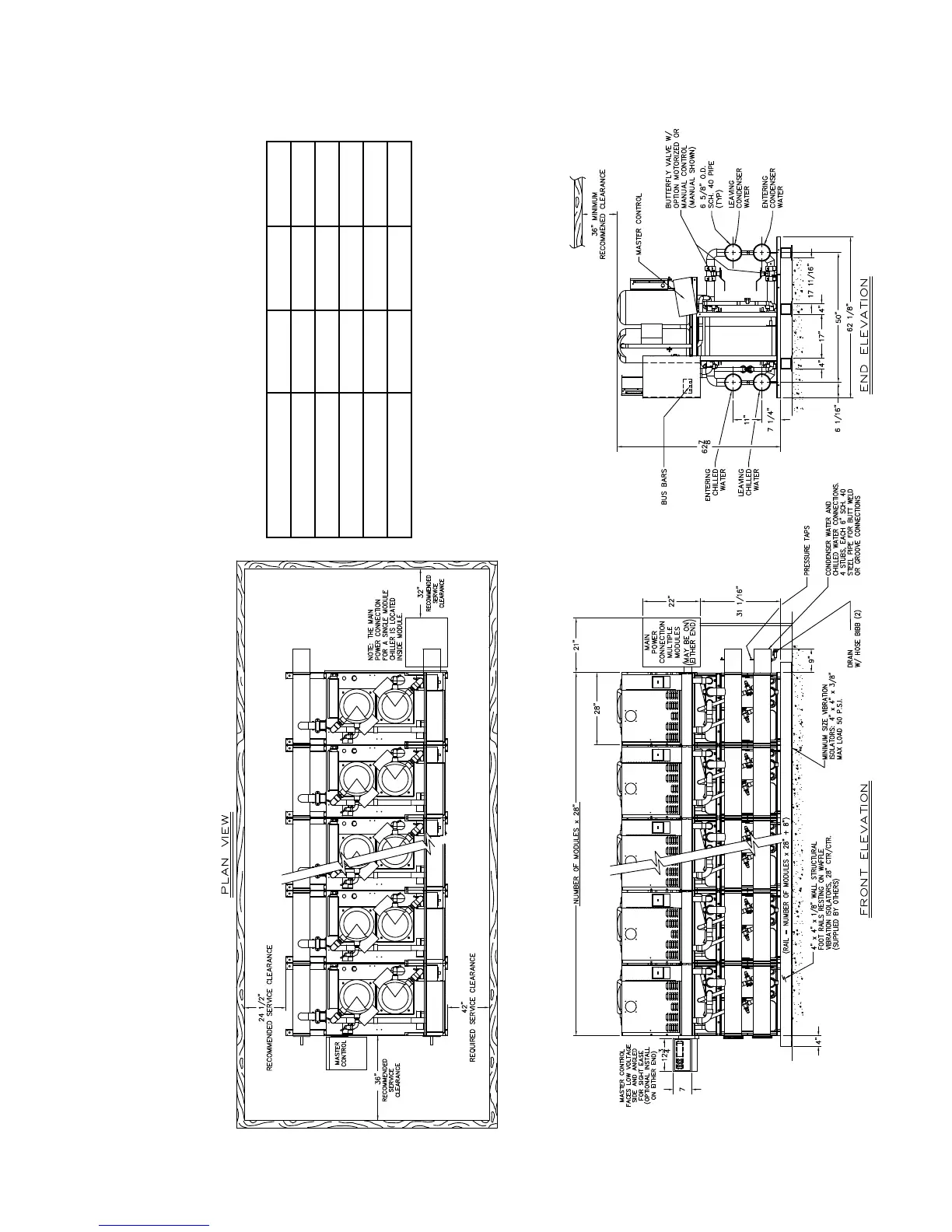

Module Dimensions (No Panels)
Width (A) Depth (B) Height (C)
Standard 28” 47 ⁄” 64”
Total Access (MS010--050) 32” 56” 67”
Total Access (MS070) 34” 56” 67”
Extended Headers 28” 62 ⁄” 64” Extended Headers 28” 76 ⁄” 64”
*Standardized drawing of sample customer installation ** Enclosure panels are optional
Module Dimensions (No Panels)
Width (A) Depth (B) Height (C)
Standard 28” 47 ⁄” 64”
Total Access (MS010--050) 32” 56” 67”
Total Access (MS070) 34” 56” 67”
Extended Headers 28” 62 ⁄” 64” Extended Headers 28” 76 ⁄” 64”
B
B
A
C
