PRODUCT OVERVIEW
12 MultiConnect
®
Cell MTC-LVW2 User Guide

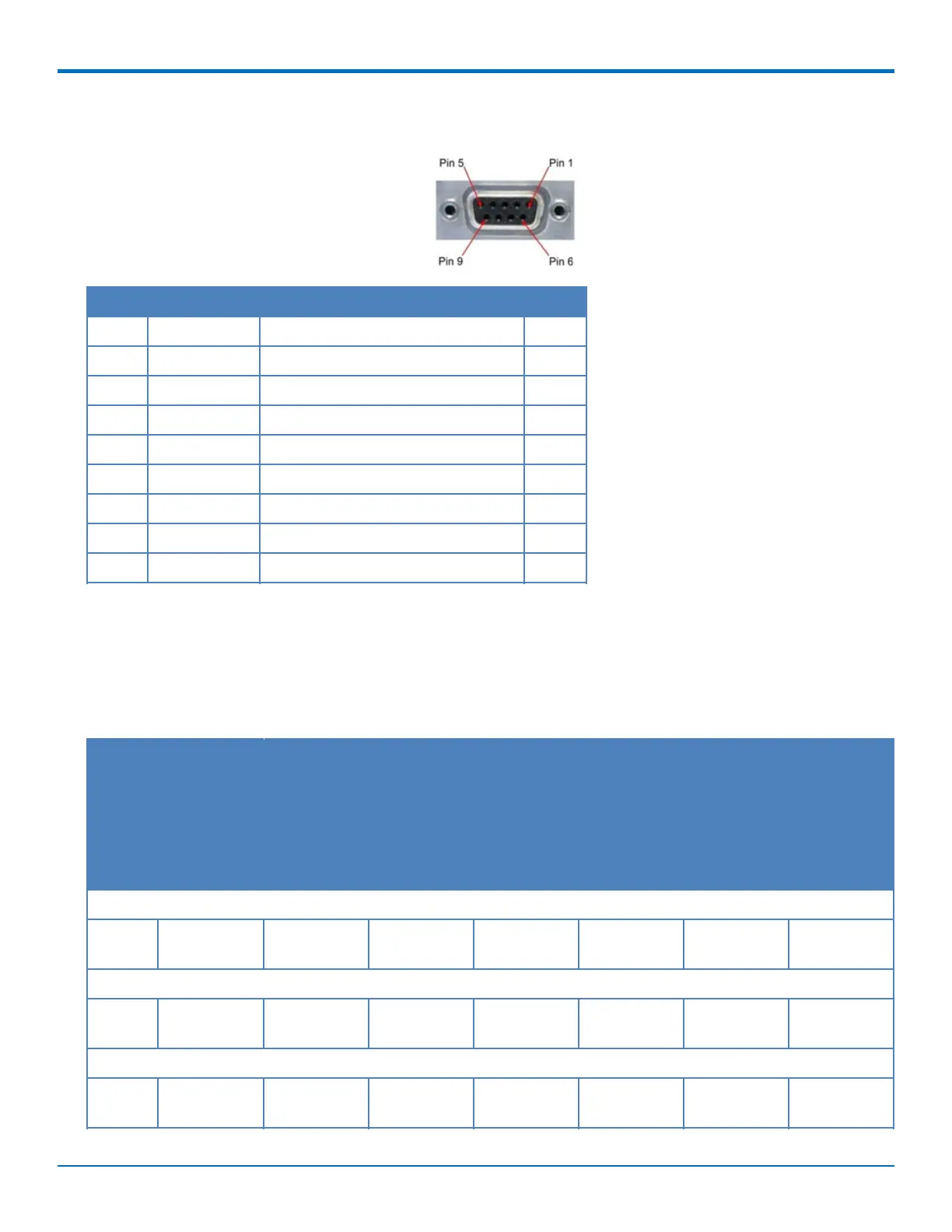

RS-232 9-Pin Female Connector
Pin Abbreviation Description In/Out
1 CD Carrier Detect O
2 RX Receive O
3 TX Transmit I
4 DTR Data Terminal Ready I
5 GND Ground --
6 DSR Data Set Ready O
7 RTS Request to Send I
8 CTS Clear to Send O
9 RI Ring Indicator O
Power Measurements
Multi-Tech Systems, Inc. recommends incorporating a 10% buffer into your power source when determining
product load.
Serial Model: MTC-LVW2-B01 Power Draw
Radio
Protocol
Sleep mode
current,
connected to
wireless
(amps)
Sleep mode
current,
connected to
live network,
active SIM
installed
(amps)
Cellular call
box
connection,
no data
(amps)
Average
measured
current
(amps) at
maximum
power
Average TX
pulse
amplitude
current
(amps)
Total inrush
charge, in
millicoulomb
s (mC)
Total inrush
charge
duration
during
power-up
(ms)
9 Volts
LTE 700
MHz
0.009 0.010 0.028 0.250 0.328 1.03 8.8
12 Volts
LTE 700
MHz
0.007 0.007 0.026 0.192 0.260 1.06 15.0
24 Volts
LTE 700
MHz
0.004 0.004 0.017 0.114 0.180 1.84 23.0
