Munire 6299 - Step 1: Assembly of Crib Sides

FACE / AVANT
INSIDE / INTÉRIEUR

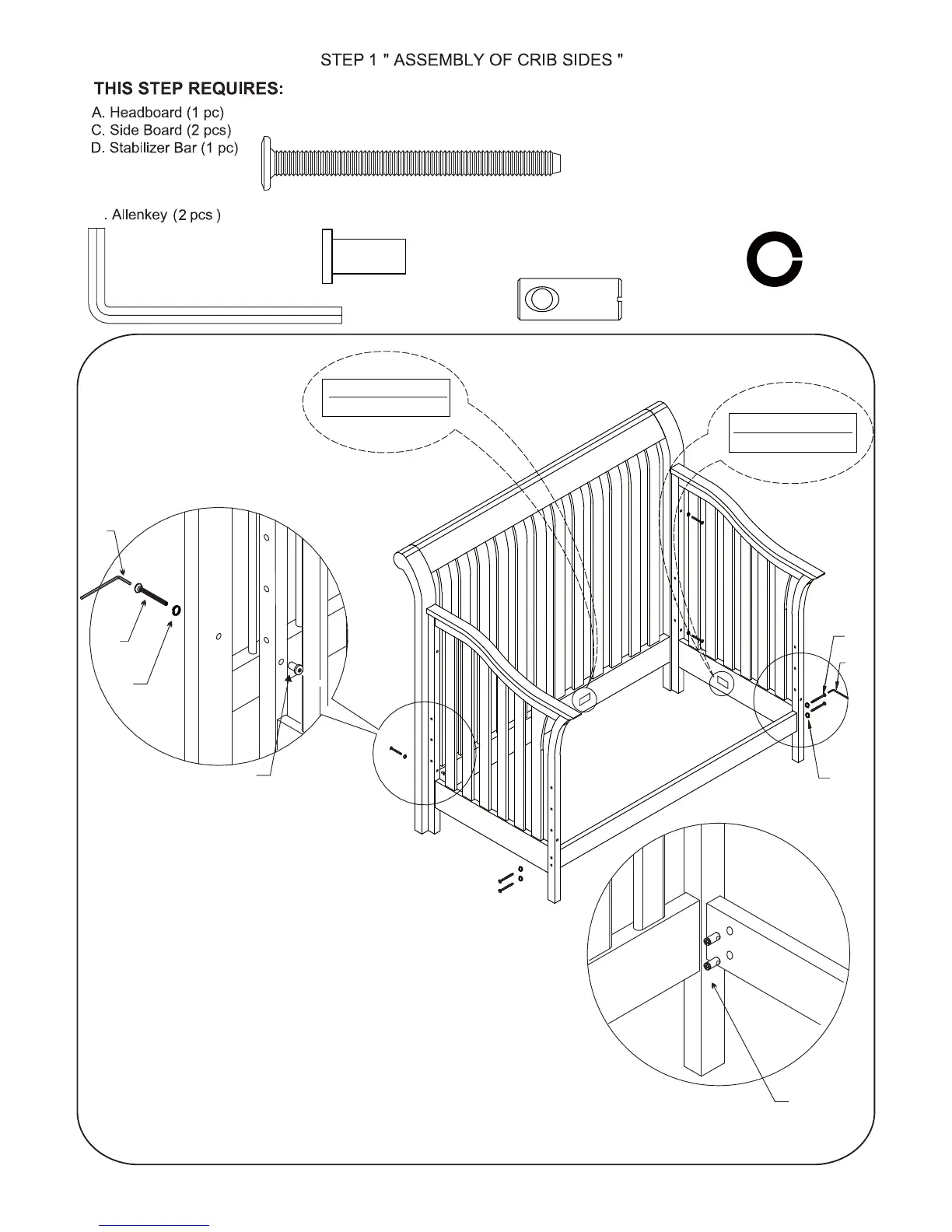

STEP 1.1
- Insert nut 3/4” (20 mm) (L) through the top and bottom holes in
side board from the outside.
- Insert allenbolt 2 3/4" (F) & spring washer (W)
through the top and bottom holes in headboard
and connect to the headboard. Hand tighten only!
- Repeat STEP 1.1 for other side board
(70 mm)
(70 mm)
STEP 1.2
- Insert barrel nut 1” (25mm) (M) into holes in stabilizer bar
- Connect stabilizer bar to the side board using (4 pcs) allenbolt 2 3/4” (F)
& spring washer (W)
- Tighten all bolts with allenkey (N)
STEP 1.1
(N)
(L)
(F)
(N)
(F)
(W)
(W)
M. Barrel Nut 1” (25 mm) (4 pcs)
F. Allenbolt 2 3/4 (70 mm) (8 pcs)”
N
L. Nut 3/4 (20 mm) (4 pcs)”
W. Spring Washer (8 pcs)
RIGHT / DROIT
INSIDE / INTÉRIEUR
(M)
STEP 1.2
02-A-SUCM01-00
