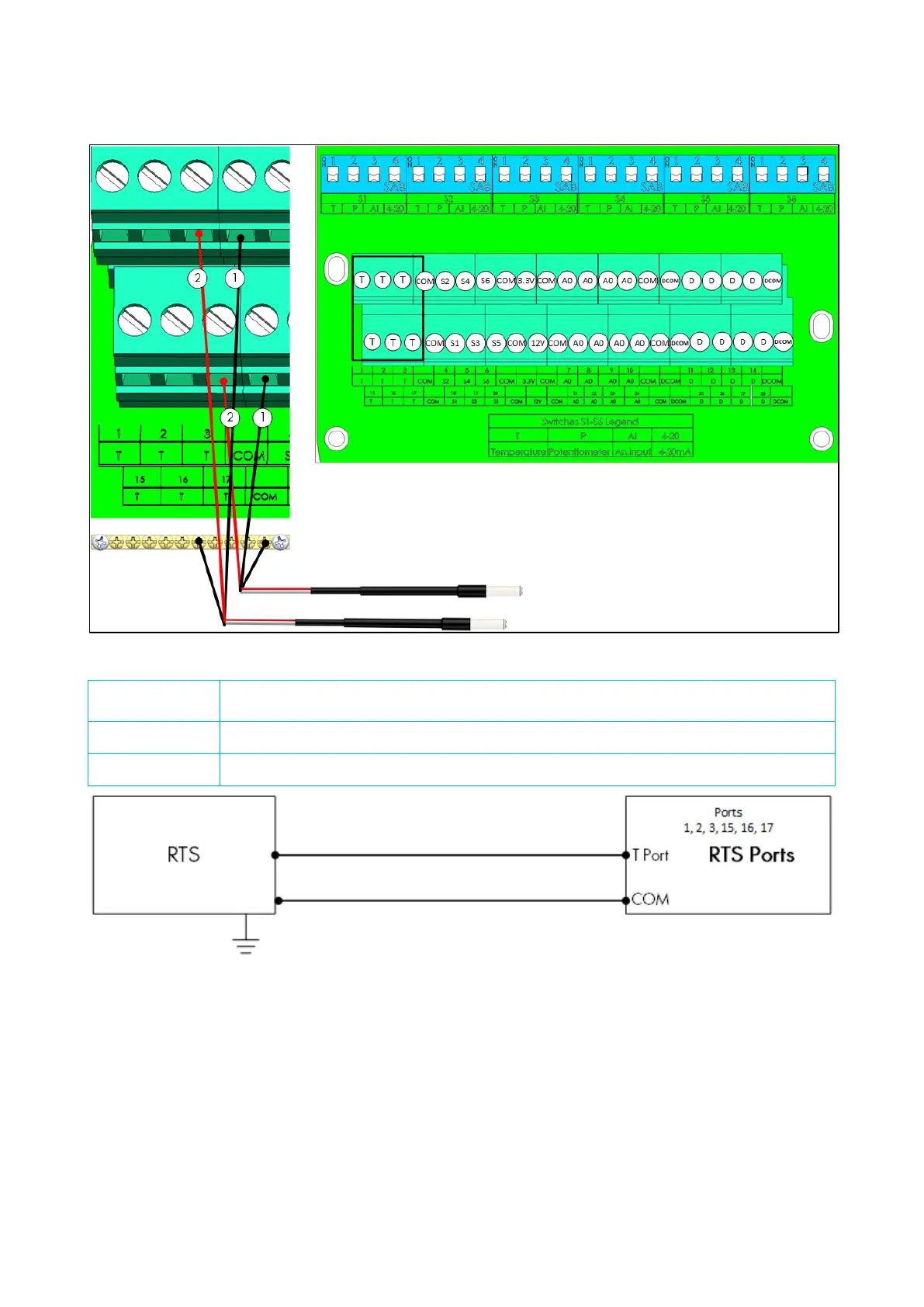

3.4.6.2
Temp
eratur
e Sensor Wir
ing
Figure
16
: RTS Wiring
Numbe
r
Function
1
COM port
(black wire)
2
T port (red wire)
Figure
17
: RT
S Wirin
g Sche
matic
•
Connect each RTS sensor to
a:
o
T port
o
COM port
o
Grounding strip!
24
26
Table of Contents
Table of Contents
5
Defining the CO2 Sensor
62
Defining the Humidity Sensor
63
Defining the Water Meter Sensor
64
Heating Devices
65
Defining the On/Off Heaters
65
Defining the Variable Heaters
66
Defining the Cooling Devices
67
Inlets, Tunnel Doors, Outlets
68
Defining the Inlets/Tunnel Doors
68
Defining the Outlet
69
Defining the same as Relays
70
Defining the same as Analog Ports
71
Defining the Timer
72
Defining the Auxiliary Input
73
Lighting Devices
74
Defining the On/Off Lights
74
Defining the Variable Lights
75
Defining the Light Sensor
76
Feeding Devices
76
Defining the Auger Relays
77
Defining the Auger Active Sensors
78
Defining the Feeder Relays
79
Defining the Feeder Active Sensors
80
Defining the Silos
80
Mapping the Silo Scales
81
Configuring the Silo Scale
82
Defining the Bird Scales
87
Mapping the Bird Scales
87
Calibrating the Bird Scales
89
Testing the Bird Scale
90
Defining the TRIO RPS
91
Define the Sensor
91
Static Pressure Calibration
92
Flock Management
95
Defining the General Settings
95
Defining the Preferences
95
Defining the Time/Date
96
Defining the House Setting
97
Flock Settings
97
Defining the Flock Settings Parameters
98
Defining House Modes
99
Adjusting the Bird Count
100
Tech Support Information
101
Temperature Settings
102
What Is the Temperature Curve
102
Configuring the Temperature Curve
103
Defining the Temperature Curve Parameters
103
Defining Temperature Curve Settings
104
Emergency Temperature Control
104
Introduction to Ventilation
105
Defining the Minimum and Maximum Ventilation
105
Defining the Fans/Ventilation Scheme
106
Basic Ventilation
106
Extra Ventilation
107
Tunnel Ventilation
107
Minimum and Maximum Ventilation
109
Building Structure Summary
109
Defining Basic Ventilation
110
Defining Dynamic Ventilation
111
Ventilation by Weight
113
How Does Ventilation by Weight Work
113
Defining the Ventilation by Weight Parameters
113
Adding a Curve
114
Levels of Ventilation
115
Configuring the Basic Ventilation Settings
115
Basic Ventilation
116
Defining Basic Ventilation
116
Fan Options
118
Minimum Ventilation Cycle
118
Fans (Efficiency Fan)
120
Fan Rotation
122
Inlet and Curtain Ventilation
123
Level Control
124
Static Pressure Control
125
Extra Ventilation
127
Introduction to Extra Ventilation
128
Defining Extra Ventilation
128
Defining the Air Quality Parameters
159
Defining the Air Quality Settings
160
Timers
162
Alarms
163
Defining the Alarm Parameters
163
Viewing the Alarms
164
Defining the Auxiliary Alarms
164
Sending a General Alarm
165
History
166
Climate and Air Quality
166
Alarms and Events
167
Water and Feed History
168
Devices History
169
Bird Weight History
169
Resetting, Saving and Loading Settings, Updating Software
171
Cold Start
171
Saving or Loading the Settings
172
Viewing the Log
172
Updating the Software
173
Appendix A: External Device Specifications
174
Appendix B: Service Manual
176
Maintenance
176
Trouble Shooting
177
Internet
177
Electronic Components
178
Spare Parts
179
Preliminary Information
179
TRIO 20 Container Spare Parts
180
TRIO 20 Door Card Spare Parts
182
TRIO 20 Main Container Spare Parts
184
Additional Options
187
Cards
188
Door Cards
188
Main Container Cards
191
Appendix C: Trio Expansion
193
