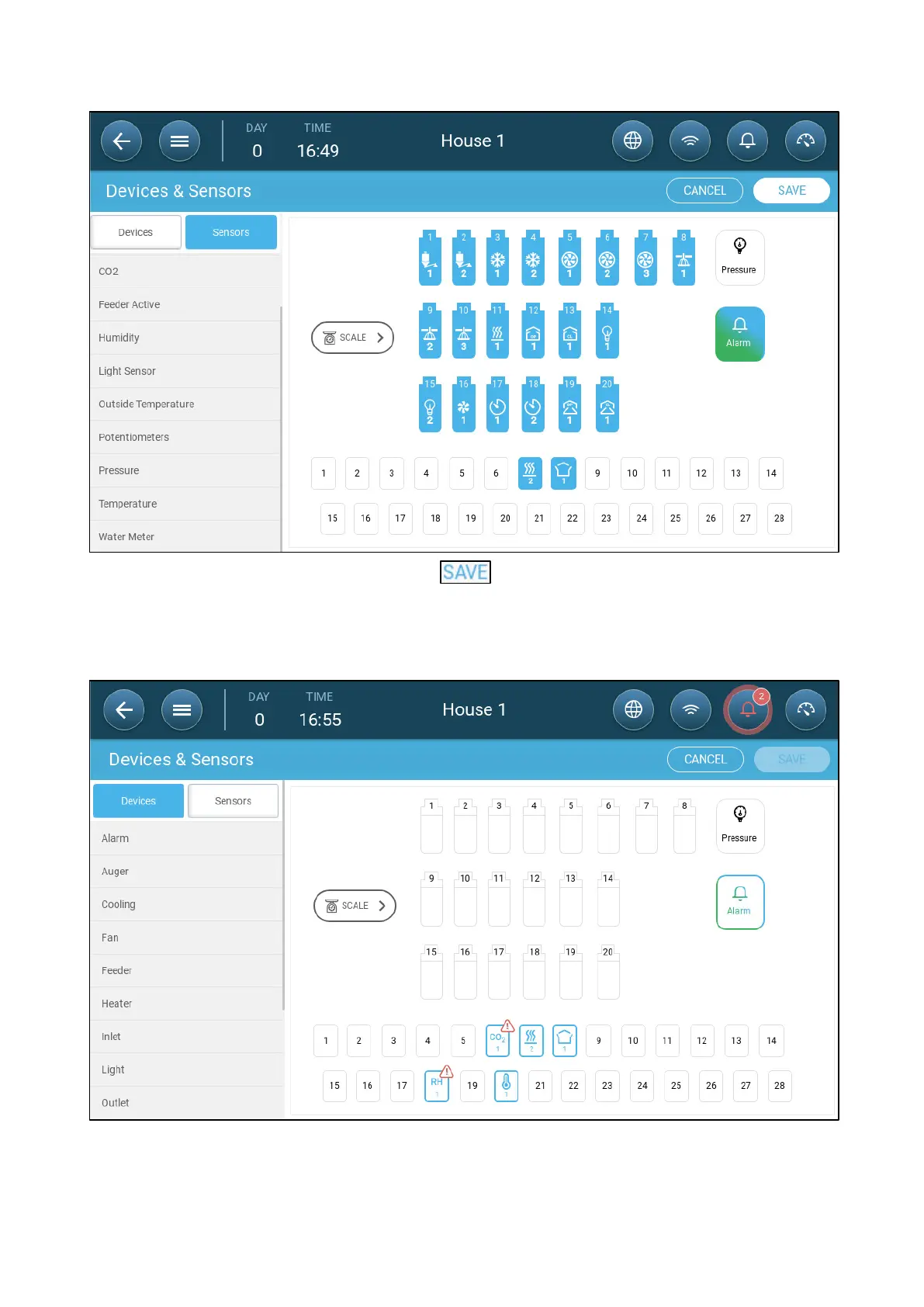

6. After mapping all installed devices, click .

NOTE

To un-map a device, click on the required device and hold the icon down.

NOTE

If you map a sensor that is not physically connected to the TRIO, an error symbol appears on the

designated analog port.
