Electrical WiringChapter 3
To operate the Munters Drive Off/Low/High with a control, slide the ‘ON’ switch, located on the circuit board
in the junction box, away from the ON position. Now wire an ‘ON’ command from the “COMMOM” terminal
to the input relay in the control and from the output of the relay to the ‘RUN’ terminal in the junction box. Then
connect the output of the control relay for ‘LOW’ to the ‘REDUCED FLOW’ in the junction box. See Figure 9C.
To Operate the Munters Drive variable with a 10-0V Signal. connect wires from the ‘0-10V IN’ and ‘0-10V
COMMON’ terminals in the Junction box to the 10-0V output in the control. See Figure 9D.

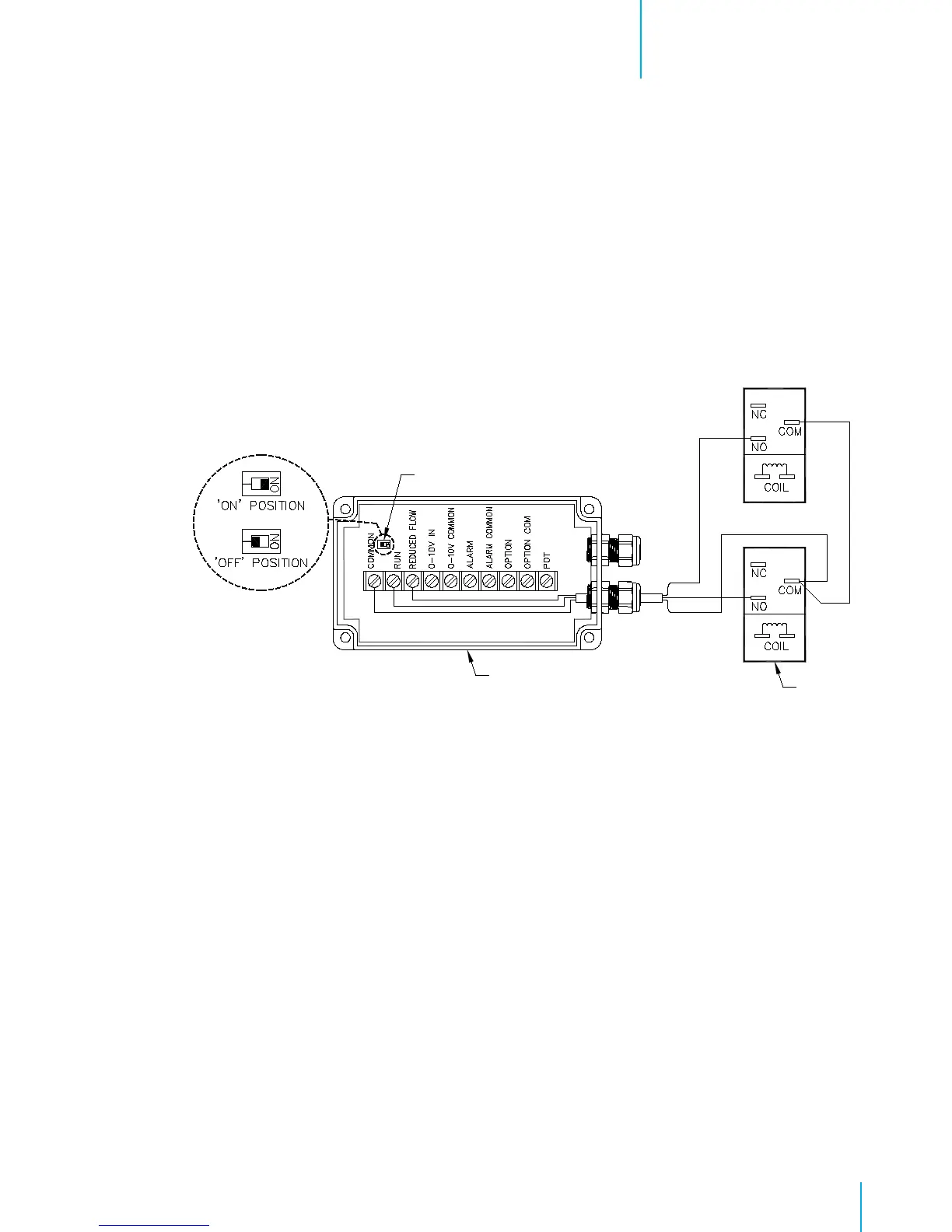

‘ON’ Switch
Junction Box
Control
Relay Box
Figure 9C
Off/Low/High Remotely
