Munters WF54 - 3 Electrical Wiring; Recommended Wire Routing

9
© Munters Corporation, March 2017
QM1224r3
3.1 Recommended Wire Routing
Electrical Wiring
3.
Option 1 -
Step 1

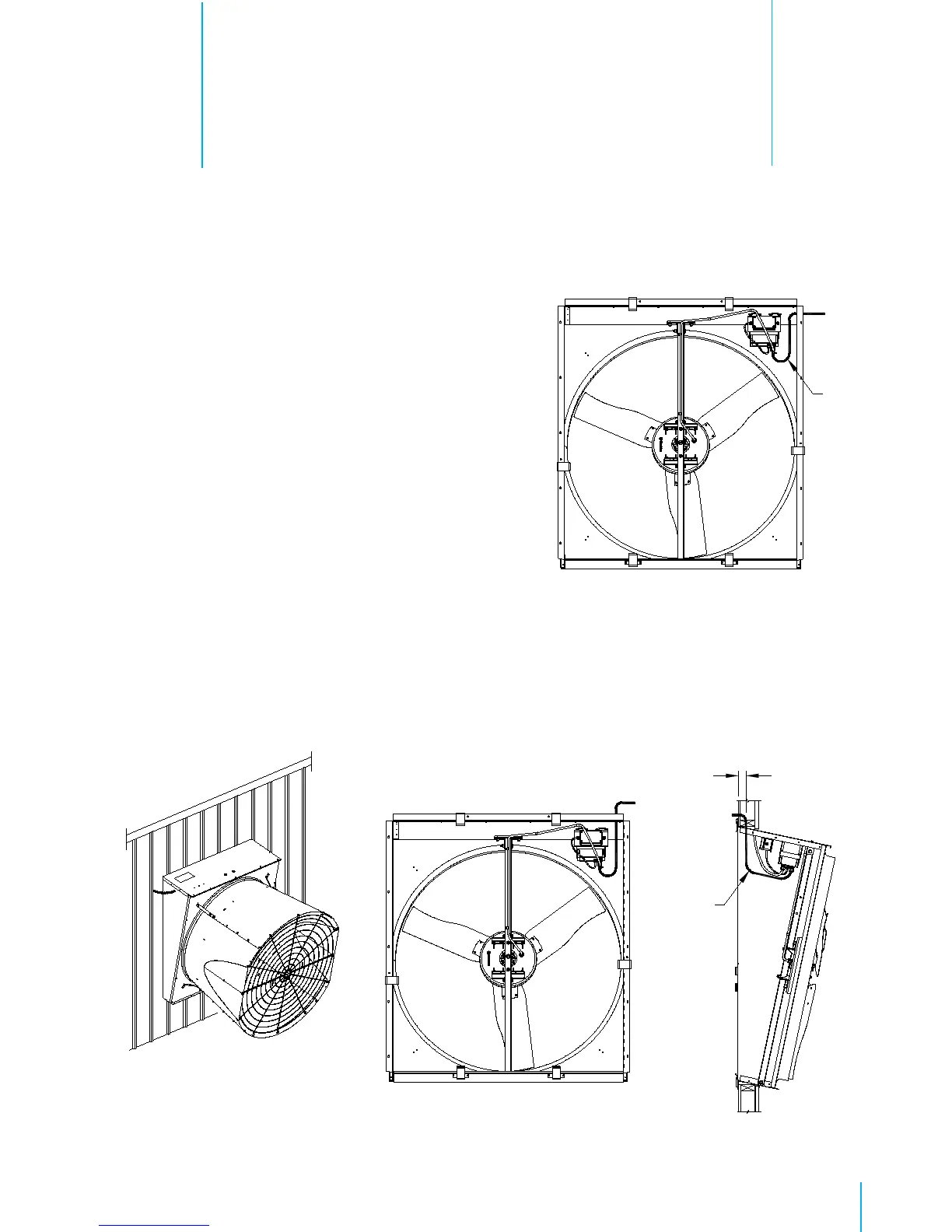

The Munters Drive fan comes with a coil of electrical
cables that is pre-wired to the motor. Find the end of
the cable and form a drip loop and then run the cable
through the side of the fan housing, through flexible
conduit and into building. See Figure 6A & 6B.
Step 2
Add flashing and/or caulk around completed housing
on exterior side of building wall.
Option 2 -
Step 1
The Munters Drive fan comes with a coil of electrical
cables that is pre-wired to the motor. Find the end of the cable and form a drip loop and then run the cable
through housing and frame into wall cavity and into the building. See Figure 7A & 7B.
Step 2
Add flashing and/or caulk around completed housing on exterior side of building wall.
Drip
Loop
Figure 6B
Figure 7A
Figure 7B
Drip
Loop
Drip
Loop
2”
