1.1 Parts List
Unpacking the Equipment
[A]
[B]
[C]
[D]
[E]
[F]
[G]
Each Crate includes:
1 – 54" Belt Drive Fan
4 – Cone Sections ( 2 side, 2 top/bottom)
4 – Support Brackets, galvanized
1 – Cone Guard
1 – Shutter
1 – Hardware Package HP1116 for GCX

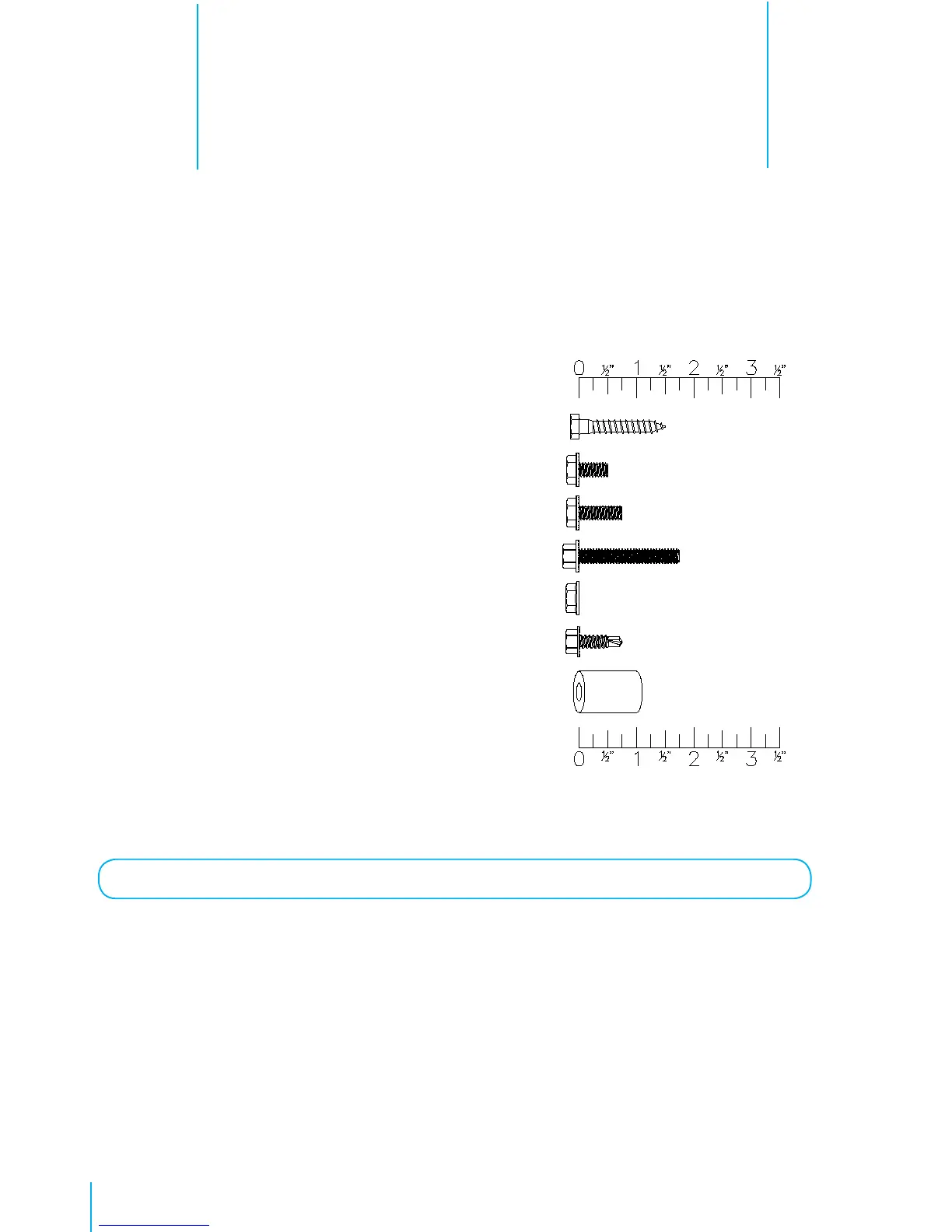

HP1116 for 54GCX
[A]…..16 - ¼” x 1½” Lag Screws, ZP
[B]…..26 - ¼” x ½” Flange Head Bolts, ZP
[C]…..4 - ¼” x ¾” Flange Head Bolts, ZP
[D]…..10 - ¼” x 1¾” Flange Head Bolts, ZP
[E]…..40 - ¼” Flange Nuts, ZP
[F]…..8 - ¼” x ¾” TEK Screws, ZP
[G].....10 - ¾” O.D. x 1”L. Spacers
1.
Discharge cone is designed to mount on fan outlet for increased airow and to support the
exhaust guard. A shutter or guard must be mounted on the fan inlet.
NOTE:
Before beginning installation, check the overall condition of the equipment. Remove packing materials, and examine all
components for signs of shipping damage. Any shipping damage is the customer’s responsibility and should be reported
immediately to your freight carrier. Fan is shipped complete with all accessories. Remove shutter, guard and cone sections
before proceeding with installation.
