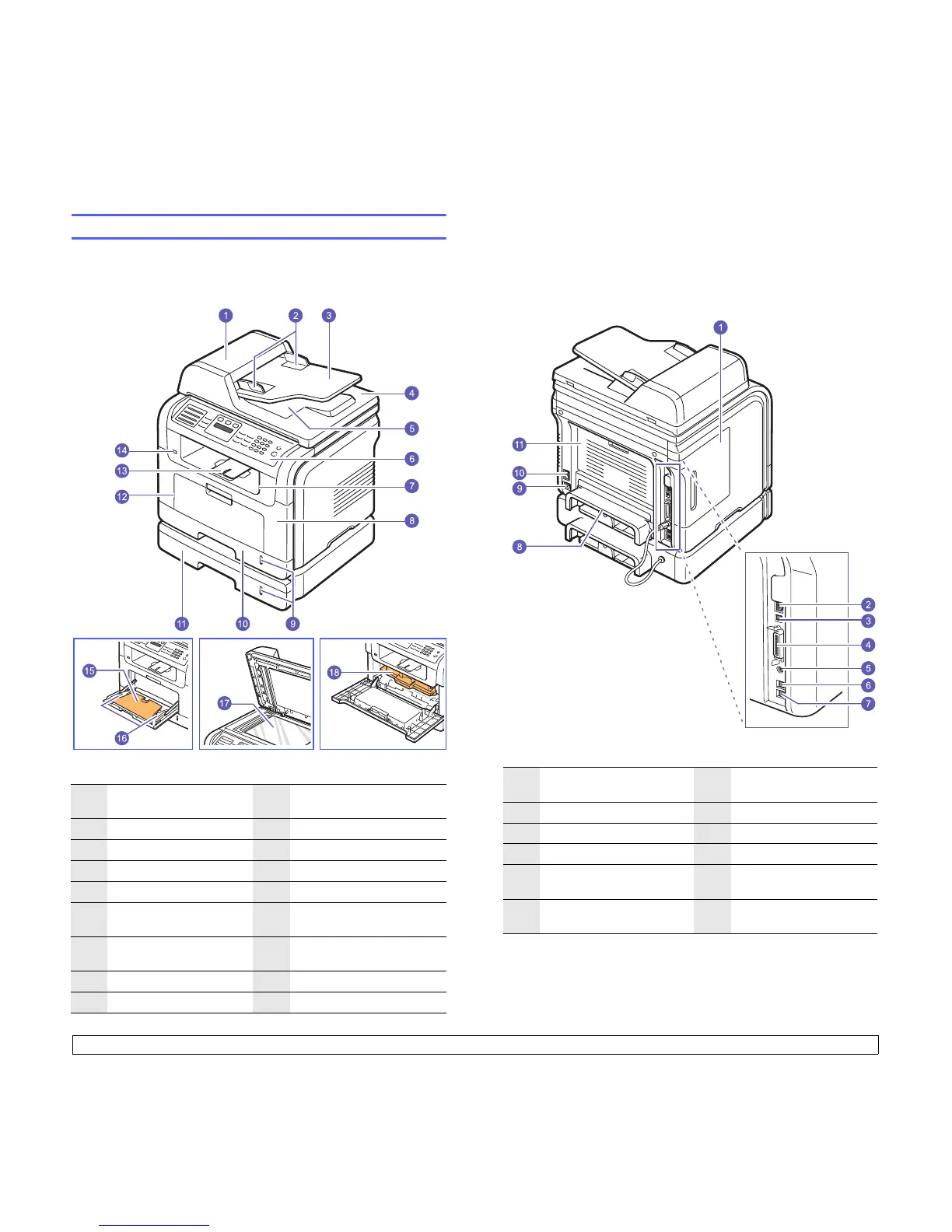

Printer overview
These are the main components of your machine:
Front view
1
ADF (automatic
document feeder)
1
1. Automatic document feeder is used as ADF in this user’s guide.
10
tray 1
2
document width guides
11
optional tray 2
3
document input tray
12
multi-purpose tray
4
scanner lid
13
output support
5
document output tray
14
USB memory port
6
control panel
15
multi-purpose tray
extension
7
output tray
16
multi-purpose tray paper
width guides
8
front cover
17
scanner glass
9
paper level indicator
18
toner cartridge
* The figure above shows an SCX-5530FN
with all available accessories.
Rear view
1
control board cover
7
extension telephone
socket
(EXT)
2
network port
8
duplex unit
a
3
USB port
9
power receptacle
4
parallel port
10
power switch
5
optional tray 2 cable
connector
11
rear cover
6
telephone line socket
(LINE)
a
* The figure above shows an SCX-5530FN
with all available accessories.
