Murphy PowerView PV780 Installation Manual

Wiring Information

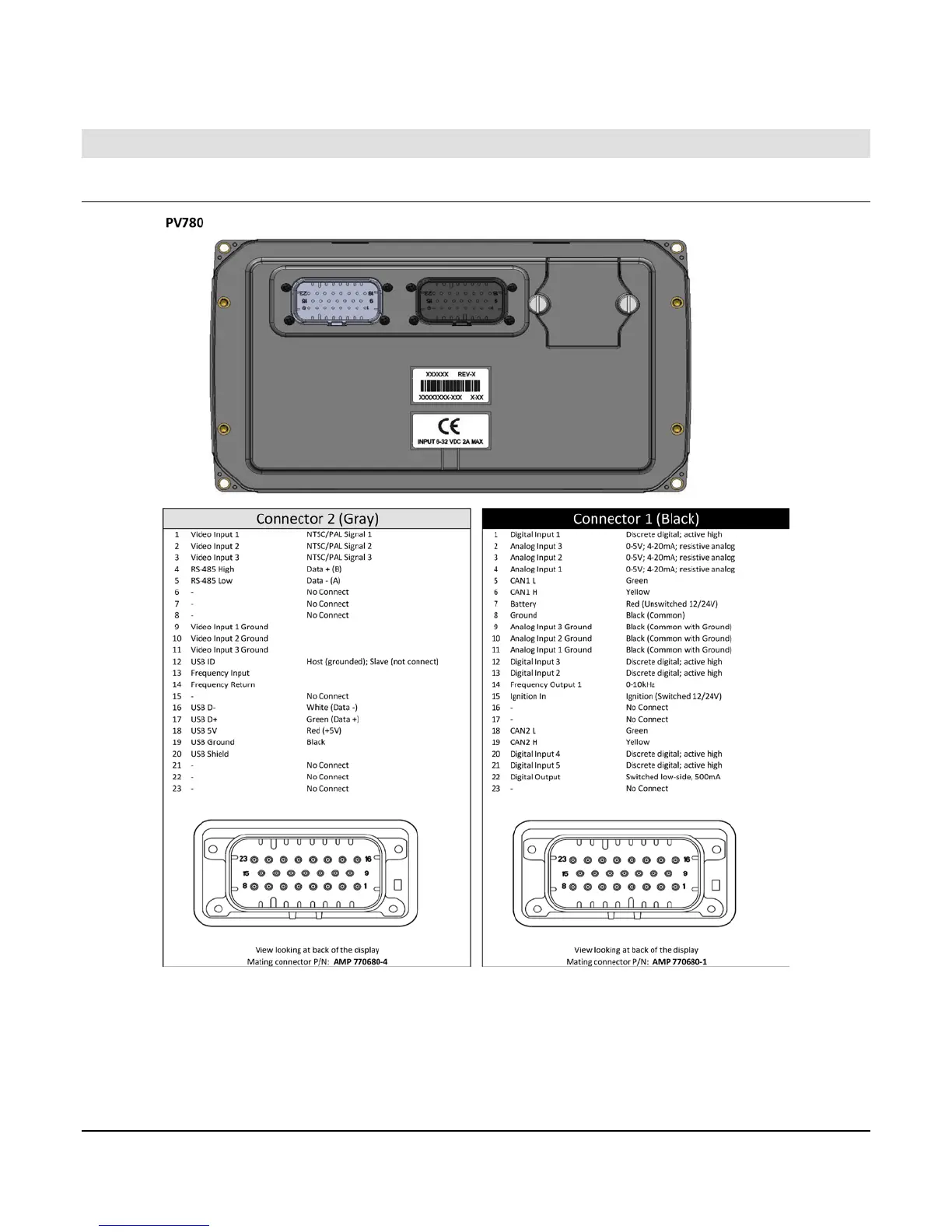

Pin Out Specifications
Signal Definitions
CAN: 3 ports according to CAN specification 2.; 1 port isolated according to NMEA 2000 USB
2.0 host Video input (optional): NTSC/PAL Inputs (3) 0-5 VDC analog inputs, (1) input
configurable to support measurement frequencies from 2 Hz - 10kHz values from 0-100% duty
cycle Output: Digital, capable of sinking 500mA.
Section 78 00-02-0860
2013-08-29 - 4 -

Murphy PowerView PV780 Specifications

General

Brand	Murphy
Model	PowerView PV780
Category	Monitor
Language	English
