OPERATION
ThrottleConlrol
Lever
Blade Rota_on
Cor_ol
Brake Pedal
U
Lever
Figure 5

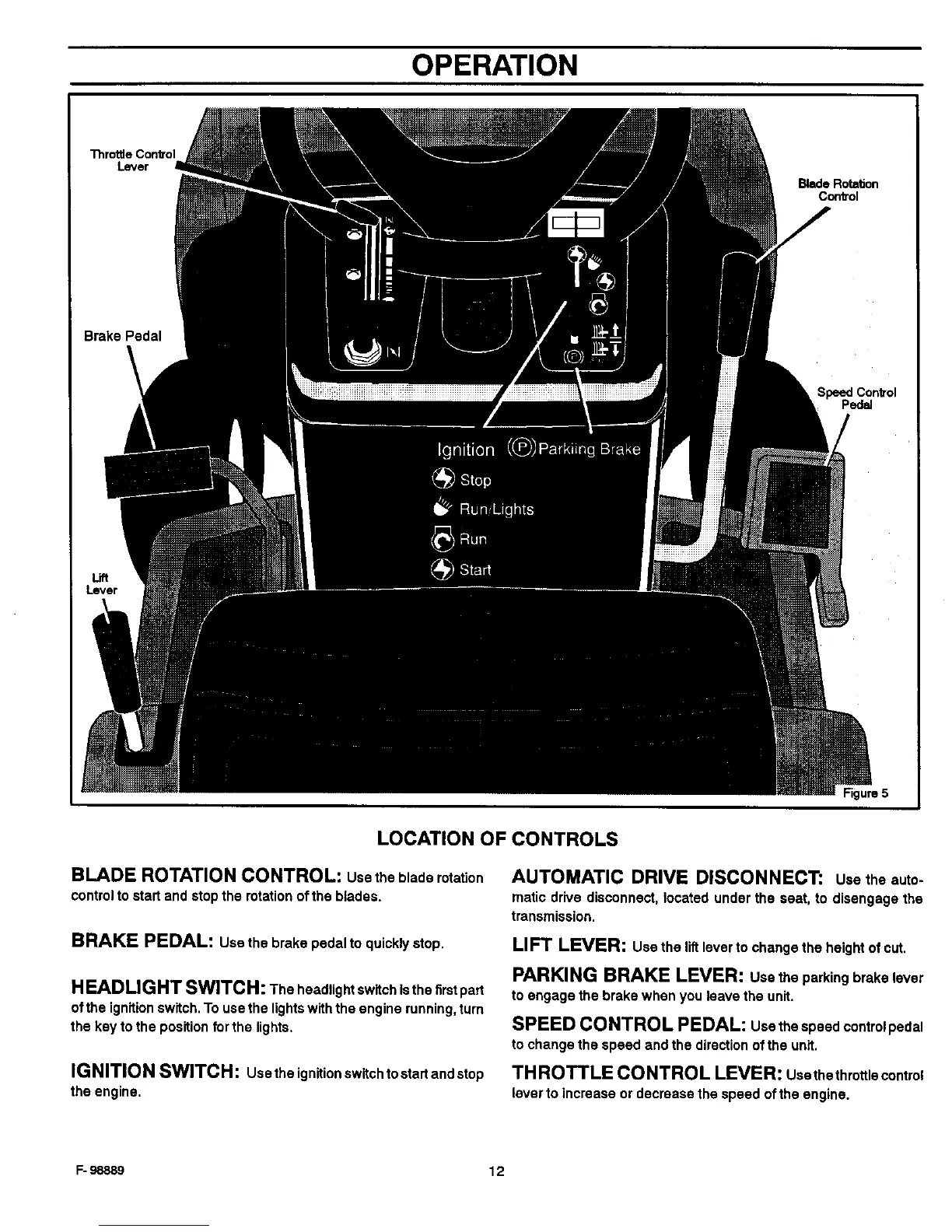

LOCATION OF CONTROLS
BLADE ROTATION CONTROL: usethebladerotation
control to start and stop the rotation of the blades.
BRAKE PEDAL: Use the brake pedal to quickly stop.
H EADLIG HT SWlTCH: The headlight switch isthe firstpart
of the ignition switch. To use the lightswith the engine running, tum
the key to the position for the lights.
IGNITION SWITCH: Usetheignitionswitchtostartandstop
the engine.
AUTOMATIC DRIVE DISCONNECT: usetheauto-
maticdrive disconnect, located under the seat, to disengage the
transmission.
LIFT LEVER: use the lift lever to change the height of cut.
PARKING BRAKE LEVER: usatheparkingbrake lever
to engage the brake when you leave the unit.
SPEED CONTROL PEDAL: usethe speed control pedal
to change the speed and the direction of the unit.
THROTTLE CONTROL LEVER: Usethethrottlecontrol
lever to increase or decrease the speed of the engine.
F- 98889 12
