MAINTENANCE
HOW TO REPLACE THE MOWER DRIVE BELT
1.
2.
3,
4.
5_
Remove the mower housing. See the instructions on =How To
Remove The Mower Housing'.
Pull the belt retainer away from the idler pulley and remove
the mower drive belt (Figure 18).
Pullthe belt retainer away from the right mandrel pulley and
remove the mower drive belt.
Pull the belt retainer away from the left mandrel pulley and
remove the mower drive belt.
NOTE: Replace the mower drive belt with en original
equipment belt from an authorized service center.
Install the new mower drive belt, Pull the belt retainer away
from the right mandrel pulley, Put the belt around the right
mandrel pulley.
6. Pull the belt retainer away from the left mandrel pulley. Put
the belt around the left mandrel pulley.
7. Pull the belt retainer away from the idler pulley. Put the flat
side of the mower drive belt around the idler pulley.
8. Make sure the _ side of the mower drive belt is against the
mandrel pulleys as shown.
9. Install the mower housing. See the instructions on "How To
Install The Mower Housing".
10. Beforeyou mow,checkthe bladerotationcontrol.See the in-
structionson =HowToAdjustThe BladeRotationControl'.

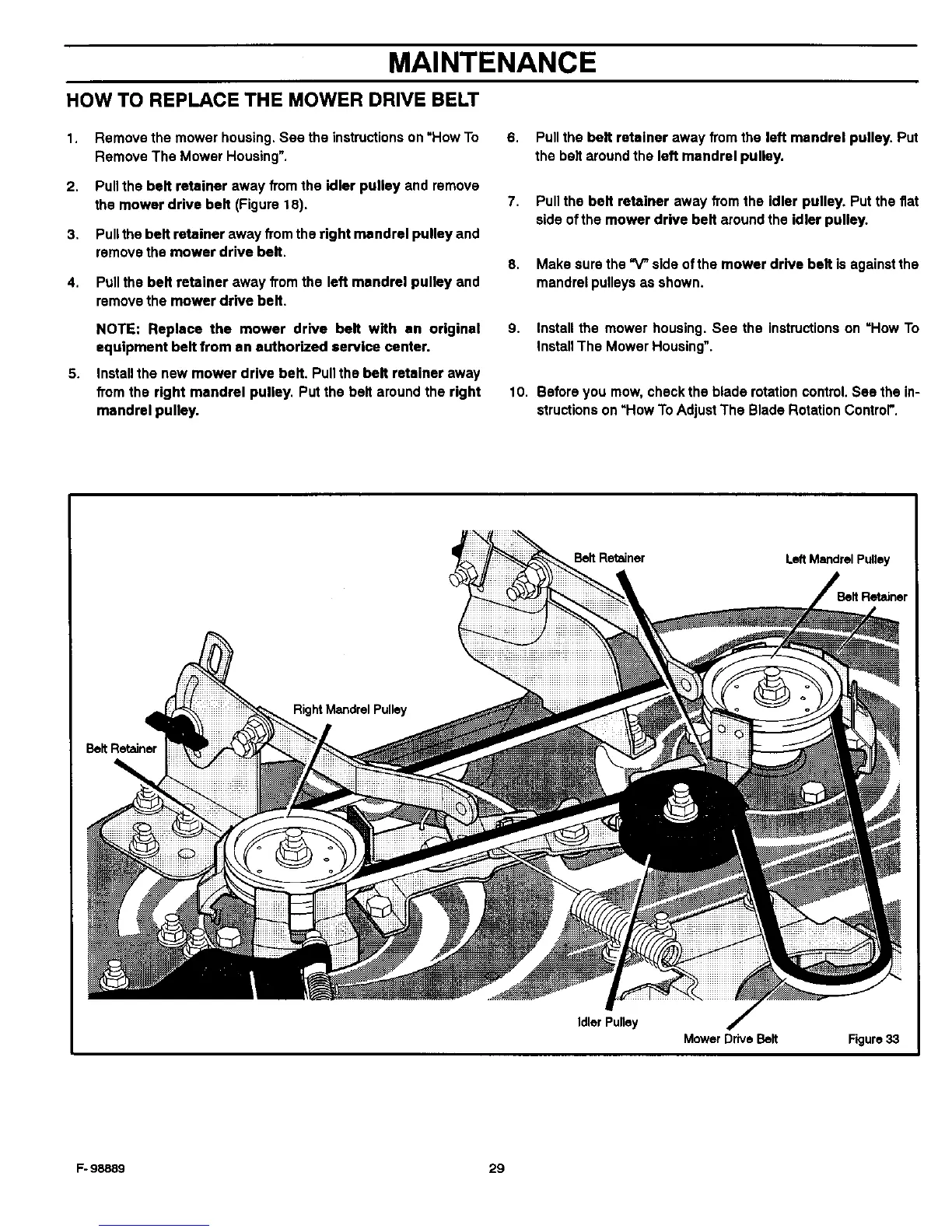

Belt Retainer
Left Mandrel Pulley
Belt Retainer
Belt Retainer
Idler Pulley
Mower Drive Belt Figure 33
F- 98889 29
