Frame
- 47 -
G

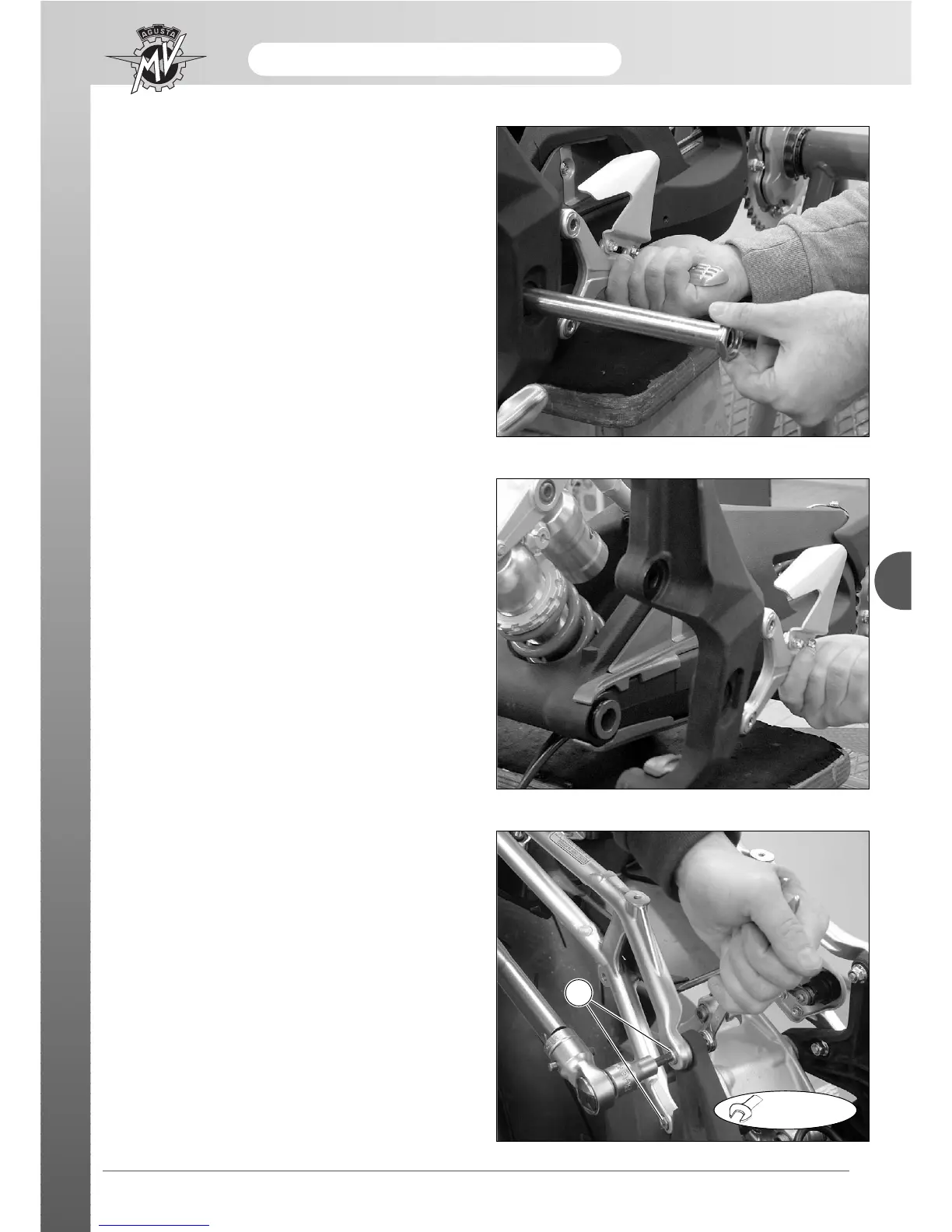

Remove the fork pivot spindle from the left side of the
motorcycle.
Remove the left frame plate.
REAR FRAME UNIT ASSEMBLY
To assemble the rear sub-frame unit to the motorcycle,
proceed in the reverse order of removal. Tighten the
four fixing screws (1), two on each side, to the pre-
scribed torque pressure.
Torque pressure: 24 ÷ 28 N·m
(See page 39).
24÷28 N•m
1
