MW MOUNTS Large Full Motion - Final Adjustments and Leveling; Securing Monitor Plate to Arm Assembly; Adjusting Tilt Tension and Level

P11
B
Secure Acorn Nut
and Washer on
Monitor Plate to
Arm Assembly
(snug tension only)
M6 Washer
M6 Acorn Nut

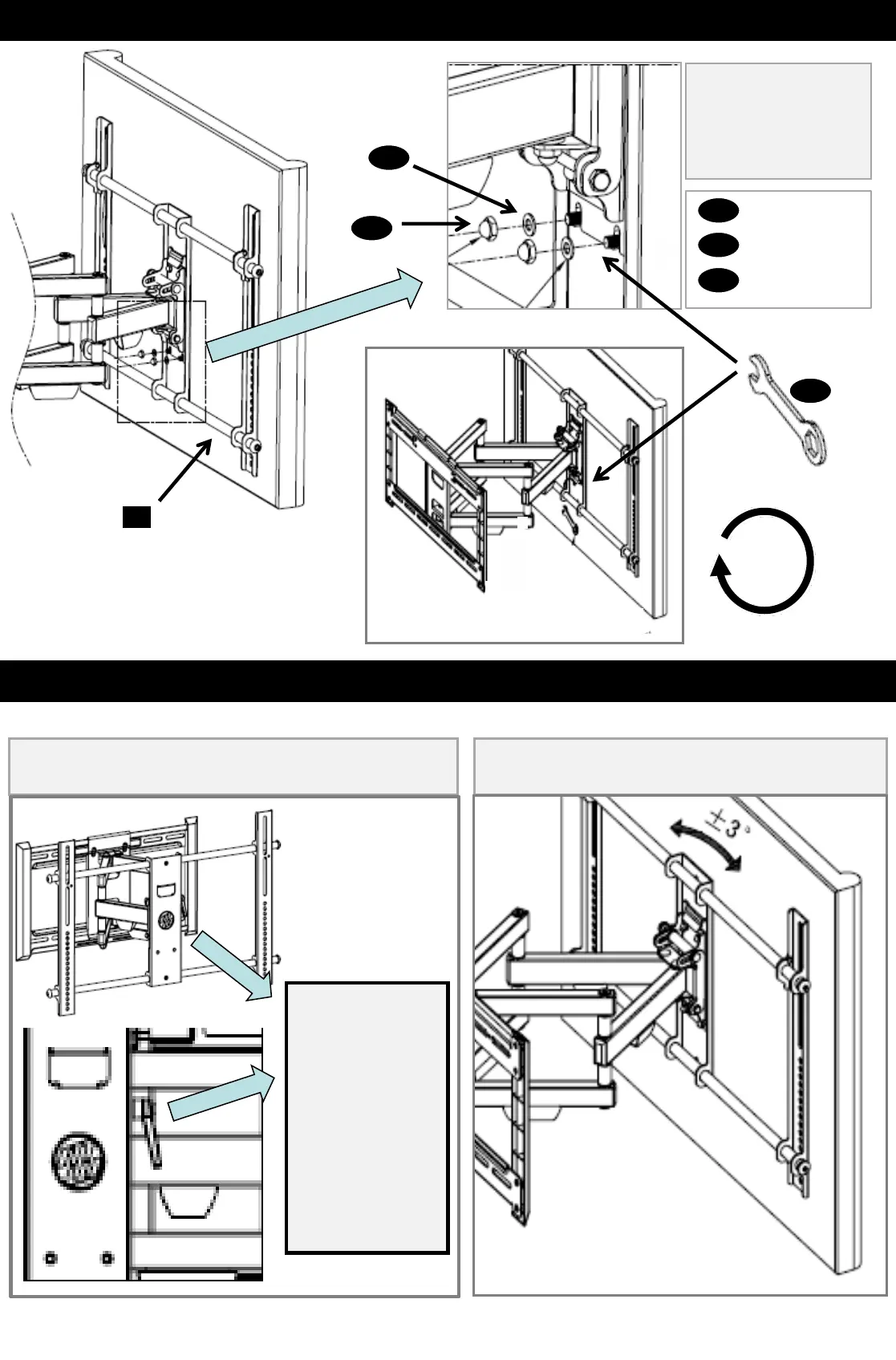

SECURE MONITOR PLATE TO ARM ASSEMBY
M6 Wrench
X2
ADJUST TILT TENSION/ POST INSTALLATION LEVEL
Adjust tilt mechanism tension with ratchet handle
lever
Built-in level feature for post installation
correction
Rotate ratchet
handle lever
clockwise for
tensioning tilt
mechanism.
For additional
tension pull
lever laterally,
rotate counter
clock wise and
repeat and
repeat tension
A3
A4
A2
A3
A4
A2
