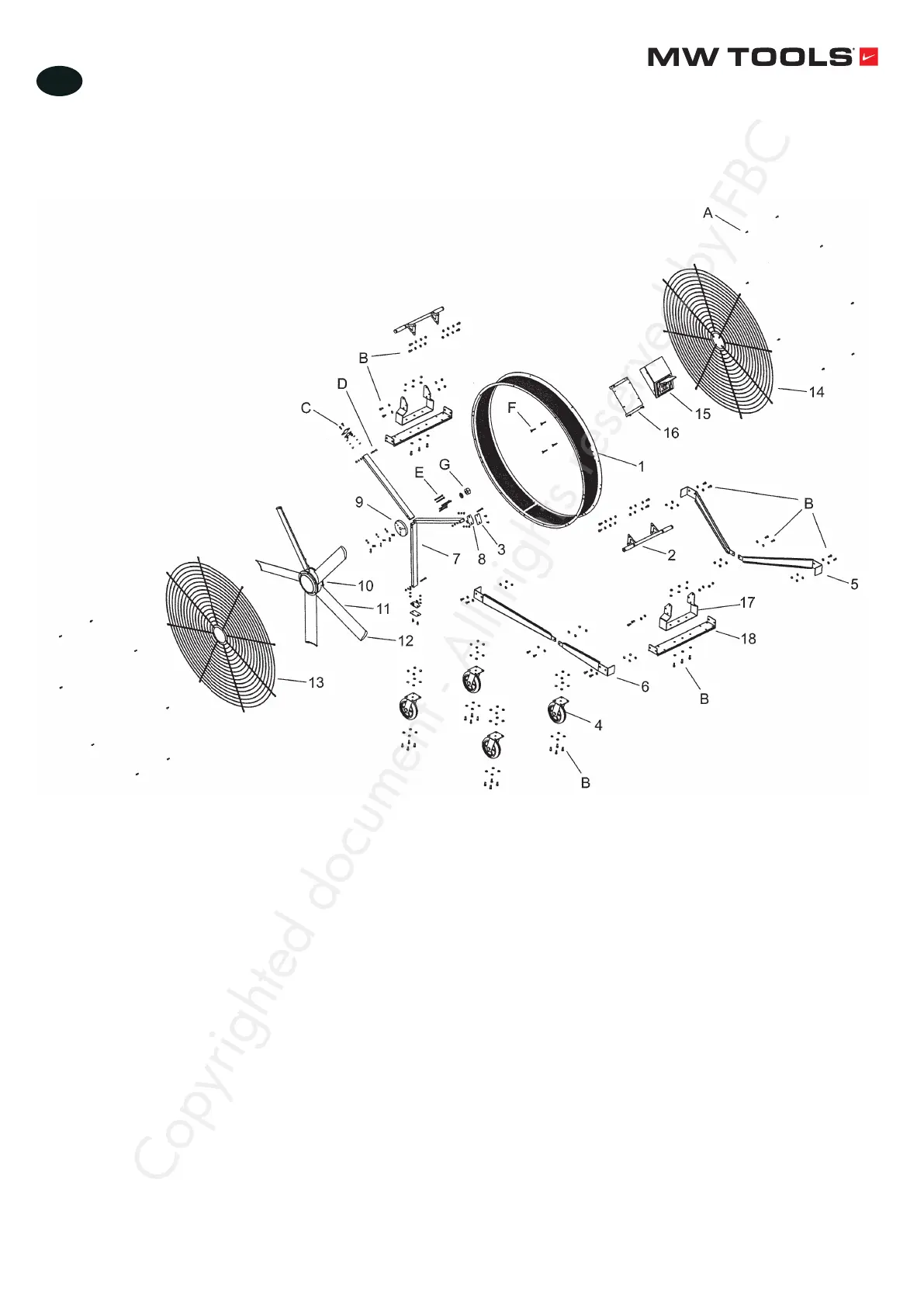

3 Name of each part of the fan
1. Fan outside the cylinder
2. Handle
3. Fixed cushion plate
4. Wheel
5. Protective plate A
6. Protective plate B
7. Fixed square tube
8. Square tube xed folding plate
9. Fan shaft link sleeve
10. Electrical components
11. Fan blade
12. Wind deector
13. Before the net
14. After the net
15. Control box components
16. Control box plate
17. Barrel bracket
18. Slotted plate
A. Socket head bolt M6x20
B. Outside hexagonal bolt M10x25
C. Outside hexagonal bolt M8x20
D. Outside hexagonal bolt M8x70
E. Socket head bolt M8x75
F. Outside hexagonal bolt M6x15
G. Nut M20x1,5
