MX A104 - Page 14

Y
X
Y
X
1
2
3
1
A
B
12
Subject to modications

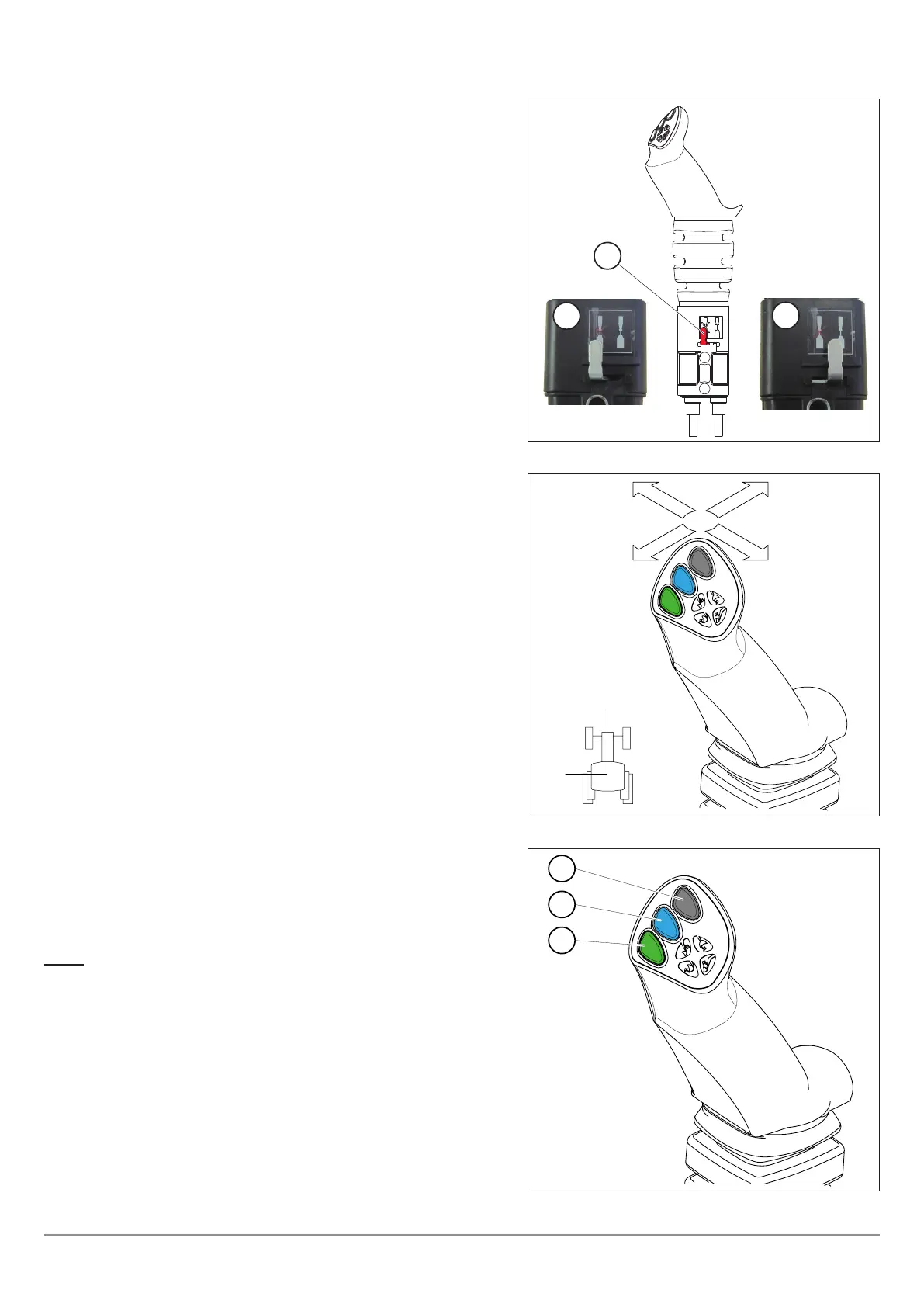

5.3 Control with MX PROPILOT control valve
5.3.1 Safety
To prevent any unwanted control of the loader, the PROPILOT
monolever can be locked.
Move the unlocking lever (1).
— (A): released position.
— (B): locked position.
5.3.2 Movements
First function: along "Y" axis
— Forwards = loader lowered
(Double action of the hydraulic ram).
— Forwards after notch = oating position
(Single action of the hydraulic ram).
— Backwards = loader raised.
Second function: along "X" axis
— To the left = implement crowding.
— To the right = implement dumping.
3rd function: along "X" axis
— Button (1) + crowding or dumping movement.
Note:
Button (2) and (3) not used.
