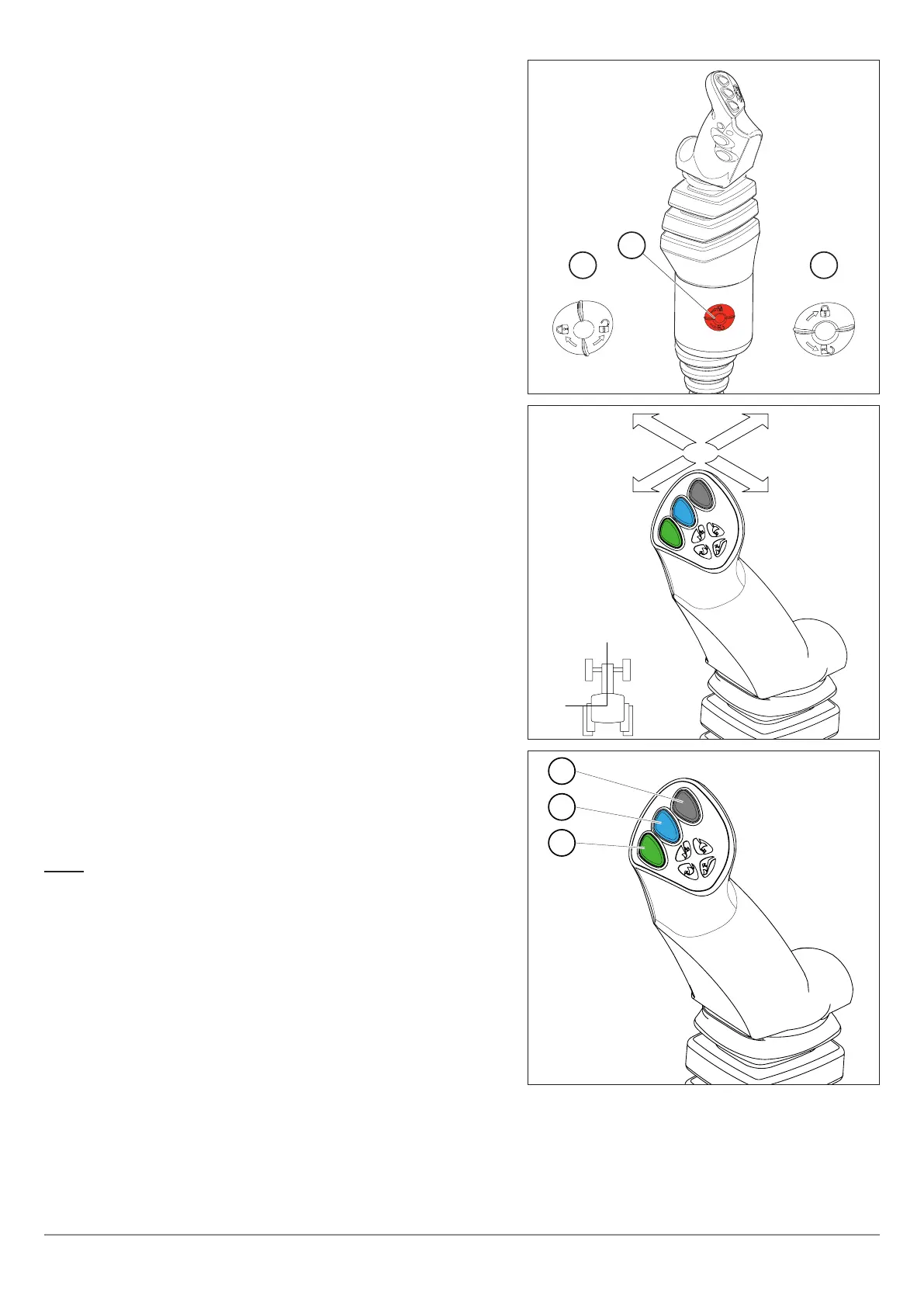

5.4 Control with MX FLEXPILOT control valve

5.4.1 Safety

To prevent any unwanted control of the loader, the FLEXPILOT

monolever can be locked.

Turn the isolating thumbwheel (1):

— (A): released position.

— (B): locked position.

5.4.2 Movements

First function: along "Y" axis

— Forwards = loader lowered

(Double action of the hydraulic ram).

— Forwards after notch = oating position

(Single action of the hydraulic ram).

— Backwards = loader raised.

Second function: along "X" axis

— To the left = implement crowding.

— To the right = implement dumping.

3rd function: along "X" axis

— Button (1) + crowding or dumping movement.

Note:

Button (2) and (3) not used.

5.5 Control with MX MX e-PILOT or e-PILOT S control valve

See specic e-PILOT or e-PILOT S manual.
