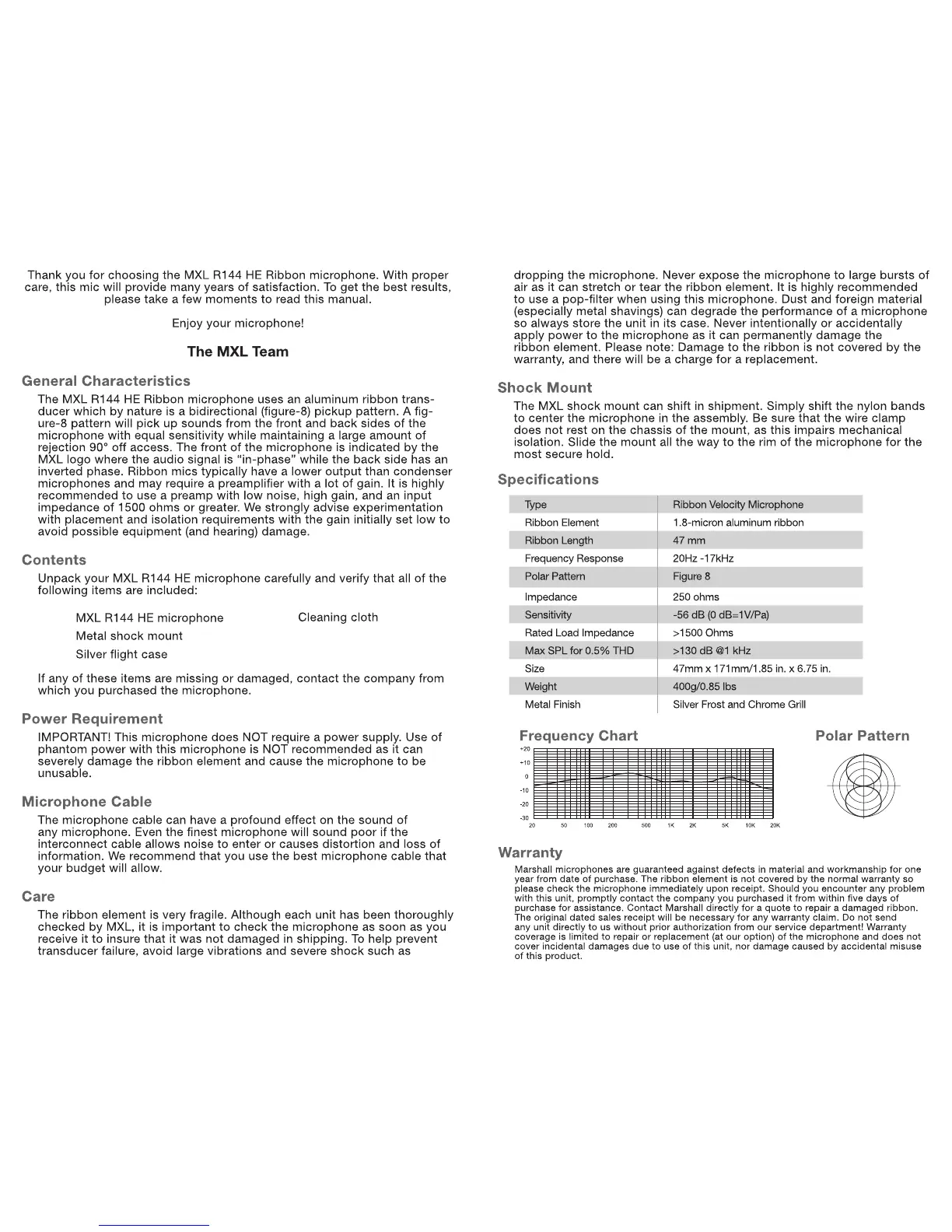

Type Ribbon Velocity Microphone
Ribbon Element 1.8-micron aluminum ribbon
Ribbon Length 47 mm
Frequency Response 20Hz -17kHz
Polar Pattern Figure 8
Impedance 250 ohms
Sensitivity -56 dB (0 dB=1V/Pa)
Rated Load Impedance >1500 Ohms
Max SPL for 0.5% THD >130 dB @1 kHz
Size 47mm x 171mm/1.85 in. x 6.75 in.
Weight 400g/0.85 lbs
Metal Finish Silver Frost and Chrome Grill
0
90270
180
