Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.5 Reassembly
5-55
(400) Tightening Lock Nut

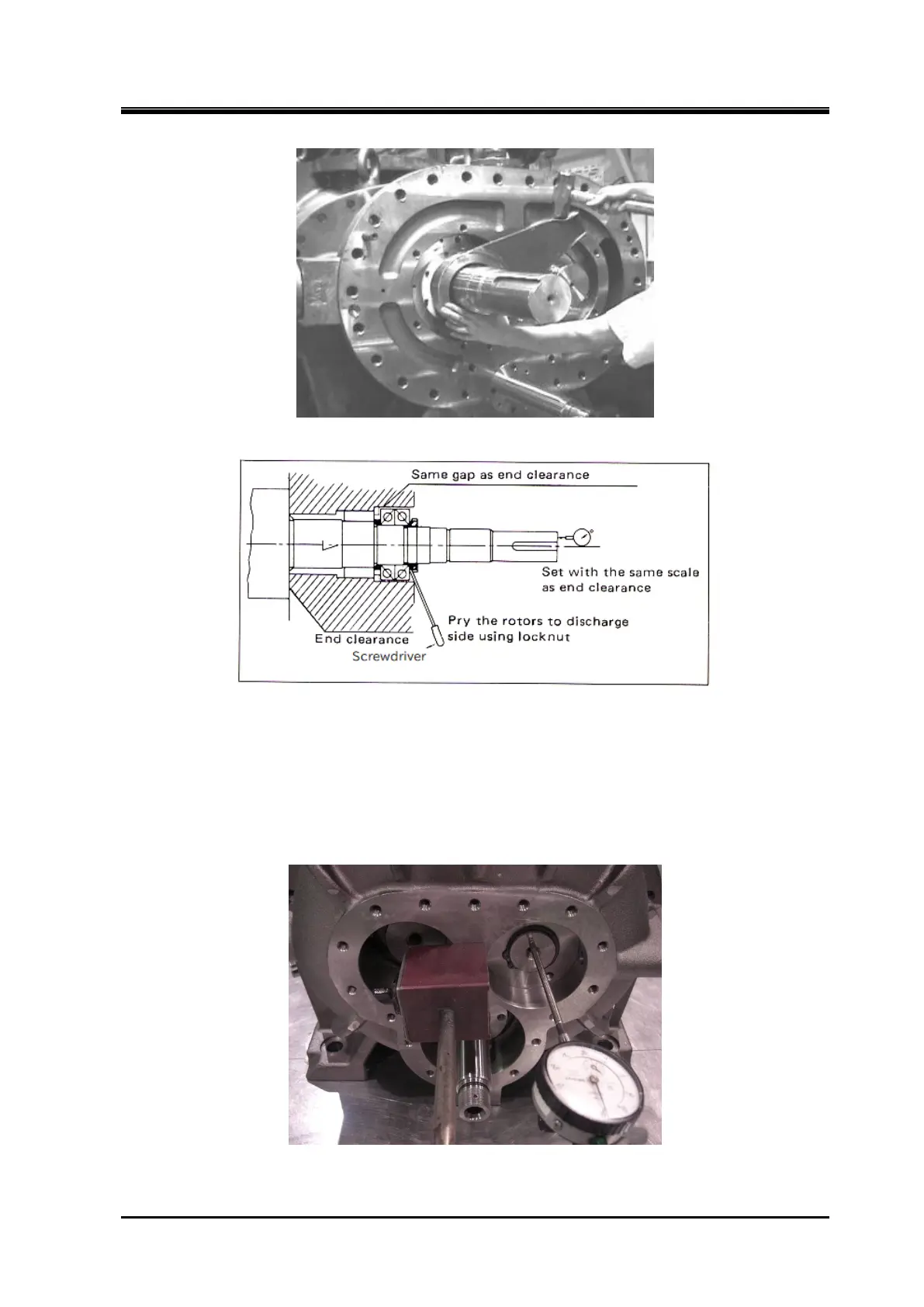

Figure 5-23 Thrust adjustment
g) Set the end clearance of the F rotor in the same way. Note that the screwdriver is pushed in as
shown in Figure 5-23 to position the F-rotor on the discharge side.
h)
Install the thrust bearing gland and tightening bolt. Tighten the bolts with the torque values
shown in the table "Tightening torque".
End Clearance Adjustment
To Next Page
