Chapter 7 Related Documents
UD-series Screw Compressor 7.1 Assembly Sectional Views
7-5

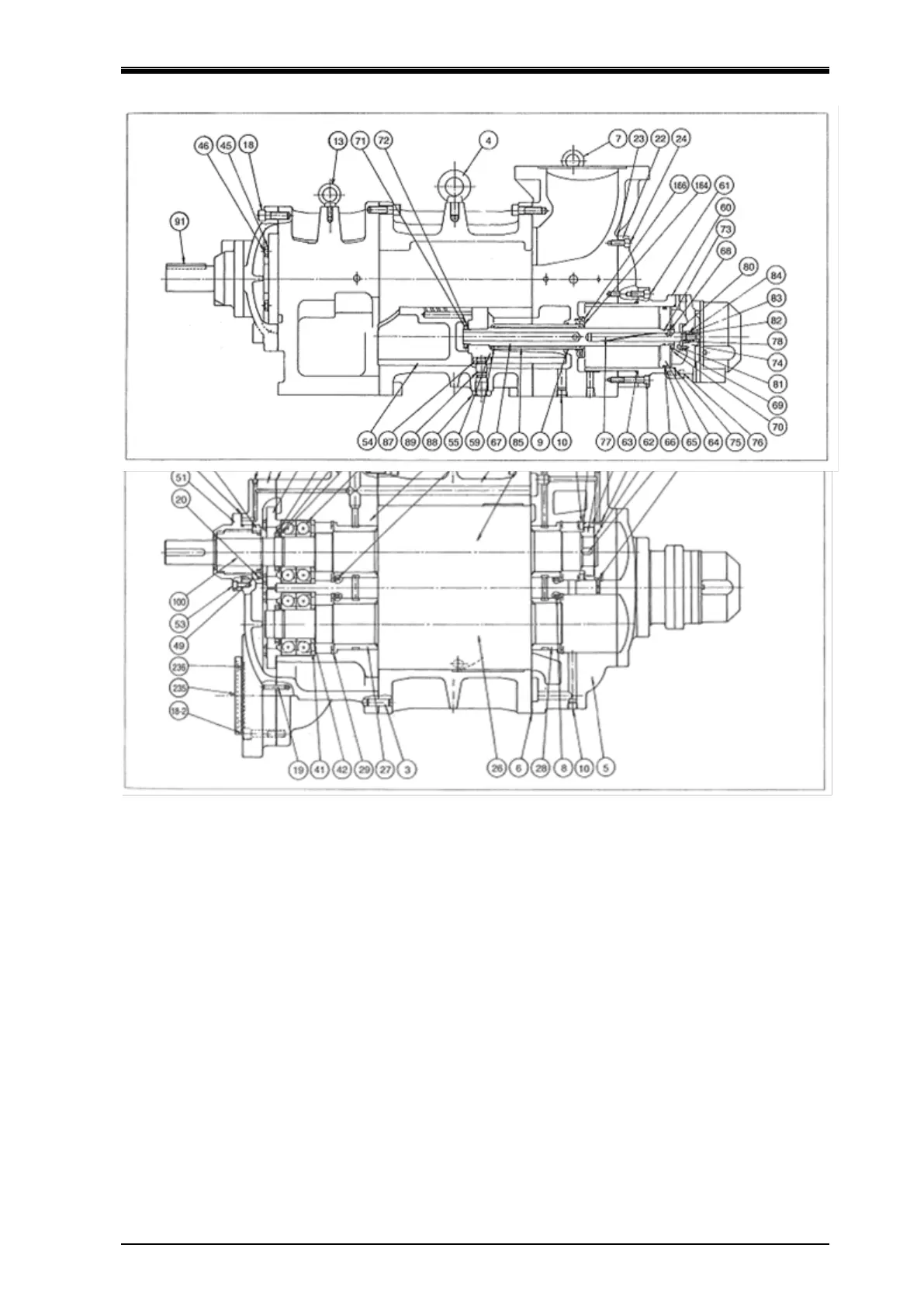

Figure 7-5 Sectional View (125 to 250*UD model)
