mycom 200VLD User Manual

2205Q2JE-HO-S6-N_2020.01.
Chapter 1 Safety
SCV-series Screw Compressors 1.3 Residual Risks
1-8

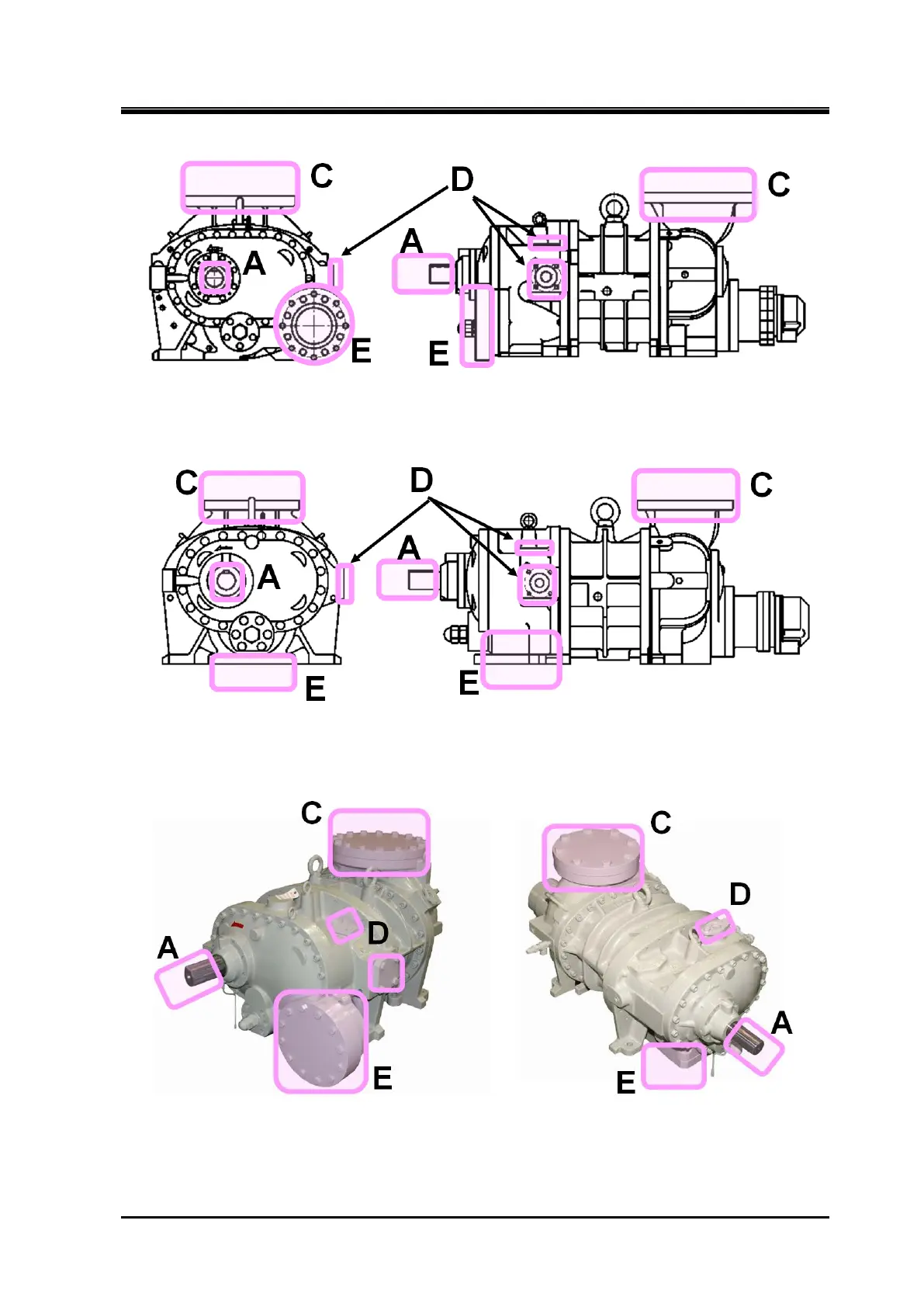

Figure 1-1 Hazardous Sources
(Compressor: V*D type i.e. discharge port facing sideways)
Figure 1-2 Hazardous Sources
(Compressor: V*G type i.e. discharge port facing down)
Figure 1-3 Hazardous Sources Figure 1-4 Hazardous Sources
(Compressor: V*D type) (Compressor: V*G type)
