Chapter 2 Configuration and Specifications of Compressor
Compound 2-stage Screw Compressor 2016**C 2.3 Compressor Specifications
2-4
2.3.3 Outer Dimensions

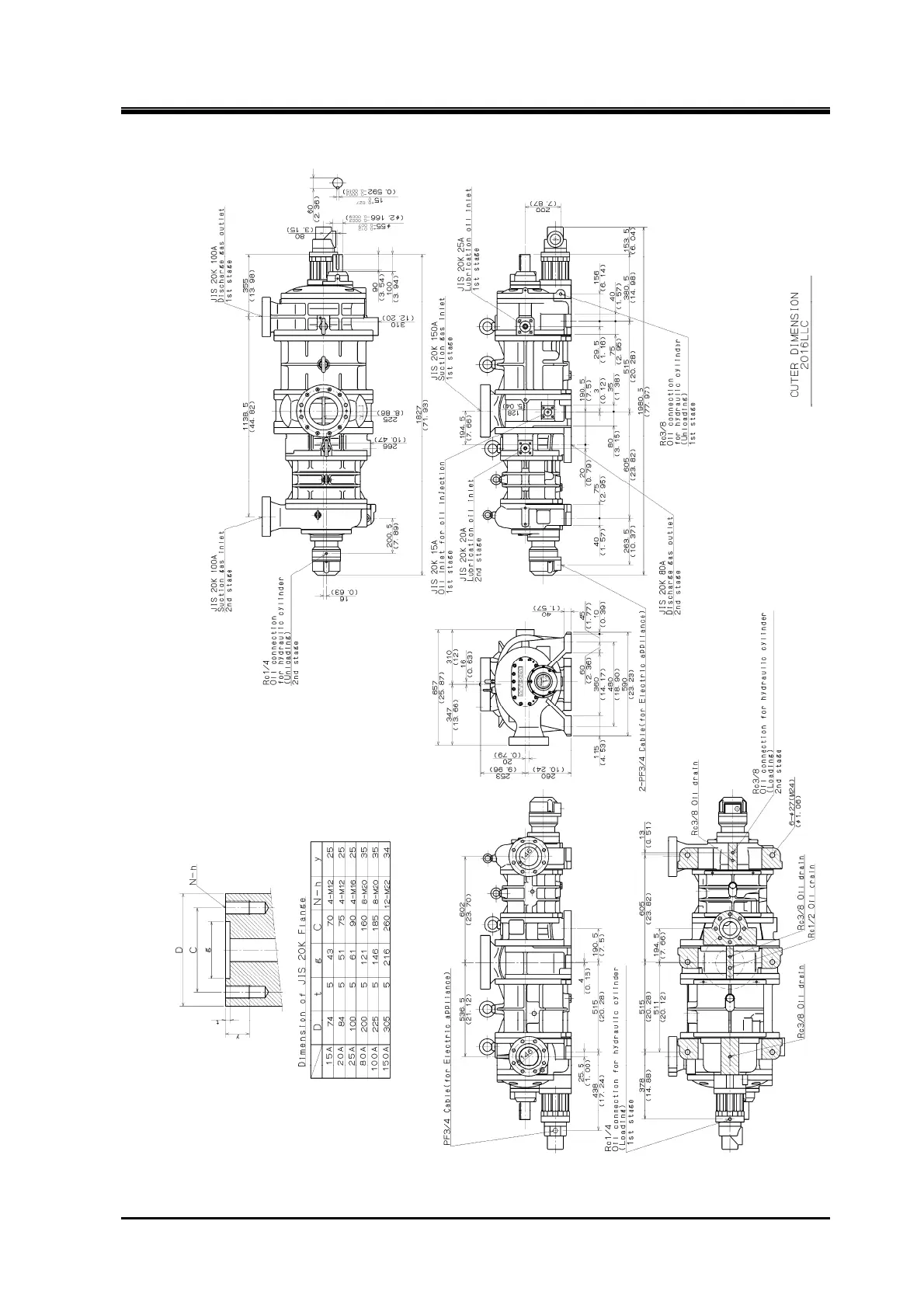

Figure 2-1 Outer Dimensions 2016LLC
