2 Structure and Specifications of the Compressor
Screw Compressor J-series 2.4 Structure of the Compressor
2-21

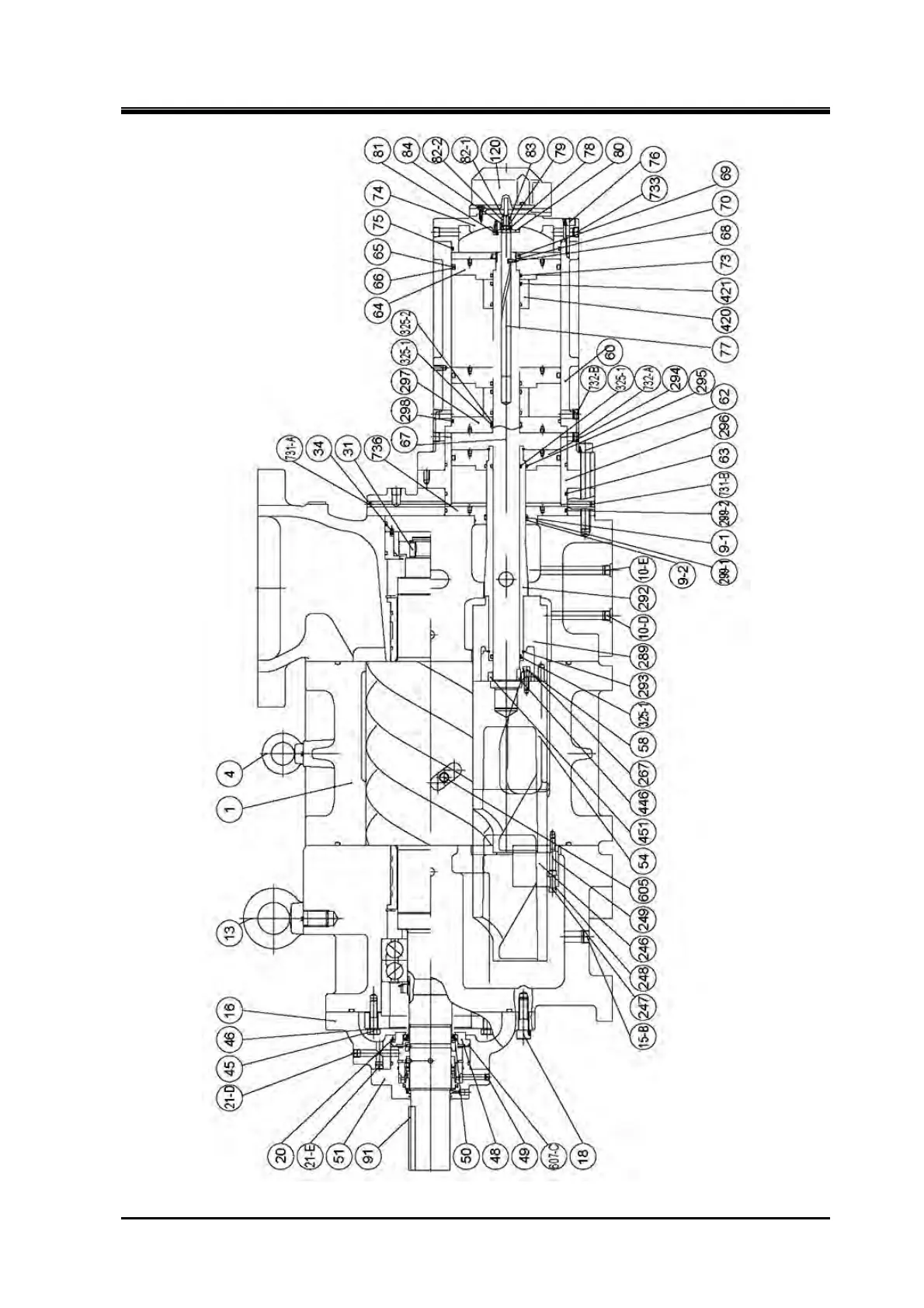

Figure 2-13 Sectional View of the 280J-Series (1/3)
