53
EN
hyperion - OPERATING INSTRUCTION
Source – image detector distance (SID) PAN: 550 mm
CEPH: 1512 mm
Dimensions of ray eld on detector PAN: 6 X 146 mm (horizontal X vertical)
CEPH: 6 X 220 mm (horizontal X vertical)
Focal spot dimensions 0.5 (according to EN IEC 60336)
X-ray tube OPX105 HF CEI - maximum kV = 100 kV

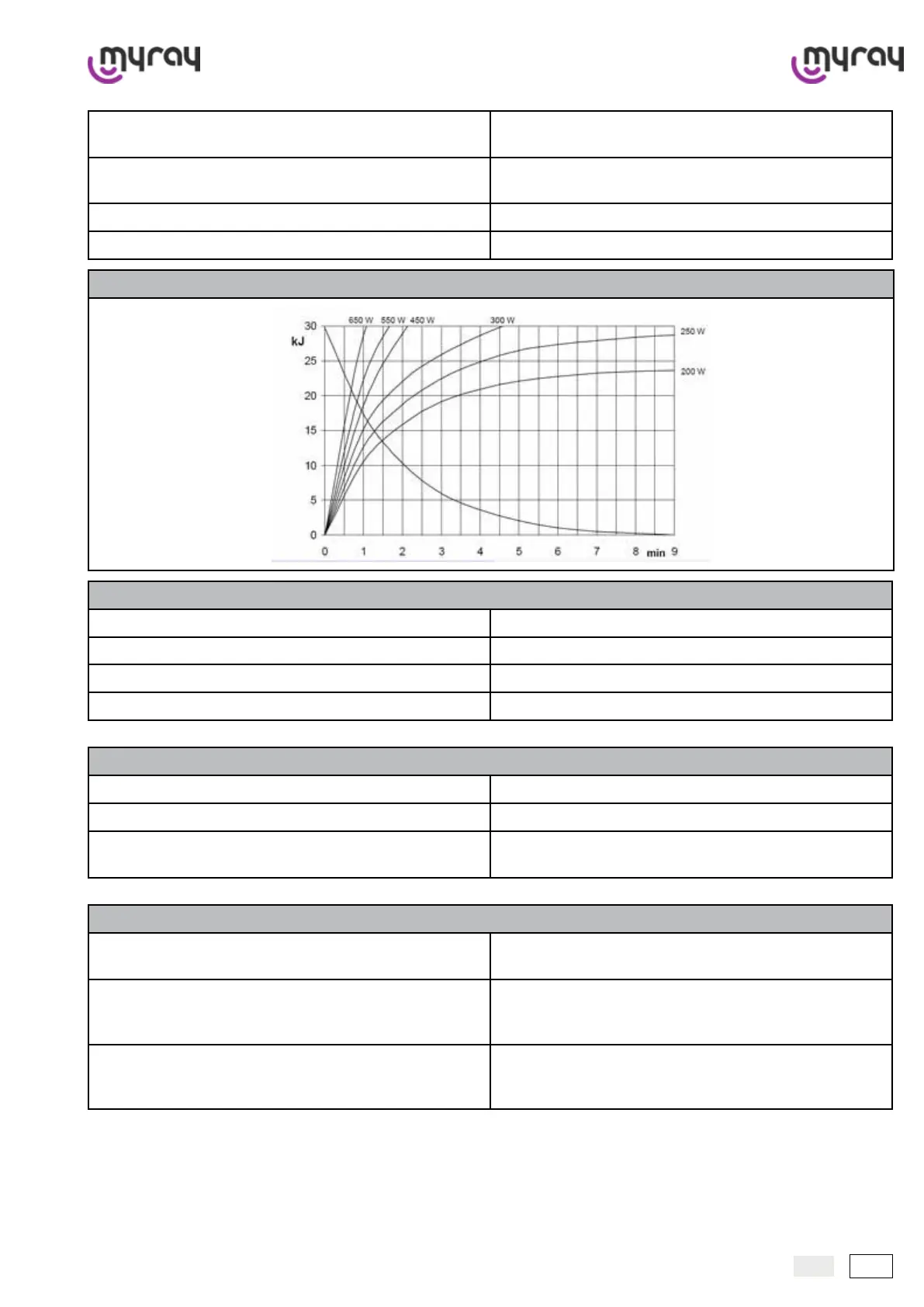

COOLING AND HEATING CURVES
LASER DATA
Class 1 - according to EN IEC 60825-1 (2003)
Wave length 635 nm
Output power 1.5 mW
Maximum activation time Continuous wave – maximum length limited to 45 s
DETECTOR DATA (CCD SENSOR)
Pixel dimensions 48 μm
Image resolution 5.2 LP/mm
Sensitive area
PAN: 6 X 146 mm
CEPH: 6 X 220 mm
ENVIRONMENTAL DATA
Weight PAN: 159 kg
CEPH: 25
Operating conditions Temperature: +15 / +35 °C
Relative humidity: 10 / 95 %
Pressure: 500 / 1060 hPa
Shipping and storage conditions Temperature: -30 / +60 °C
Relative humidity: 10 / 95 %
Pressure: 500 / 1060 hPa
