MyTek 192-DSD - Input.; Rear Panel

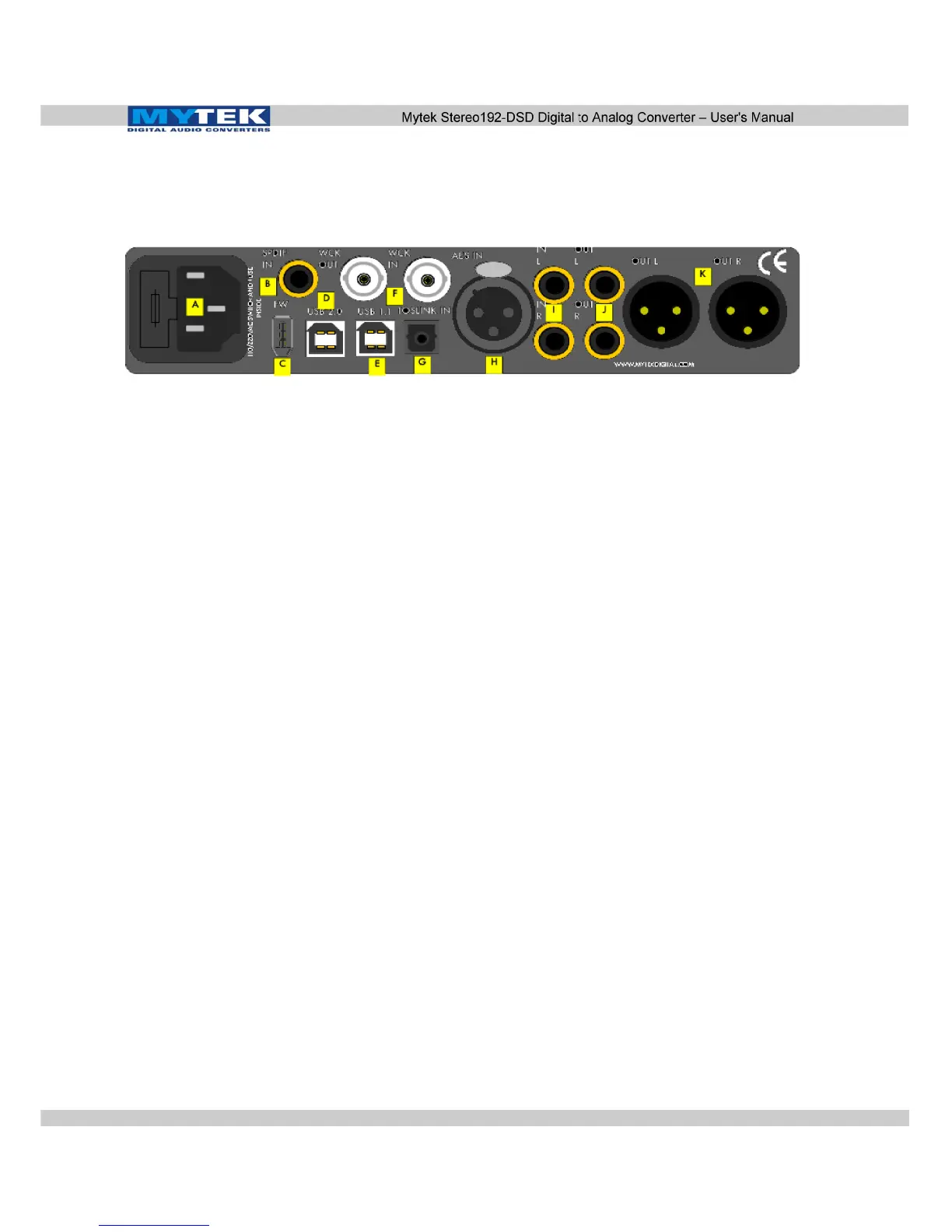

Rear Panel
A IEC Power socket and fuse. Standard 115/230V receptacle.
(100V for Japanese Models).
B S/PDIF Coax Input. Consumer digital input that accepts up to
192kHz sampling rate. This input can also be used to transmit
digital data to computer via FW connection.
C FireWire 400 Port. 6-pin computer interface. Can be used with
FireWire 400 > FireWire 800 cable or Firewire 400>Thunderbolt.
192kHz/DSD capable.
D USB 2.0 Port. Female USB B-type port for hi-speed (480Mbps)
computer interface. 192KHz/DSD capable.
E USB 1.1 Port. Female USB B-type port for full speed (12 Mbps)
computer interface. 96kHz capable.
F Wordclock BNC Input and Output. Used for professional clock
distribution. 192KHz and DSD reference clock.
G Optical Input (Toslink). Consumer digital input that accepts up to
192kHz PCM and DSD DOP standard via optical S/PDIF. Also
accepts professional ADAT signal up to 96kHz. This input can
also be used to transmit digital data to computer via FW
connection.
H AES/EBU Input. Professional digital input that accepts up to
192kHz. Accepts DSD DOP standard input. This input can also
be used to transmit digital data to computer via FW connection.
I Unbalanced RCA Stereo Analog Input (Preamp version only).
J Unbalanced RCA Stereo Analog Output.
K Balanced XLR Stereo Analog Output.
