(Revised 2011-09-28)
DIN-Rail Mounting
Install the unit in a standard DIN rail. Recess the unit to allow at least 2” of horizontal clearance for CAT5e
cable bend radius or 5” of horizontal clearance for Fiber Optic cable bend radius.

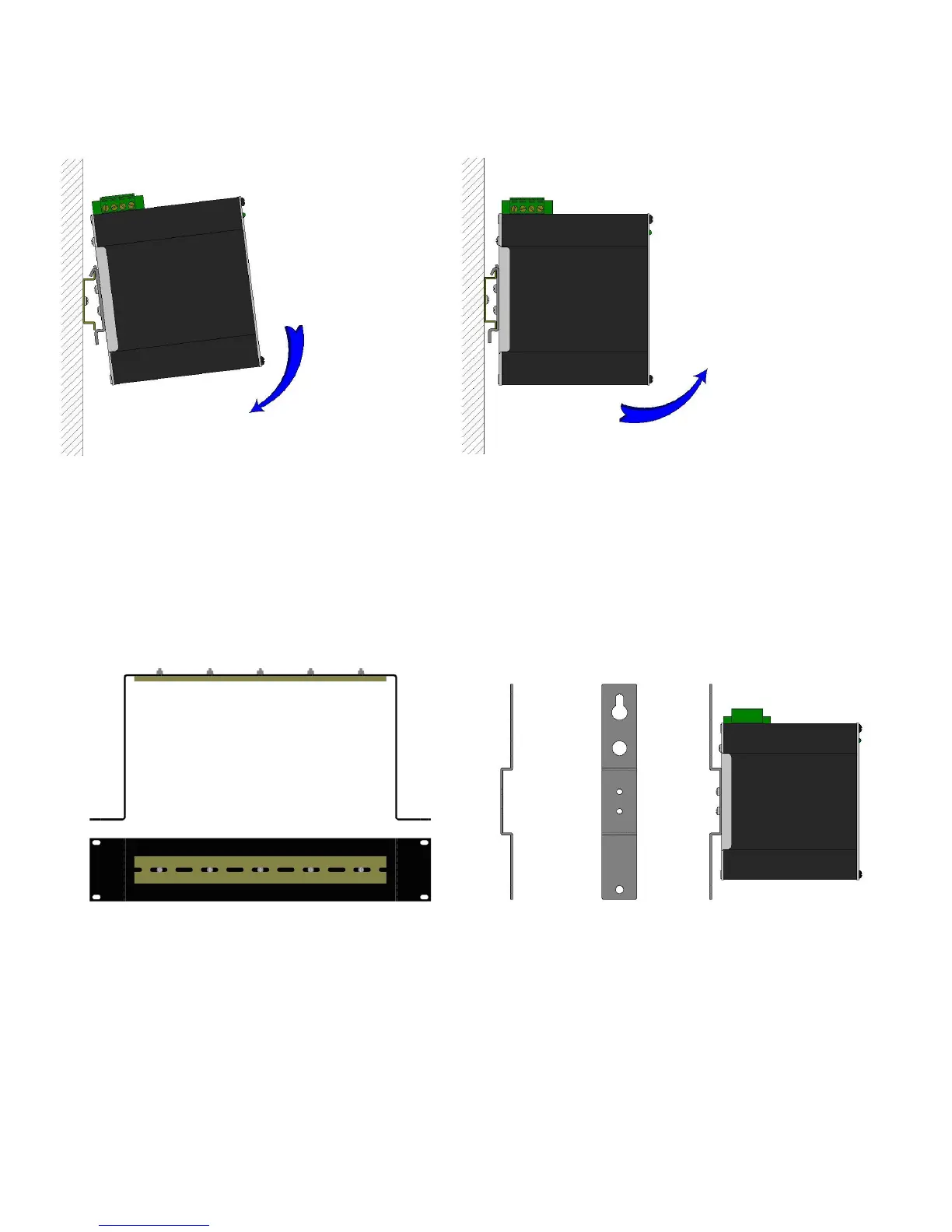

To install the unit to 35mm industrial DIN rail,
place the top edge of the included mounting
bracket on the back of the unit against the DIN
rail at a 15° angle as shown. Rotate the bottom of
the unit to the back (away from you) until it
snaps into place.
To remove the unit from the 35mm industrial
DIN rail, pull forward on the unit until it
disengages from the bottom of the DIN rail.
Rotate the bottom of the unit towards you and up
at an approximate 15° upward angle to
completely remove the unit.
URMK 1000-PM
Most N-Tron™ products are designed to be mounted on industry standard 35mm DIN rail. However, DIN rail
mounting may not be suitable for all applications. Our Universal Rack Mount Kit (P/N: URMK) may be used to
mount the 1000 Series enclosures to standard 19" racks, and our Panel Mount Assembly (P/N: 1000-PM) may
be used to mount the 1000 Series enclosures to a panel or any other flat surface.
