(Revised 2011-09-28)
9

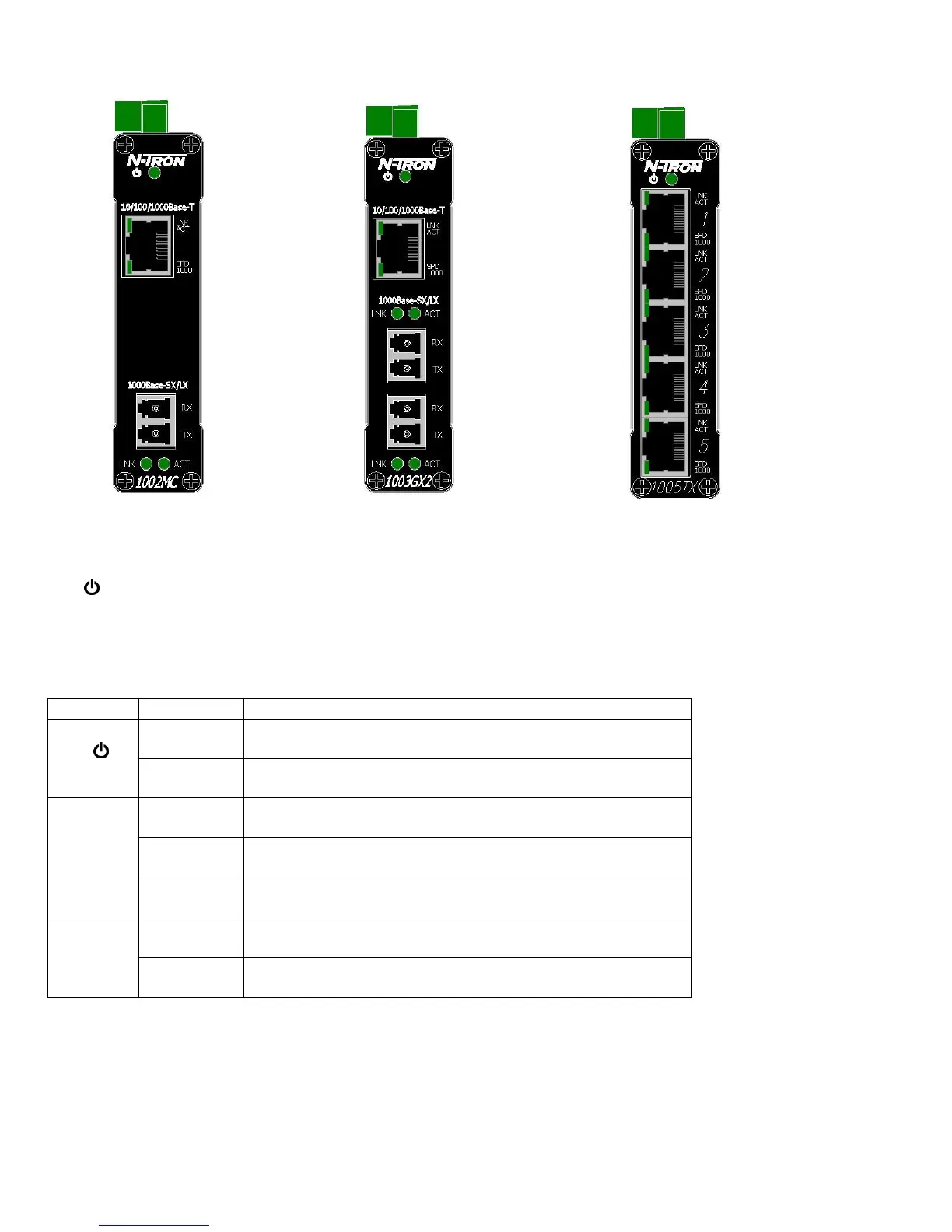

FRONT PANEL
From Top to Bottom:
Green LED lights when Power is connected
LNK/ACT Link/Activity LED
SPD1000 1000 Speed LED
LEDs: The table below describes the operating modes:
LED
Color
Description
ON
Power is Applied.
OFF
Power is OFF.
LNK/ACT
ON
Link established, no Activity on cable.
BLINKING
Link established, Activity on cable
OFF
No link activity on cable.
SPD1000
ON
Link is 1000Mbps.
OFF
Link is 10/100Mbs.
