(Revised 2011-03-14)

In the event all Cat5e patch cable distances are small (i.e. All Ethernet devices are located the same local

cabinet and/or referenced to the same earth ground), it is permissible to use fully shielded cables terminated to

chassis ground at both ends in systems void of low level analog signals.

RJ45 CONNECTOR CRIMP

SPECIFICATIONS

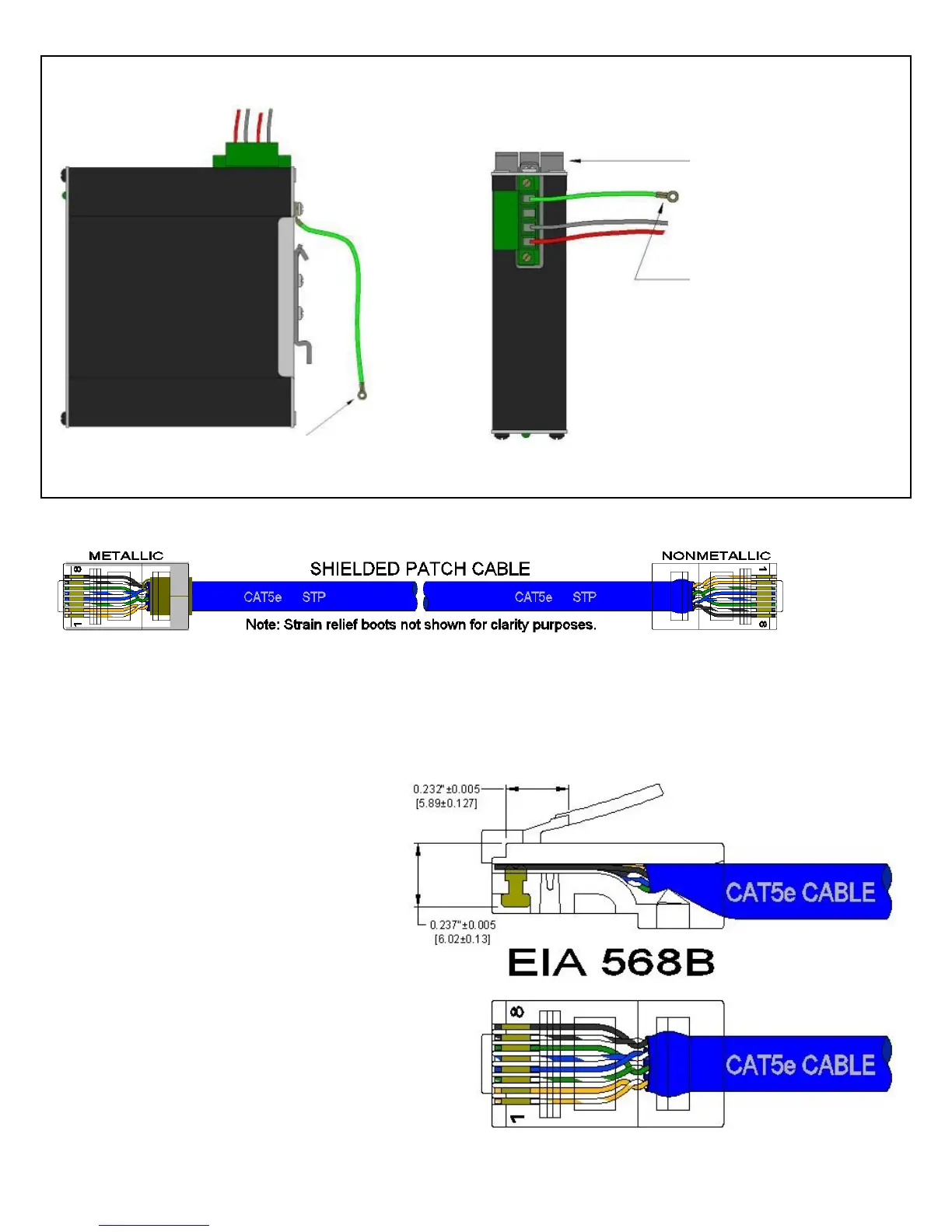

Please reference the illustration for your

Cat5 cable specifications.

105TX-SL

DRAIN WIRE WITH LUG CONNECTING SWITCH CHASSIS

TO KNOWN GOOD GROUNDING POINT.

METALLIC

DIN-RAIL CLIP

DRAIN WIRE WITH LUG

CONNECTING SWITCH

CHASSIS TO KNOWN

GOOD GROUNDING

POINT.
