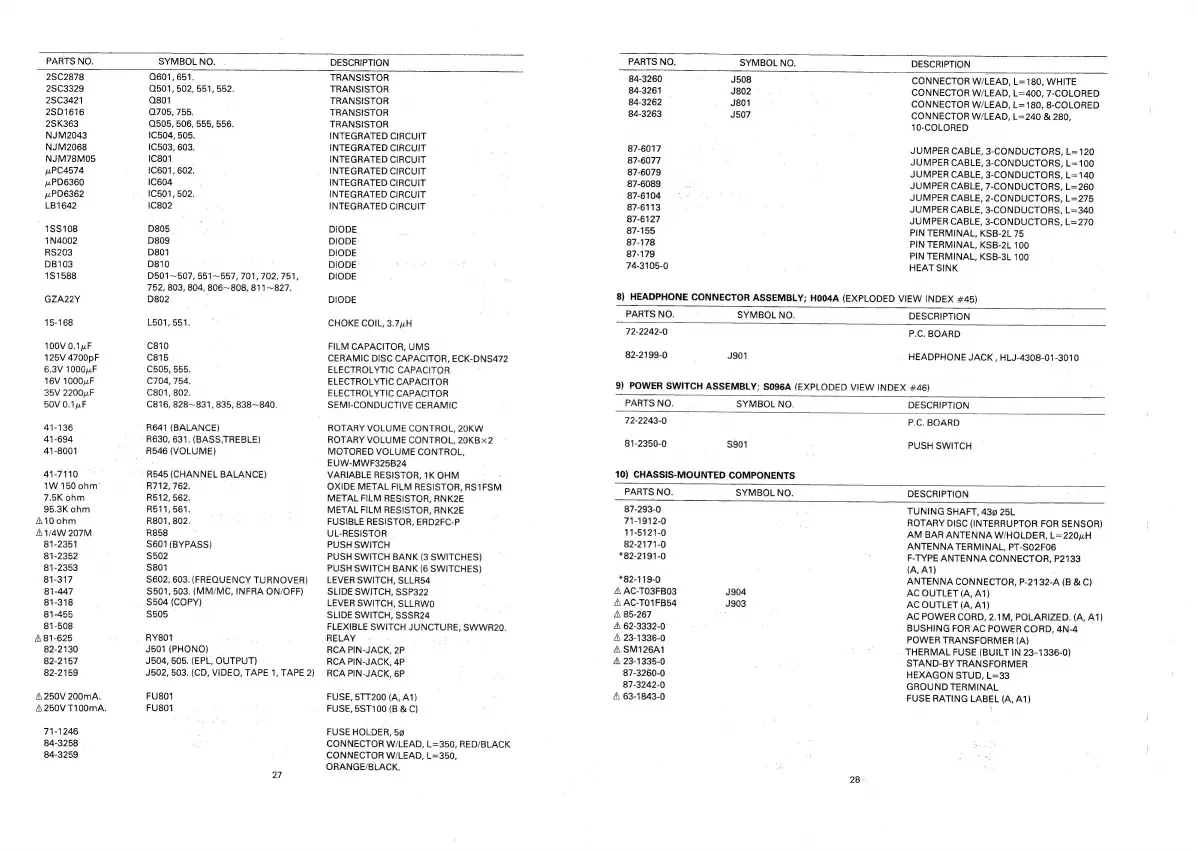

NAD 1700 - Electrical Parts List - Chassis and Power; Headphone, Power Switch, and Chassis Parts

PARTS NO. SYMBOL NO. DESCRIPTION
2SC2878 0601, 651. TRANSISTOR
2$C3329 Q501, 502, 551, 552. TRANSISTOR
28C3421 0801 TRANSISTOR
2SD1616 Q705, 755. TRANSISTOR
2SK363 Q505, 506, 555, 556. TRANSISTOR
NJM2043 1C504, 505. INTEGRATED CIRCUIT
NJM2068 iC503, 603. INTEGRATED CIRCUIT
NJM78M05 IC801 INTEGRATED CIRCUIT
uPC4574 1C601, 602. INTEGRATED CIRCUIT
yPD6360 IC604 INTEGRATED CIRCUIT
uPD6362 1C501, 502. INTEGRATED CIRCUIT
LB1642 1C802 INTEGRATED CIRCUIT
1S$S$108 D805 DIODE
1N4002 D809 DIODE
RS203 D801 DIODE
DB103 D810 DIODE
181588 D501~507, 551~557, 701, 702, 751, DIODE
752, 803, 804, 806~808, 811~827.
GZA22Y D802 DIODE
15-168 L501, 551. CHOKE COIL, 3.74H
100V 0.1 uF C810 FILM CAPACITOR, UMS
125V 4700pF C815 CERAMIC DISC CAPACITOR, ECK-DNS472
6.3V 1000uF C505, 555. ELECTROLYTIC CAPACITOR
16V 1000uF C704, 754, ELECTROLYTIC CAPACITOR
35V 2200uF C801, 802. ELECTROLYTIC CAPACITOR
5OV 0.1 uF C816, 828~831, 835, 838~840. SEMI-CONDUCTIVE CERAMIC
41-136 R641 (BALANCE) ROTARY VOLUME CONTROL, 20KW
41-694 R630, 631. (BASS,TREBLE) ROTARY VOLUME CONTROL, 20KB x2
41-8001 R546 (VOLUME) MOTORED VOLUME CONTROL,
3% EUW-MWEF325B24
41-7110 R545 (CHANNEL BALANCE) VARIABLE RESISTOR, 1K OHM
1W 150 ohm: R712, 762. OXIDE METAL FILM RESISTOR, RS1FSM
7.5K ohm R512, 562, METAL FILM RESISTOR, RNK2E
95.3K ohm R511, 561. METAL FILM RESISTOR, RNK2E
A100hm R801, 802. FUSIBLE RESISTOR, ERD2FC-P
A1/4W 207M R858 UL-RESISTOR
81-2351 $601 (BYPASS) PUSH SWITCH
81-2352 $502 PUSH SWITCH BANK (3 SWITCHES)
81-2353 $801 PUSH SWITCH BANK (6 SWITCHES)
81-317 $602, 603.(FREQUENCY TURNOVER) — LEVER SWITCH, SLLR54
81-447 $501, 503. (MM/MC, INFRA ON/OFF) SLIDE SWITCH, SSP322
81-318 $504 (COPY) LEVER SWITCH, SLLRWO
81-455 $505 © SLIDE SWITCH, SSSR24
81-508 FLEXIBLE SWITCH JUNCTURE, SWWR20.
A 81-625 _ RY801 RELAY . .. -
82-2130 J501 (PHONO) RCA PIN-JACK, 2P
82-2157 J504, 505. (EPL, OUTPUT) RCA PIN-JACK, 4P
82-2159 J502, 503.(CD, VIDEO, TAPE 1, TAPE 2) RCA PIN-JACK, 6P
A 250V 200mA. FU801 FUSE, 5TT200 (A, A1)
A. 250V T100mA. FU801 FUSE, 5ST100 (B & C)
71-1246 FUSE HOLDER, 5¢
84-3258 . CONNECTOR W/LEAD, L=350, RED/BLACK
84-3259 CONNECTOR WI/LEAD, L=350,
27
ORANGE/BLACK.
PARTS NO. SYMBOL NO.
DESCRIPTION
84-3260 J508
84-3261 J802
84-3262 J801
84-3263 J507
87-6017
87-6077
87-6079
87-6089
87-6104
87-6113
87-6127
87-155
87-178
87-179
74-3105-0
CONNECTOR W/LEAD, L=180, WHITE
CONNECTOR W/LEAD, L=400, 7-COLORED
CONNECTOR W/LEAD, L=180, 8-COLORED
CONNECTOR W/LEAD, L=240 & 280,
10-COLORED
JUMPER CABLE, 3-CONDUCTORS, L=120
JUMPER CABLE, 3-CONDUCTORS, L=100
JUMPER CABLE, 3-CONDUCTORS, L=140
JUMPER CABLE, 7-CONDUCTORS, L=260
JUMPER CABLE, 2-CONDUCTORS, L=275
JUMPER CABLE, 3-CONDUCTORS, L=340
JUMPER CABLE, 3-CONDUCTORS, L=270
PIN TERMINAL, KSB-2L 75
PIN TERMINAL, KSB-2L 100
PIN TERMINAL, KSB-3L 100
HEAT SINK
8) HEADPHONE CONNECTOR ASSEMBLY; H004A (EXPLODED VIEW INDEX #45)
PARTS NO. SYMBOL NO. DESCRIPTION
72-2242-0 P.C. BOARD
82-2199-0 J901 HEADPHONE JACK , HLJ-4308-01-3010
9) POWER SWITCH ASSEMBLY; SO96A (EXPLODED VIEW INDEX #46)
PARTS NO. SYMBOL NO. DESCRIPTION
72-2243-0 P.C. BOARD
81-2350-0 $901 PUSH SWITCH
10) CHASSIS-MOUNTED COMPONENTS
PARTS NO. SYMBOL NO. DESCRIPTION
87-293-0 TUNING SHAFT, 439 25L
71-1912-0 ROTARY DISC (INTERRUPTOR FOR SENSOR)
11-5121-0 AM BAR ANTENNA W/HOLDER, L=220uH
82-2171-0 ANTENNA TERMINAL, PT-SO2F06
*82-2191-0 F-TYPE ANTENNA CONNECTOR, P2133
(A, A1)
*82-119-0 ANTENNA CONNECTOR, P-2132-A (B & C)
A, AC-T03FB03 J904 AC OUTLET (A, A1)
4, AC-T01FB54 J903 AC OUTLET (A, A1)
L\ 85-267 AC POWER CORD, 2.1M, POLARIZED. (A, A1)
A 62-3332-0 BUSHING FOR AC POWER CORD, 4N-4
AS
23-1336-0
POWER
TRANSFORMER
(A)
A SM126A1 THERMAL FUSE (BUILT IN 23-1336-0)
A 23-1335-0 STAND-BY TRANSFORMER
87-3260-0 HEXAGON STUD, L=33
87-3242-0 GROUND TERMINAL
A 63-1843-0
28
FUSE RATING LABEL (A, A1)
