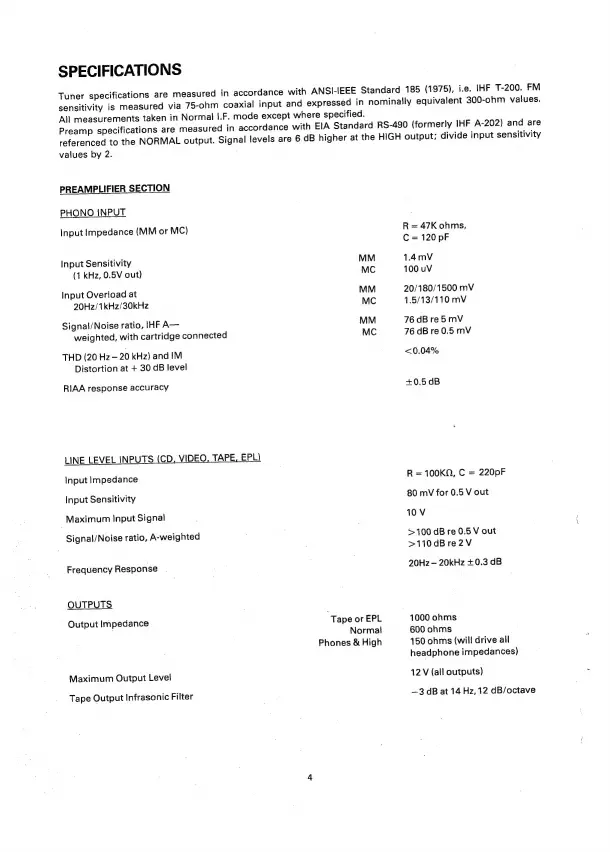

SPECIFICATIONS
Tuner
specifications
are
measured
in
accordance
with
ANSI-IEEE
Standard
185
(1975),
i.e.
IHF
T-200.
FM
sensitivity
is
measured
via
75-ohm
coaxial
input
and
expressed
in
nominally
equivalent
300-ohm
values.
All
measurements
taken
in
Normal
|.F.
mode
except
where
specified.
Preamp
specifications
are
measured
in
accordance
with
EIA
Standard
RS-490
(formerly
IHF
A-202)
and
are
referenced
to
the
NORMAL
output.
Signal
levels
are
6.dB
higher
at
the
HIGH
output;
divide
input
sensitivity
values
by
2.
PREAMPLIFIER SECTION
PHONO INPUT
Input
Impedance
(MM
or
MC)
R
=
47K
ohms,
C = 120 pF
Input
Sensitivity
MM
1.4mV
(1
kHz,
0.5V
out)
MC
100
uV
Input
Overload
at
MM
20/180/1500
mV
20H2/1kHz/30kHz
Mc
1.5/13/110
mV
Signal/Noise
ratio,
IHF
A—
MM
76
dB
re5mvV
weighted,
with
cartridge
connected
MC
76
dB
re
0.5
mV
THD
(20
Hz—
20
kHz)
and
IM
<0,04%
Distortion at + 30 dB level
RIAA
response
accuracy
+0.5
dB
LINE LEVEL INPUTS (CD, VIDEO, TAPE, EPL)
Input
Impedance
R
=
100KQ,
C
=
220pF
input
Sensitivity
80
mV
for
0.5
V
out
Maximum
Input
Signal
10V
Signal/Noise
ratio,
A-weighted
>
100
dB
re
0.5
V
out
>110dBre2V
Frequency
Response
20Hz
—
20kHz
+0.3
dB
OUTPUTS
Output
Impedance
.
Tape
or
EPL
1000
ohms
Normal 600 ohms
Phones & High 150 ohms (will drive all
headphone impedances)
Maximum
Output
Level
12
V
(all
outputs)
Tape
Output
Infrasonic
Filter
—3
dB
at
14
Hz,
12
dB/octave
