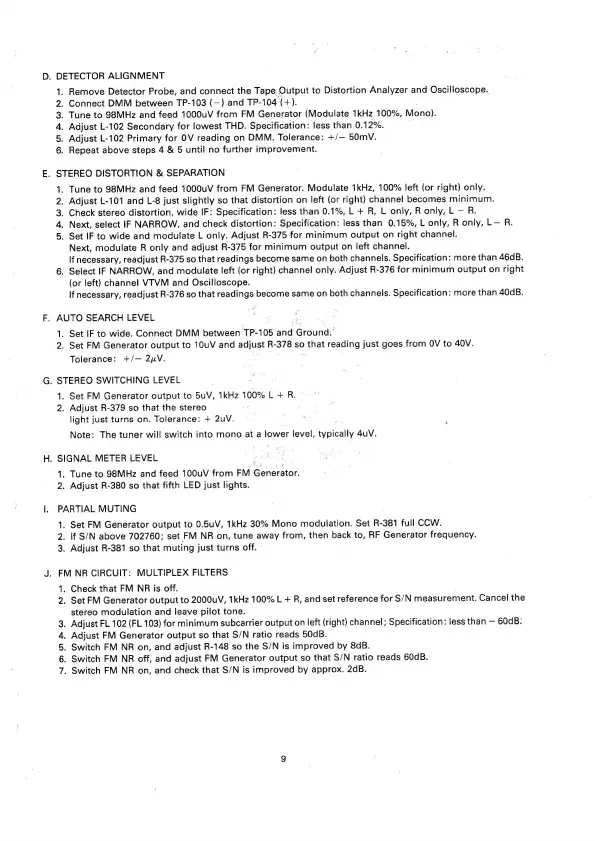

DETECTOR
ALIGNMENT
.
Remove
Detector
Probe,
and
connect
the
Tape,
Output
to
Distortion
Analyzer
and
Oscilloscope.
.
Connect
DMM
between
TP-103
(—)
and
TP-104
(4).
.
Tune
to
98MHz
and
feed
1000uV
from
FM
Generator
(Modulate
1kHz
100%,
Mono).
.
Adjust
L-102
Secondary
for
lowest
THD.
Specification:
less
than
0.12%.
.
Adjust
L-102
Primary
for
OV
reading
on
DMM.
Tolerance:
+/—
50mV.
.
Repeat
above
steps
4
&
5
until
no
further
improvement.
aoahands
.
STEREO
DISTORTION
&
SEPARATION
.
Tune
to
98MHz
and
feed
1000uV
from
FM
Generator.
Modulate
1kHz,
100%
left
(or
right)
only.
.
Adjust
L-101
and
L-8
just
slightly
so
that
distortion
on
left
(or
right)
channel
becomes
minimum.
.
Check
stereo
distortion,
wide
IF:
Specification:
less
than
0.1%,
L
+
R,
L
only,
R
only,
L
R.
.
Next,
select
IF
NARROW,
and
check
distortion:
Specification:
less
than
0.15%,
L
only,
R
only,
L—
R.
.
Set
IF
to
wide
and
modulate
L
only.
Adjust
R-375
for
minimum
output
on
right
channel.
Next,
modulate
R
only
and
adjust
R-375
for
minimum
output
on
left
channel.
lf
necessary,
readjust
R-375
so
that
readings
become
same
on
both
channels.
Specification:
more
than
46cB.
6.
Select
IF
NARROW,
and
modulate
left
(or
right)
channel
only.
Adjust
R-376
for
minimum
output
on
right
(or
left)
channel
VTVM
and
Oscilloscope.
If
necessary,
readjust
R-376
so
that
readings
become
same
on
both
channels.
Specification:
more
than
40aB.
ah
WKND
=
.
AUTO
SEARCH
LEVEL
1.
Set
IF
to
wide.
Connect
DMM
between
TP-105
and
Ground:”
2.
Set
FM
Generator
output
to
10uV
and
adjust
R-
o78
so
cent
reading
just
goes
from
OV
to
40V.
Tolerance:
+/—
2pV.
.
STEREO
SWITCHING
LEVEL
1.
Set
FM
Generator
output
to
5uV,
1kHz
100%
L
+
R.
2.
Adjust
R-379
so
that
the
stereo
light
just
turns
on.
Tolerance:
+
2uV.
Note:
The
tuner
will
switch
into
mono
at
a
lower
level,
‘ypically
4uV.
.
SIGNAL
METER
LEVEL
1.
Tune
to
98MHz
and
feed
100uV
from
FM
Getic
ator
2.
Adjust
R-380
so
that
fifth
LED
just
lights.
PARTIAL
MUTING
1.
Set
FM
Generator
output
to
0.5uV,
1kHz
30%
Mono
modulation.
Set
R-381
full
CCW.
2.
If
S/N
above
702760;
set
FM
NR
on,
tune
away
from,
then
back
to,
RF
Generator
frequency.
3.
Adjust
R-381
so
that
muting
just
turns
off.
.
FM
NR
CIRCUIT:
MULTIPLEX
FILTERS
1.
Check
that
FM NR
is
off.
.
Set
FM
Generator
output
to
2000uV,
1kHz
100%
L
+
R,
and
set
reference
for
S/N
measurement.
Cancel
the
stereo
modulation
and
leave
pilot
tone.
.
Adjust
FL
102
(FL
103)
for
minimum
subcarrier
output
on
left
(right)
channel;
Specification:
less
than
60dcB:
.
Adjust
FM
Generator
output
so
that
S/N
ratio
reads
50cB.
.
Switch
FM
NR
on,
and
adjust
R-148
so
the
S/N
is
improved
by
8dB.
.
Switch
FM
NR
off,
and
adjust
FM
Generator
output
so
that
S/N
ratio
reads
60cB.
.
Switch
FM
NR
on,
and
check
that
S/N
is
improved
by
approx.
2dB.
N
SN
Oof
W
