NAD 2100 - Specifications; Stereo Mode Specifications; Bridged (Monophonic) Mode Specs; Physical Specifications

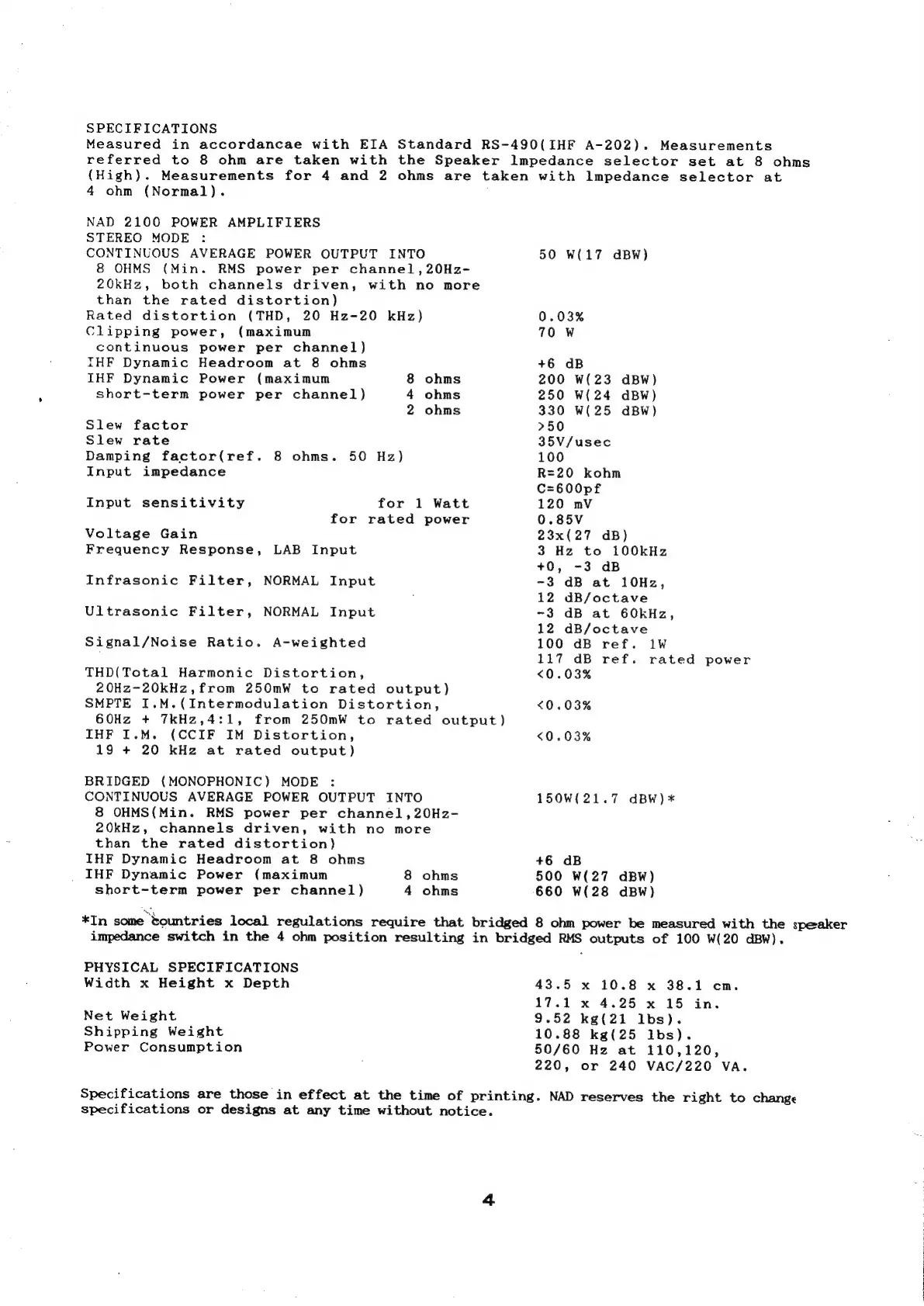

SPECIFICATIONS
Measured in accordancae with EIA Standard RS-490(IHF A-202). Measurements
referred to 8 ohm are taken with the Speaker lmpedance selector set at 8 ohms
(High). Measurements for 4 and 2 ohms are taken with lmpedance selector at
4 ohm (Normal).
NAD 2100 POWER AMPLIFIERS
STEREO MODE
CONTINUOUS AVERAGE POWER OUTPUT INTO
8 OHMS (Min. RMS power per channel, 20Hz-
20kHz, both channels driven, with no more
than the rated distortion)
Rated distortion (THD, 20 Hz-20 kHz)
Clipping power, (maximum
continuous power per channel)
THF Dynamic Headroom at 8 ohms
IHF Dynamic Power (maximum 8 ohms
short-term power per channel) 4 ohms
2 ohms
Slew factor
Slew rate
Damping factor(ref. 8 ohms. 50 Hz)
Input impedance
Input sensitivity for 1 Watt
for rated power
Voltage Gain
Frequency Response, LAB Input
Infrasonic Filter, NORMAL Input
Ultrasonic Filter, NORMAL Input
Signal/Noise Ratio. A-weighted
THD(Total Harmonic Distortion,
20HzZz-20kHz,from 250mW to rated output)
SMPTE I.M.(Intermodulation Distortion,
60Hz + 7kHz,4:1, from 250mW to rated output)
IHF I.M. (CCIF IM Distortion,
19 + 20 kHz at rated output)
BRIDGED (MONOPHONIC) MODE :
CONTINUOUS AVERAGE POWER OUTPUT INTO
8 OHMS(Min. RMS power per channel, 20Hz-
20kHz, channels driven, with no more
than the rated distortion)
IHF Dynamic Headroom at 8 ohms
IHF Dynamic Power (maximum
short-term power per channel)
8 ohms
4 ohms
50 W(17 dBW)
0.03%
70 W
+6 dB
200 W(23 dBW)
250 W(24 dBW)
330 W(25 daBW)
>50
35V/usec
100
R=20 kohm
C=600pf
120 mV
0.85V
23x(27 dB)
3 Hz to 100kHz
+0, -3 dB
-3 dB at 10Hz,
12 dB/octave
-3 dB at 60kHz,
12 dB/octave
100 dB ref. 1W
117 dB ref. rated power
<0.03%
<0.03%
<0.03%
150W(21.7 dBW)*
+6 dB
500 W(27 dBW)
660 W(28 dBW)
*In
some
countries
local
regulations
require
that
bridged
8
ohm
power
be
measured
with
the
speaker
impedance
switch
in
the
4
ohm
position
resulting
in
bridged
RMS
outputs
of
100
W(20
dBW).
PHYSICAL SPECIFICATIONS
Width x Height x Depth
Net Weight
Shipping Weight
Power Consumption
43.5 x 10.8 x 38.1 cm.
17.1 x 4.25 x 15 in.
9.52 kg(21 lbs).
10.88 kg(25 libs).
50/60 Hz at 110,120,
220, or 240 VAC/220 VA.
Specifications
are
those
in
effect
at
the
time
of
printing.
NAD
reserves
the
right
to
change
specifications or designs at any time without notice.
