NAD 402 - Electrical Parts List; Electrical Component Details

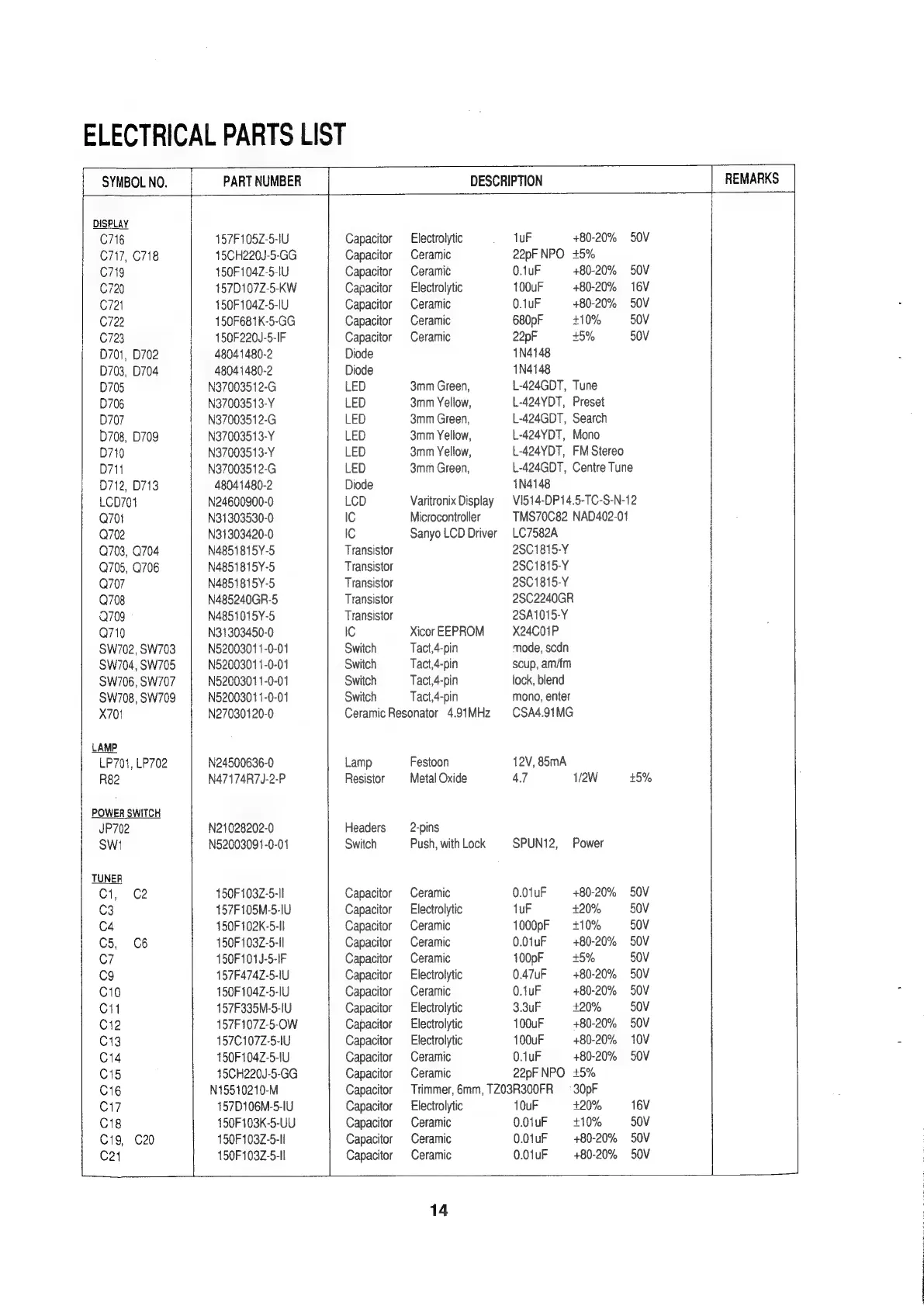

ELECTRICAL PARTS LIST
SYMBOL
NO.
PART
NUMBER
DESCRIPTION
REMARKS
DISPLAY
C716 157F105Z-5-1U Capacitor — Electrolytic 1uF +80-20% 50V
C717, C718 15CH220J-5-GG Capacitor Ceramic 22pF NPO +5%
C719 150F104Z-5-lU Capacitor Ceramic 0.1uF +80-20% 50V
C720 157D107Z-5-KW Capacitor — Electrolytic 100uF +80-20% 16V
C721 150F1042Z-5-IU Capacitor Ceramic 0.1uF +80-20% 50V
C722 150F681K-5-GG Capacitor Ceramic 680pF +10% 50V
C723 150F220J-5-IF Capacitor Ceramic 22pF +5% 50V
D701, D702 48041480-2 Diode 1N4148
D703, D704 4804 1480-2 Diode 1N4148
D705 N37003512-G LED 3mm Green, L-424GDT, Tune
D706 N37003513-Y LED 3mm Yellow, L-424YDT, Preset
D707 N37003512-G LED 3mm Green, L-424GDT, Search
D708, 0709 N37003513-Y LED 3mm Yellow, L-424YDT, Mono
D710 N37003513-Y LED 3mm Yellow, L-424YDT, FM Stereo
D711 N37003512-G LED 3mm Green, L-424GDT, Centre Tune
D712, D713 48041480-2 Diode 1N4148
LCD701 N24600900-0 LCD Varitronix Display VI514-DP14.5-TC-S-N-12
Q701 N31303530-0 IC Microcontroller TMS70C82 NAD402-01
Q702 N31303420-0 IC Sanyo LCD Driver LC7582A
Q703, Q704 N4851815Y-5 Transistor 28C01815-Y
Q705, Q706 N4851815Y-5 Transistor 25C1815-Y
Q707 N4851815Y-5 Transistor 28C01815-Y
Q708 N485240GR-5 Transistor 28C2240GR
Q709 N4851015Y-5 Transistor 2SA1015-Y
Q710 N31303450-0 IC Xicor EEPROM X24C01P
SW702, SW703 N52003011-0-01 Switch Tact,4-pin mode, scdn
SW704, SW705 N5200301 1-0-01 Switch Tact,4-pin scup, am/fm
SW706, SW707 N5200301 1-0-01 Switch Tact,4-pin lock, blend
SW708, SW709 N5200301 1-0-01 Switch Tact,4-pin mono, enter
X701
LAMP
LP701, LP702
R82
POWER SWITCH
JP702
SW
TUNER
Ci.
C3
C4
C5, C6
C7
cg
C10
CH
C12
C13
C14
C15
C16
C17
C18
C19, C20
C21
N27030120-0
N24500636-0
N47174R7J-2-P
N21028202-0
N52003091-0-01
150F103Z-5-ll
157F105M-5-IU
150F102K-5-ll
150F1032Z-5-II
150F101J-5-IF
157F4742-5-1U
150F104Z-5-IU
157F335M-5-IU
157F1072Z-5-OW
157€107Z-5-IU
150F104Z-5-1U
15CH220J-5-GG
N15510210-M
157D106M-5-IU
150F103K-5-UU
150F1032-5-l!
150F103Z-5-Il
Ceramic Resonator 4.91MHz CSA4.91MG
Lamp
Resistor
Headers
Switch
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
Festoon 12V, 85mA
Metal Oxide 47 1/2W +5%
2-pins
Push, with Lock SPUN12, Power
Ceramic 0.01uF +80-20% 50V
Electrolytic {uF +20% 50V
Ceramic 1000pF =+10% 50V
Ceramic 0.01uF +80-20% 50V
Ceramic 100pF +5% 50V
Electrolytic 0.47uF +80-20% 50V
Ceramic 0.1uF +80-20% 50V
Electrolytic 3.3uF 420% 50V
Electrolytic 100uF +80-20% 50V
Electrolytic 100uF +80-20% 10V
Ceramic 0.1uF +80-20% 50V
Ceramic 22pF NPO +5%
Trimmer, 6mm, TZO3R300FR = 30pF
Electrolytic 10uF 420% 16V
Ceramic 0.01uF +10% 50V
Ceramic 0.01uF +80-20% 50V
Ceramic 0.01uF +80-20% 50V
14
