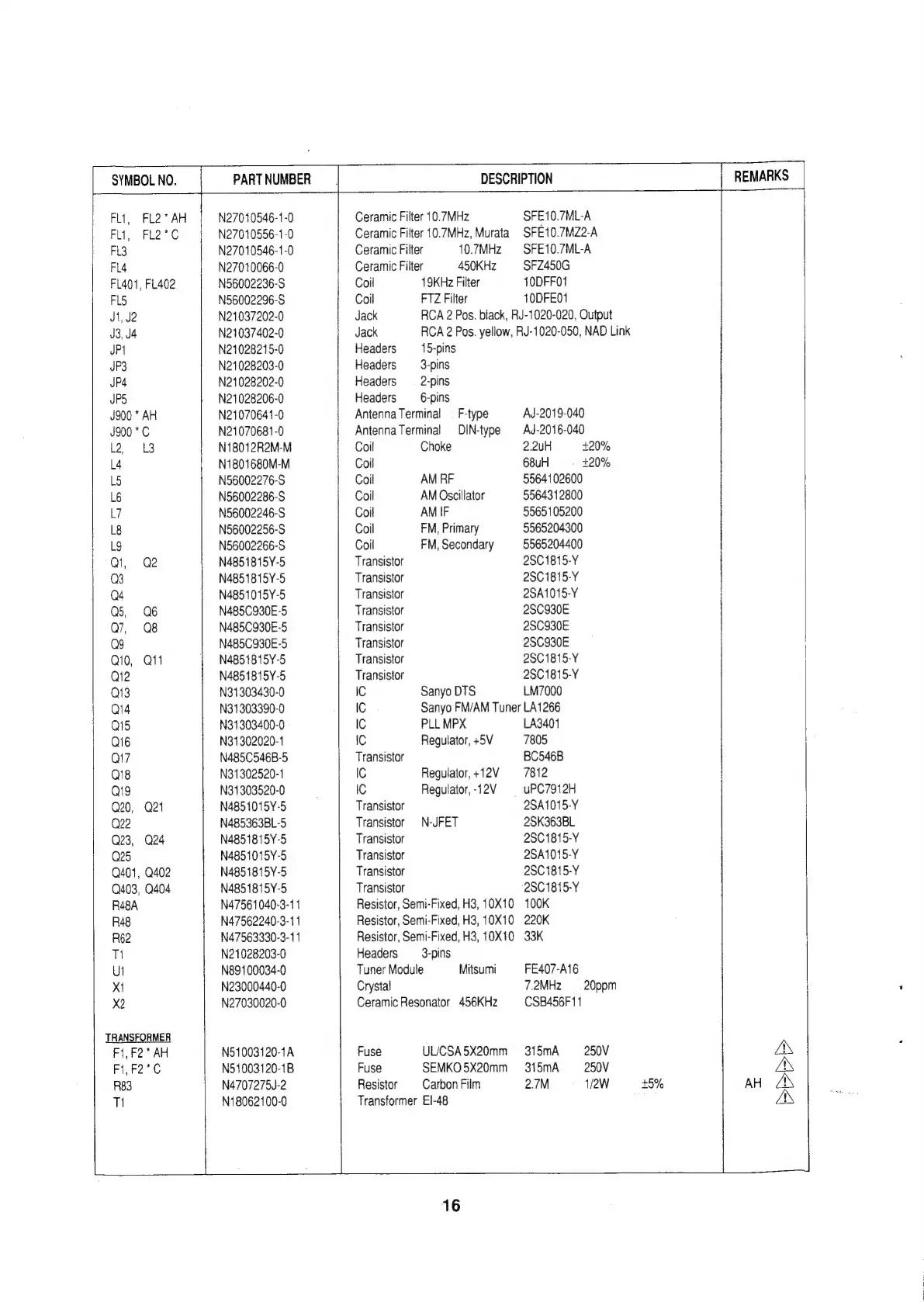

NAD 402 - Page 18

SYMBOL NO. PART NUMBER DESCRIPTION
FL1, FL2* AH N27010546-1-0 Ceramic Filter 10.7MHz SFE10.7ML-A
FL1, FL2°C N27010556-1-0 Ceramic Filter 10.7MHz, Murata. SFE10.7MZ2-A
FL3 N27010546-1-0 Ceramic Filter 10.7MHz SFE10.7ML-A
FL4 N27010066-0 Ceramic Filter 450KHz SFZ450G
FL401, FL402 N56002236-S Coil 19KHz Filter 10DFFO1
FL5 N56002296-S Coil FTZ Filter 1ODFE01
Ji, J2 N21037202-0 Jack RCA 2 Pos. black, RJ-1020-020, Output
J3, J4 N21037402-0 Jack RCA 2 Pos. yellow, RJ-1020-050, NAD Link
JP1 N21028215-0 Headers 15-pins
JP3 N21028203-0 Headers —3-pins
JP4 N21028202-0 Headers = 2-pins
JP5 N21028206-0 Headers _—6-pins
J900 * AH N21070641-0 AntennaTerminal — F-type AJ-2019-040
J900 * C N21070681-0 AntennaTerminal DIN-type Ad-2016-040
L2, 13 N18012R2M-M Coil Choke 2.2UH +20%
L4 N1801680M-M Coil 68uH +20%
U5 N56002276-S Coil AM RF 5564102600
L6 N56002286-S Coil AM Oscillator 5564312800
L7 N56002246-S Coil AM IF 5565105200
L8 N56002256-S Coil FM, Primary 5565204300
Lg N56002266-S Coil FM, Secondary 5565204400
Qi, Q2 N4851815Y-5 Transistor 2801815-Y
Q3 N4851815Y-5 Transistor 2SC1815-Y
4 N4851015Y-5 Transistor 2SA1015-Y
Q5, Q6 N485C930E-5 Transistor 2SC930E
Q7, 8 N485C930E-5 Transistor 28C930E
Q9 N485C930E-5 Transistor 28C930E
Q10, Q11 N4851815Y-5 Transistor 28C1815-Y
Qi2 N4851815Y-5 Transistor 28C1815-Y
Q13 N31303430-0 IC Sanyo DTS LM7000
Q14 N31303390-0 IC Sanyo FM/AM Tuner LA1266
Qt5 N31303400-0 IC PLL MPX LA3401
Q16 N31302020-1 IC Regulator, +5V 7805
Q17 N485C546B-5 Transistor BC546B
Q18 N31302520-1 IC Regulator, +12V 7812
Q19 N31303520-0 IC Regulator, -12V uPC7912H
Q20, Q21 N4851015Y-5 Transistor 2SA1015-Y
Q22 N485363BL-5 Transistor N-JFET 2SK363BL
Q23, Q24 N4851815Y-5 Transistor 2S01815-Y
Q25 N4851015Y-5 Transistor 2SA1015-Y
Q401, Q402 N4851815Y-5 Transistor 28C1815-Y
Q403, Q404 N4851815Y-5 Transistor 28C1815-Y
R48A N47561040-3-11 Resistor, Semi-Fixed, H3, 10X10 100K
R48 N47562240-3-11 Resistor, Semi-Fixed, H3, 10X10 220K
R62 N47563330-3-11 Resistor, Semi-Fixed, H3, 10X10 33K
Tt N21028203-0 Headers — 3-pins
Ut N89100034-0 Tuner Module Mitsumi FE407-A16
Xt N23000440-0 Crystal 7.2MHz = 20ppm
X2 N27030020-0 Ceramic Resonator 456KHz CSB456F 11
TRANSFORMER
Fi, F2* AH N51003120-1A Fuse ULICSA5X20mm_ = 3315mA 250V
Fi,F2°C N51003120-1B Fuse SEMKO5X20mm = 315mA 250V
R83 N4707275J-2 Resistor Carbon Film 2.7M 1/2W 45%
11 N18062100-0 Transformer El-48
16
BEE
