NAD 5220 - TMP47 C420 AF IC Terminal Functions; TMP47 C420 AF Pinout Diagram; TMP47 C420 AF Pin Description

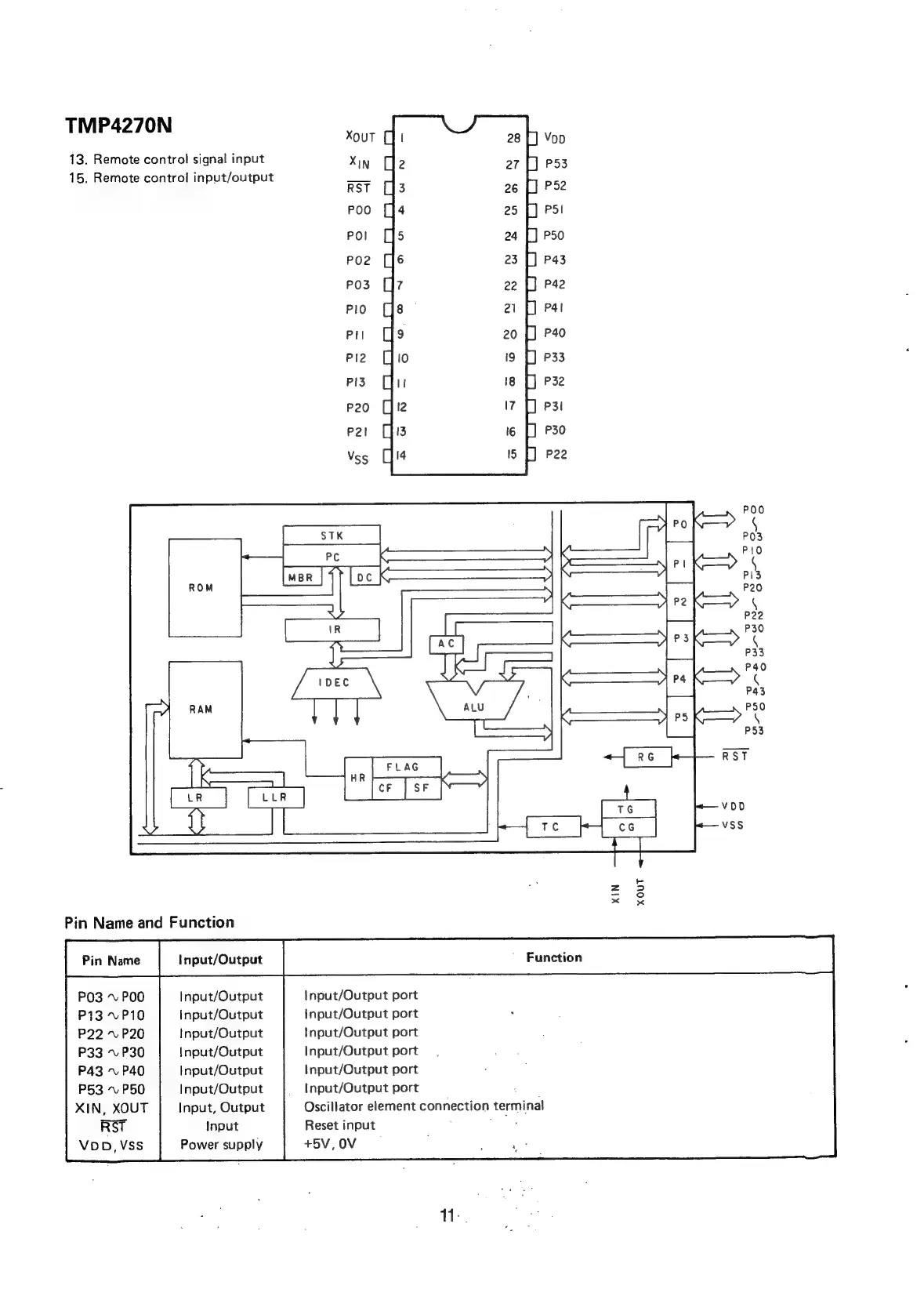

TMP4270N
13. Remote control signal input
15, Remote control input/output
Hee
a
[ts |
=
XIN
xOUT
Pin Name and Function
PO3 ~v POO Input/Output Input/Output port
P13 ~P10 Input/Output input/Output port
P22 ~P20 Input/Output Input/Output port
P33 ~ P30 Input/Output Input/Output port
P43 ~ P40 Input/Output Input/Output port
P53
~
P50
Input/Output
Input/Output
port
XIN, XOUT Input, Output Oscillator element connection terminal
RT
Input
Reset
input
sO
+5V, OV 2. aha
VpD,Vss
Power
supply
11:
