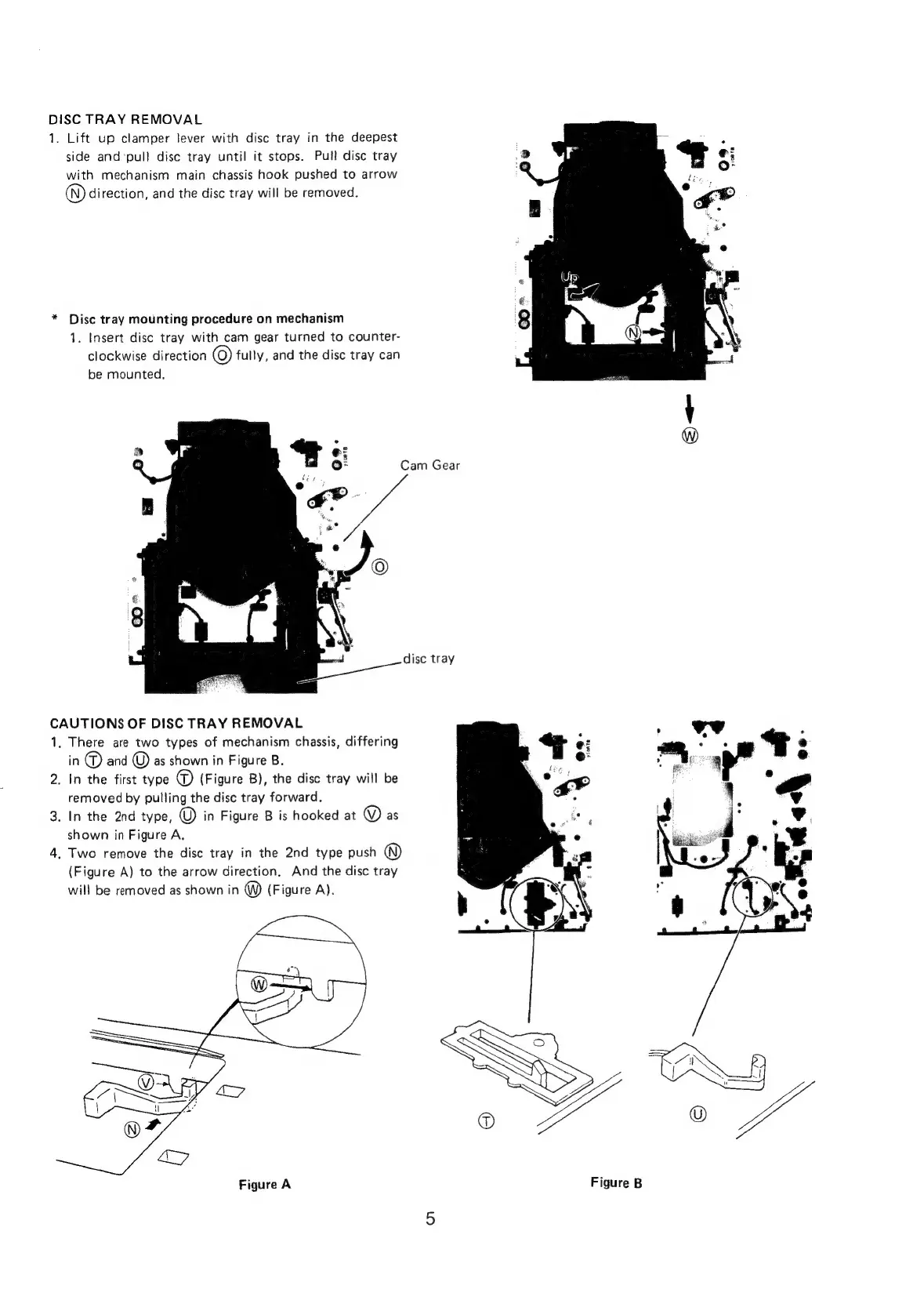

DISC TRAY REMOVAL
1. Lift up clamper lever with disc tray in the deepest
side and ‘pull disc tray until it stops. Pull disc tray
with mechanism main chassis hook pushed to arrow
(N) direction, and the disc tray will be removed.
* Disc tray mounting procedure on mechanism
1. Insert disc tray with cam gear turned to counter-
clockwise direction © fully, and the disc tray can
be mounted,
CAUTIONS OF DISC TRAY REMOVAL
1, There are two types of mechanism chassis, differing
in @ and () as shown in Figure B.
2. In the first type ® (Figure B), the disc tray will be
removed by pulling the disc tray forward.
3. In the 2nd type, O in Figure B is hooked at W as
shown in Figure A,
4. Two remove the disc tray in the 2nd type push ®
(Figure A) to the arrow direction. And the disc tray
will be removed as shown in @) (Figure A).
Figure A Figure B
