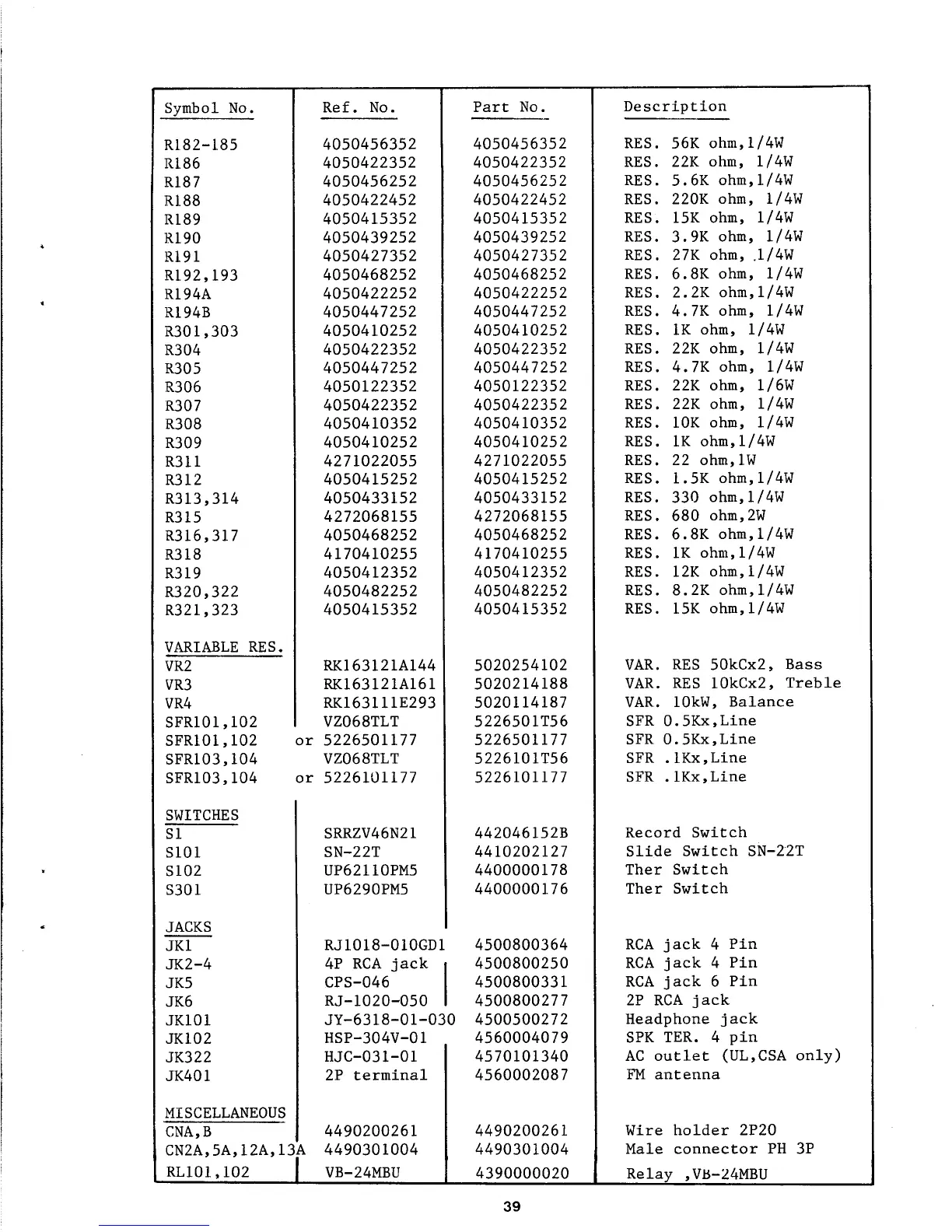

NAD 705 - Page 38

39
Symbol No .
Ref . No . Part No . Description
8182-185 4050456352 4050456352
RES . 56Kohm,l/4W
8186 4050422352 4050422352
RES . 22K ohm, 1/4W
8187 4050456252 4050456252
RES .
5
.6K ohm,l/4W
8188 4050422452 4050422452
RES . 220K ohm, 1/4W
8189 4050415352 4050415352
RES . 15K ohm, 1/4W
8190 4050439252 4050439252
RES
. 3 .9K
ohm, 1/4W
8191 4050427352 4050427352
RES . 27K ohm, .l/4W
R192, 193
4050468252 4050468252
RES
. 6 .8K
ohm, 1/4W
R194A 4050422252 4050422252
RES . 2 .2K ohm,l/4W
RI 94B 4050447252 4050447252
RES . 4 .7K ohm, 1/4W
8301,303 4050410252 4050410252
RES . 1K ohm, 1/4W
8304 4050422352 4050422352
RES . 22K ohm, 1/4W
8305 4050447252 4050447252
RES . 4 .7K ohm, 1/4W
8306 4050122352 4050122352
RES . 22K ohm, 1/6W
8307 4050422352 4050422352
RES . 22K ohm, 1/4W
8308 4050410352 4050410352
RES . 10K ohm, 1/4W
8309 4050410252 4050410252
RES . 1K ohm,l/4W
8311 4271022055 4271022055
RES . 22 ohm,1W
8312 4050415252
4050415252 RES . 1 .5K ohm,l/4W
8313,314 4050433152 4050433152
RES . 330 ohm,l/4W
8315 4272068155
4272068155 RES . 680 ohm,2W
8316,317 4050468252
4050468252 RES . 6 .8K ohm,l/4W
8318 4170410255
4170410255 RES . 1K ohm,l/4W
8319 4050412352
4050412352 RES . 12K ohm,1/4W
8320,322 4050482252
4050482252 RES . 8 .2K ohm,l/4W
8321,323
4050415352 4050415352 RES . 15K
ohm,l/4W
VARIABLE RES .
VR2 RK163121A144 5020254102 VAR . RES
50kCx2, Bass
VR3
RK163121A161 5020214188 VAR . RES
1OkCx2, Treble
VR4
RK163111E293 5020114187 VAR . 1OkW,
Balance
SFR101,102
VZ068TLT 5226501756 SFR 0 .5Kx,Line
SFR101,102 or 5226501177 5226501177
SFR
0
.5Kx,Line
SFR103,104 VZ068TLT 5226101756
SFR .1Kx,Line
SFR103,104
or 5226101177 5226101177
SFR .1Kx,Line
SWITCHES
Sl SRRZV46N21 442046152B
Record Switch
S101 SN-227 4410202127
SlideSwitch SN-227
S102 UP62110PM5 4400000178
Ther Switch
5301
UP6290PM5 4400000176
Ther Switch
JACKS
JK1 RJ1018-010GD1 4500800364
RCA jack 4 Pin
JK2-4 4P RCA jack 4500800250
RCAjack 4 Pin
JK5 CPS-046 I 4500800331
RCA jack 6 Pin
JK6 RJ-1020-050 4500800277
2P RCAjack
JK101 JY-6318-01-030 4500500272
Headphonejack
JK102
HSP-304V-01 4560004079 SPKTER . 4 pin
JK322 HJC-031-01
I 4570101340 AC outlet (UL,CSA
only)
JK401
2P terminal 4560002087 FM antenna
MISCELLANEOUS
CNA,B 1
4490200261 4490200261 Wireholder 2P20
CN2A,5A,12A,13A
4490301004 4490301004 Male connector
PH
3P
RL10 1,102 I VB-24MBU
4390000020 Relay ,VB-24MBU
