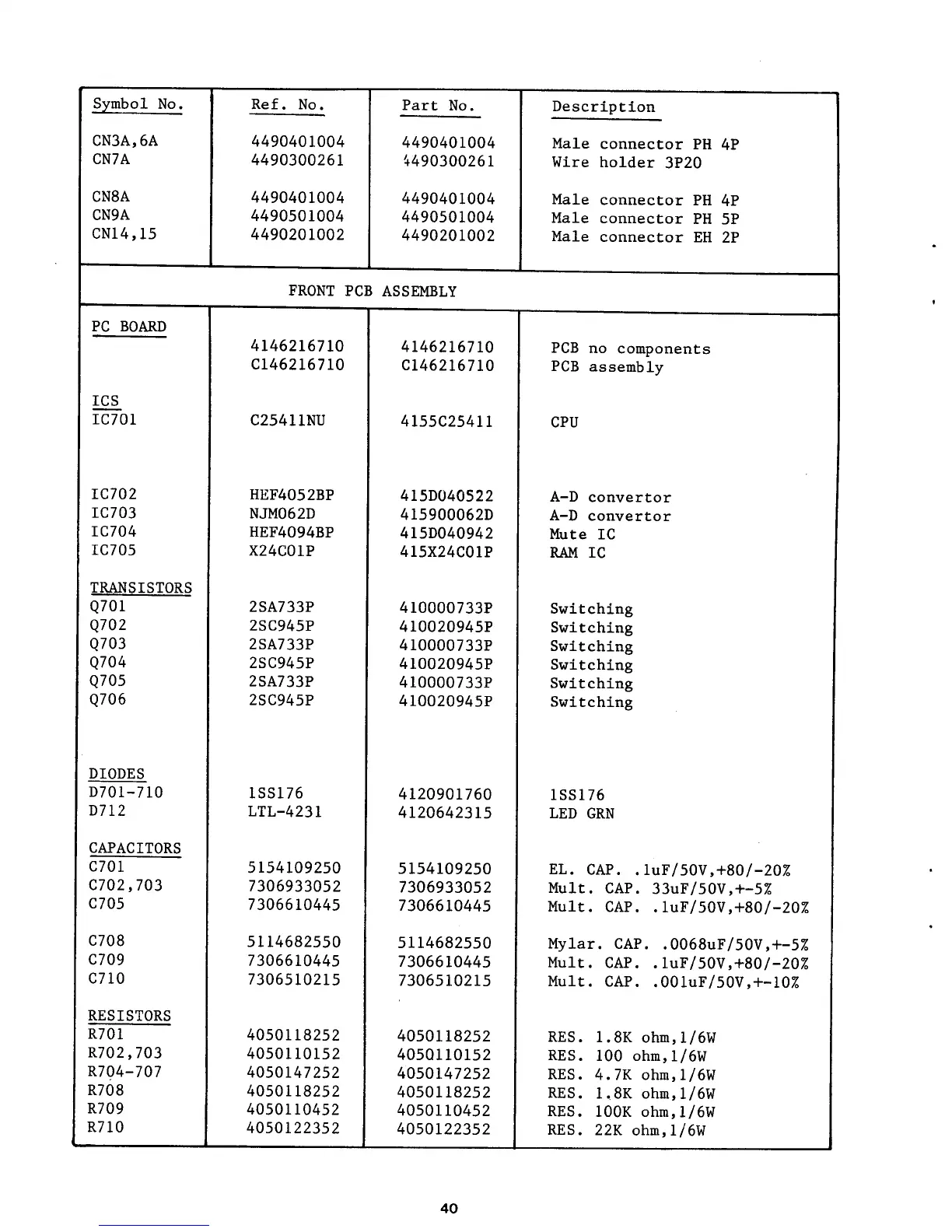

Symbol No .
CN3A,6A
CN7A
CN8A
CN9A
CN14,15
Ref .
No .
4490401004
4490300261
4490401004
4490501004
4490201002
Part No .
4490401004
4490300261
4490401004
4490501004
4490201002
Descript ion
Male connector PH 4P
Wire holder 3P20
Male connector PH 4P
Male
connector PH 5P
Male
connector EH 2P
FRONT PCB
ASSEMBLY
PC BOARD
4146216710
4146216710 PCB no components
C146216710
C146216710 PCB assembly
ICS
IC701
C25411NU
4155C25411 CPU
IC702
HEF4052BP 415DO40522
A-D convertor
IC703
NJM062D 415900062D
A-D convertor
IC704
HEF4094BP 415DO40942
Mute IC
IC705
X24COlP 415X24CO1P
RAM IC
TRANSISTORS
Q701 2SA733P
410000733P
Switching
Q702
2SC945P 410020945P
Switching
Q703
2SA733P 410000733P
Switching
Q704
2SC945P 410020945P
Switching
Q705 2SA733P
410000733P
Switching
Q706 2SC945P
410020945P
Switching
DIODES
D701-710 1SS176
4120901760 1SS176
D712
LTL-4231
4120642315 LED GRN
CAPACITORS
C701
5154109250
5154109250 EL . CAP .
.IuF/50V,+80/-207
C702,703
7306933052
7306933052 Mult . CAP .
33uF/50V,+-5 7
C705
7306610445
7306610445 Mult . CAP .
.IuF/50V,+80/-207
C708
5114682550 5114682550
Mylar . CAP . .0068uF/50V,+-57
C709
7306610445
7306610445 Mult . CAP .
.IuF/50V,+80/-207
C710
7306510215
7306510215 Mult . CAP .
.00luF/50V,+-107
RESISTORS
R701
4050118252 4050118252
RES . 1 .8K ohm,l/6W
R702,703
4050110152 4050110152
RES . 100 ohm,l/6W
R704-707
4050147252 4050147252
RES . 4 .7K ohm,l/6W
R708
4050118252 4050118252
RES . 1 .8K ohm,l/6W
R709
4050110452 4050110452
RES . 100K ohm,l/6W
R710 4050122352
4050122352 RES
. 22K ohm,l/6W
