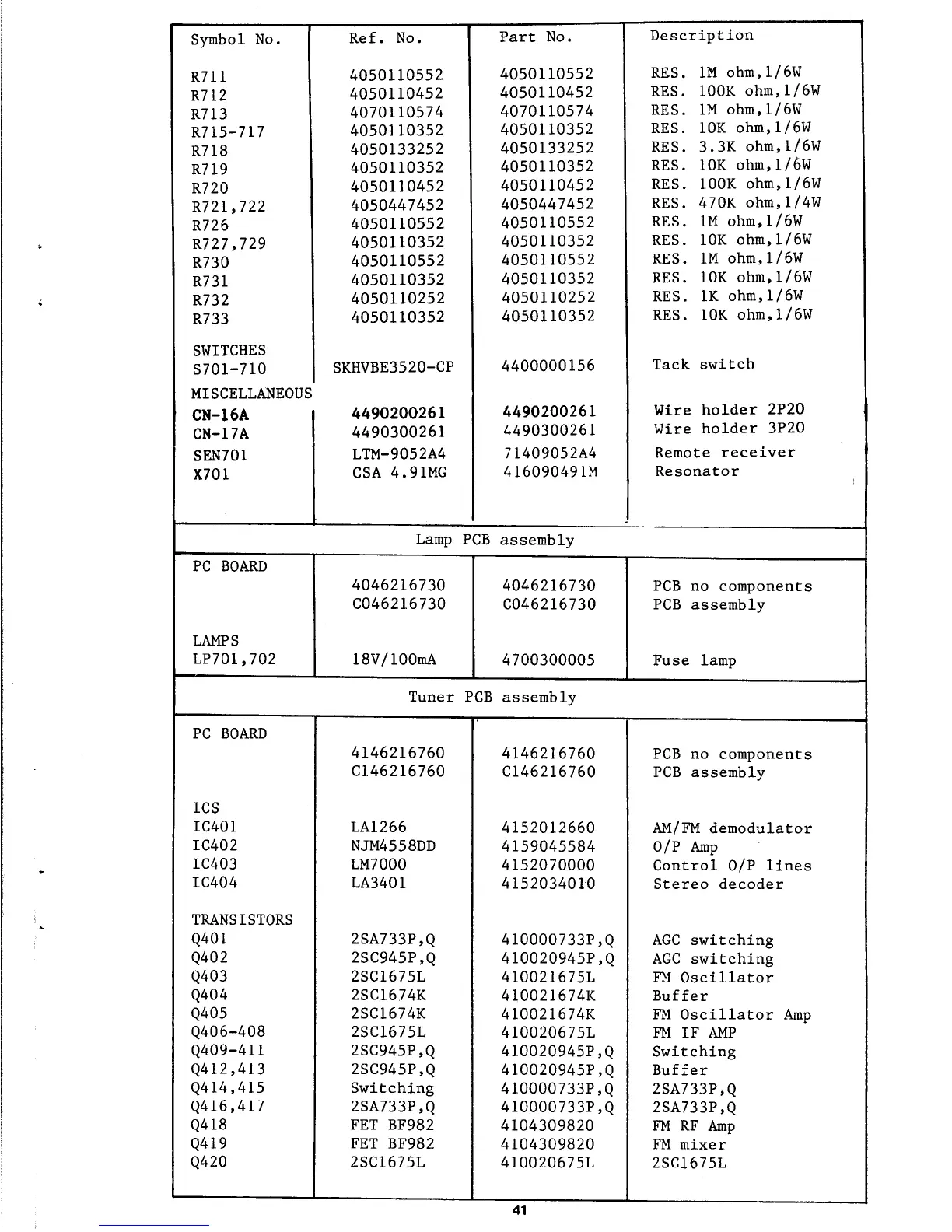

NAD 705 - Page 40

41
Symbol No .
Ref . No .
Part No .
Description
R711
4050110552
4050110552
RES . 1M ohm,l/6W
R712
4050110452
4050110452
RES . 100K
ohm,l/6W
R713
4070110574
4070110574
RES . 1M ohm,l/6W
R715-717
4050110352 4050110352
RES . 1OK
ohm,l/6W
R718 4050133252
4050133252
RES . 3 .3K
ohm,l/6W
R719
4050110352 4050110352
RES . 10K
ohm,l/6W
R720
4050110452 4050110452
RES . 100K
ohm,l/6W
R721,722 4050447452
4050447452
RES . 470K
ohm,l/4W
R726
4050110552 4050110552
RES . 1M
ohm,l/6W
R727,729
4050110352 4050110352
RES . 10K
ohm,l/6W
R730
4050110552
4050110552 RES . 1M
ohm,l/6W
R731
4050110352
4050110352
RES . 1OK
ohm,l/6W
R732
4050110252 4050110252
RES . 1K
ohm,l/6W
R733
4050110352
4050110352
RES . 10K
ohm,l/6W
SWITCHES
S701-710
SKHVBE3520-CP
4400000156
Tack
switch
MISCELLANEOUS
CN-16A
4490200261
4490200261
Wire holder
2P20
CN-17A
4490300261
4490300261
Wire holder
3P20
SEN701
LTM-9052A4 71409052A4
Remote receiver
X701
CSA 4 .91MG 416090491M
Resonator
Lamp PCB assembly
PC BOARD
4046216730
4046216730 PCB no components
C046216730
C046216730 PCB assembly
LAMPS
LP701,702 18V/100mA
4700300005 Fuse lamp
Tuner PCB assembly
PC BOARD
4146216760
4146216760 PCB no components
C146216760 C146216760 PCB
assembly
ICS
IC401 LA1266 4152012660 AM/FM
demodulator
IC402 NJM4558DD 4159045584 0/P Amp
IC403 LM7000 4152070000 Control
O/P lines
IC404 LA3401 4152034010 Stereo decoder
TRANSISTORS
Q401 2SA733P,Q 410000733P,Q AGC switching
Q402 2SC945P,Q 410020945P,Q AGC switching
Q403 2SC1675L 410021675L FM
Oscillator
Q404 2SC1674K 410021674K Buffer
Q405 2SC1674K 410021674K FM Oscillator Amp
Q406-408
2SC1675L 410020675L FM IF AMP
Q409-411 2SC945P,Q
410020945P,Q Switching
Q412,413 2SC945P,Q
410020945P,Q Buffer
Q414,415 Switching
410000733P,Q 2SA733P,Q
Q416,417 2SA733P,Q
410000733P,Q 2SA733P,Q
Q418 FET BF982
4104309820 FM RF Amp
Q419 FET BF982
4104309820 FM mixer
Q420 2SC1675L
410020675L 2SC1675L
