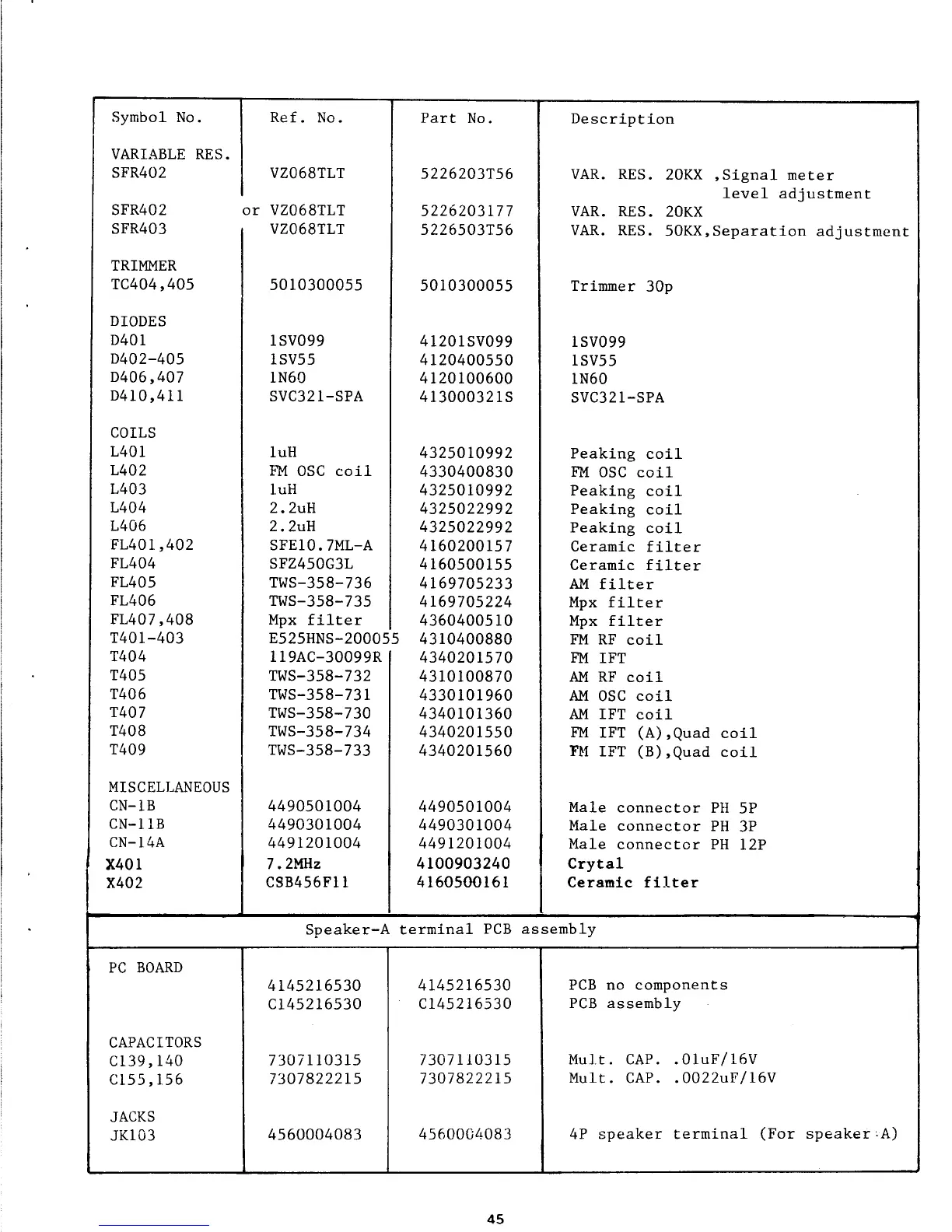

NAD 705 - Page 44

45
Symbol
No . Ref . No . Part No .
Description
VARIABLE RES .
SFR402
VZ068TLT 5226203T56 VAR . RES .
20KX Signal meter
level adjustment
SFR402 or VZ068TLT
5226203177 VAR . RES . 20KX
SFR403
VZ068TLT 5226503T56 VAR . RES .
50KX,Separation adjustment
TRIMMER
TC404,405
5010300055 5010300055 Trimmer 30p
DIODES
D401 1SV099
41201SVO99 1SVO99
D402-405 1SV55
4120400550 1SV55
D406,407 1N60
4120100600 1N60
D410,411 SVC321-SPA 413000321S
SVC321-SPA
COILS
L401 1uH
4325010992 Peaking coil
L402 FM OSC coil 4330400830
FM OSC coil
L403 luH 4325010992
Peaking coil
L404 2 .2uH 4325022992 Peaking
coil
L406
2
.2uH 4325022992 Peaking
coil
FL401,402 SFE10.7ML-A 4160200157 Ceramic
filter
FL404 SFZ450G3L 4160500155 Ceramic
filter
FL405 TWS-358-736 4169705233 AM
filter
FL406 TWS-358-735 4169705224 Mpx filter
FL407,408 Mpx filter 4360400510 Mpx filter
T401-403 E525HNS-2000554310400880 FM RF coil
T404
119AC-30099R 4340201570 FM IFT
T405 TWS-358-732 4310100870 AM RF coil
T406 TWS-358-731 4330101960 AM
OSC coil
T407 TWS-358-730 4340101360 AM IFT coil
T408
TWS-358-734 4340201550 FM IFT (A),Quad coil
T409
TWS-358-733 4340201560 FM IFT (B),Quad
coil
MISCELLANEOUS
CN-iB
4490501004 4490501004 Male connector P11
5P
CN-11B
4490301004 4490301004 Male connector PH
3P
CN-14A 4491201004
4491201004 Male connector PH 12P
X401 7
.2MHz 4100903240 Crytal
X402
CSB456FIl 4160500161 Ceramic filter
Speaker-A
terminal PCB assembly
PC BOARD
4145216530 4145216530
PCB no components
C145216530
C145216530 PCB assembly
CAPACITORS
0139,140 7307110315 7307110315
Mult . CAP . .0luF/16V
0155,156 7307822215
7307822215 Mult . CAP . .0022uF/16V
JACKS
JK103 4560004083
4560004083 4P speaker terminal (For speaker~A)
