NAD 705 - Page 45

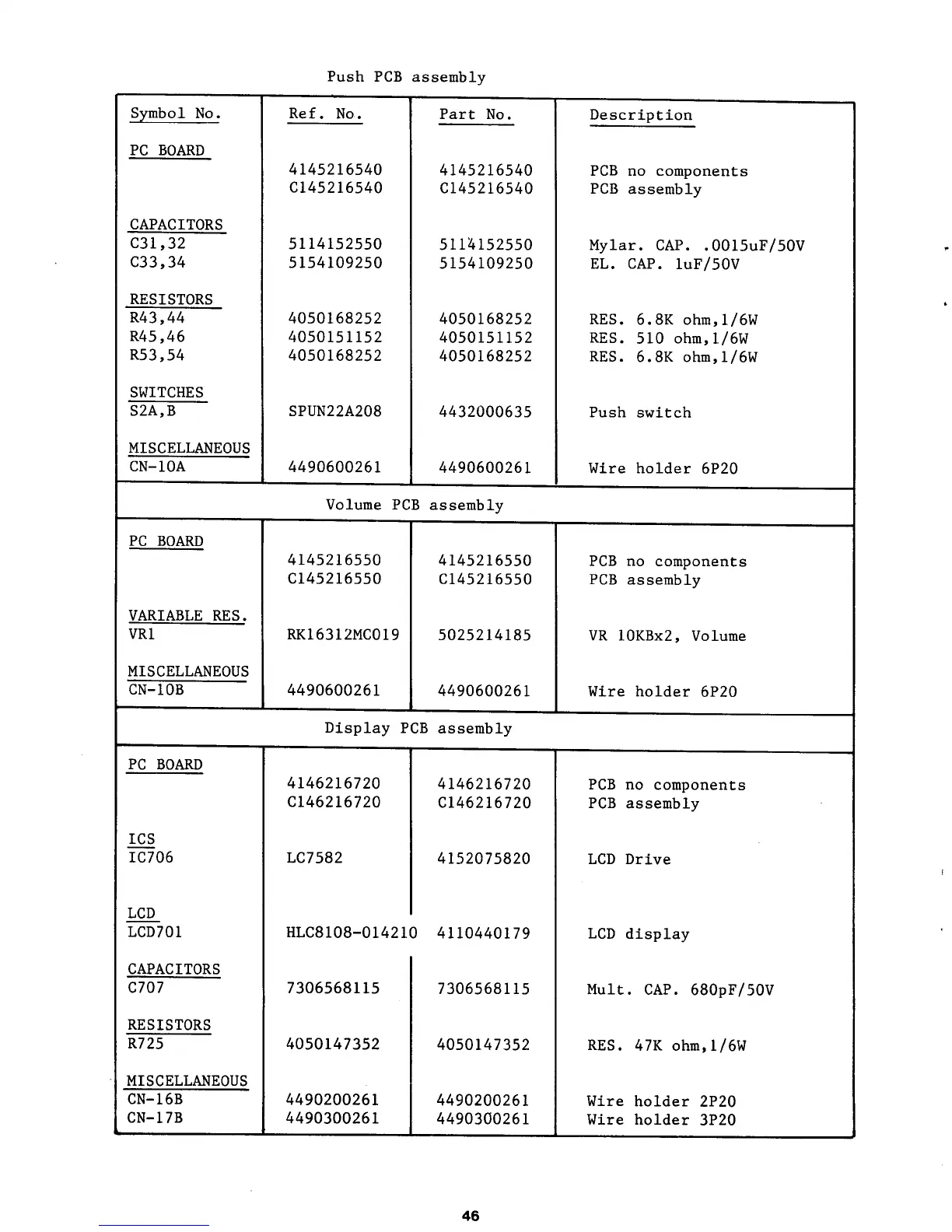

Push PCB assembly
Symbol No . Ref . No .
Part No . Description
PC BOARD
4145216540 4145216540 PCB no components
C145216540
C145216540 PCB assembly
CAPACITORS
C31,32 5114152550
5114152550 Mylar . CAP . .0015uF/50V
C33,34 5154109250
5154109250 EL . CAP . luF/50 V
RESISTORS
R43,44 4050168252
4050168252 RES . 6 .8K ohm,l/6W
R45,46 4050151152
4050151152 RES . 510 ohm,l/6W
R53,54 4050168252 4050168252
RES . 6 .8K ohm,l/6W
SWITCHES
S2A,B
SPUN22A208 4432000635 Push
switch
MISCELLANEOUS
CN-l0A
4490600261 4490600261 Wire holder
6P20
Volume PCBassembly
PC BOARD
4145216550
4145216550 PCB no components
C145216550
C145216550 PCB assembly
VARIABLE RES .
VR1 RK16312MC019
5025214185 VR 1OKBx2, Volume
MISCELLANEOUS
CN-10B 4490600261
4490600261 Wire holder 6P20
Display PCB assembly
PC BOARD
4146216720 4146216720 PCB
no components
C146216720 C146216720 PCB
assembly
_ICS
IC706
LC7582 4152075820 LCD
Drive
LCD
LCD701
HLC8108-0142104110440179 LCD
display
CAPACITORS
C707
7306568115 7306568115 Mult . CAP .
680pF/50 V
RESISTORS
R725
4050147352 4050147352 RES . 47Kohm,l/6W
MISCELLANEOUS
CN-16B 4490200261
4490200261 Wire holder 2P20
CN-17B 4490300261
4490300261 Wire holder 3P20
