NAD 705 - Page 46

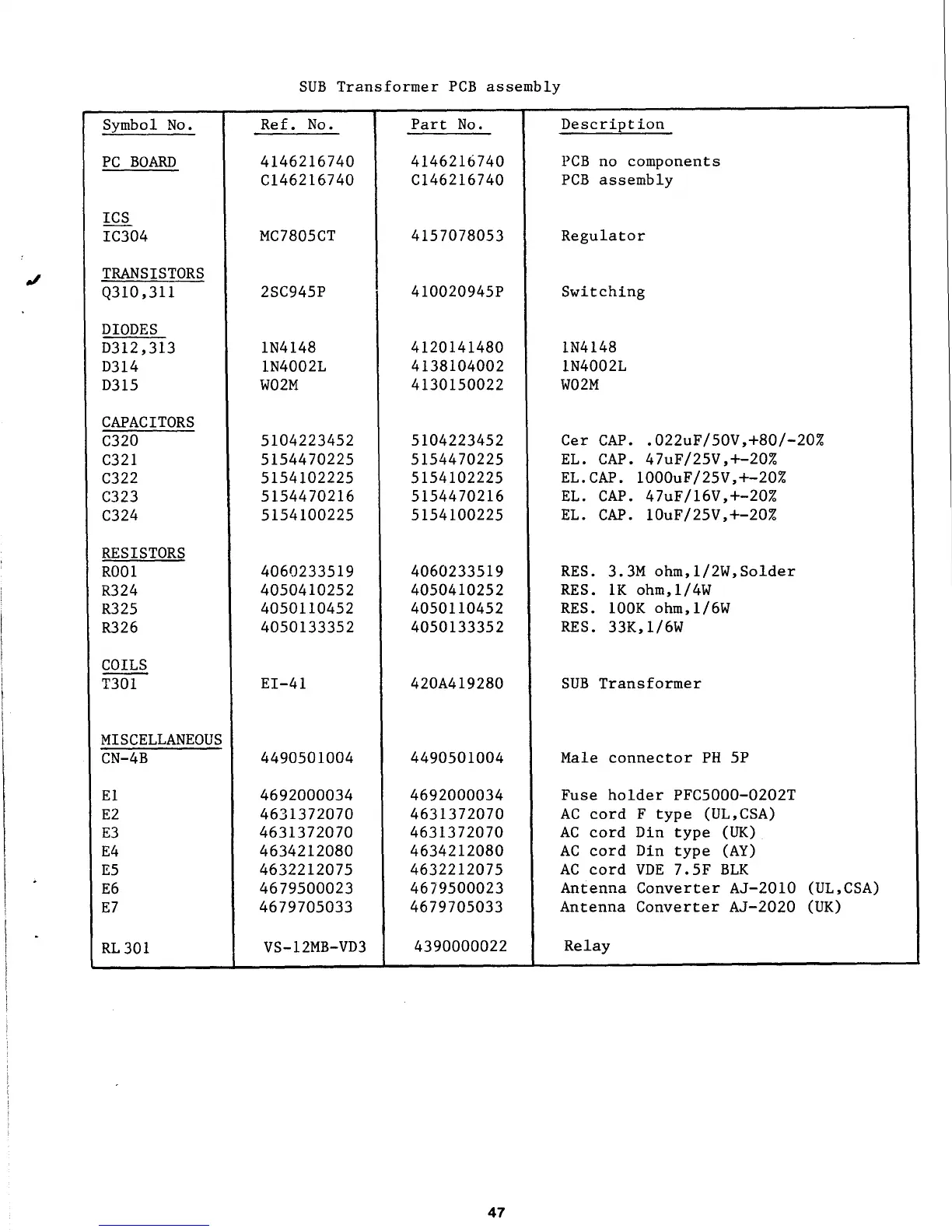

SUB Transformer PCB assembly
Symbol No .
Ref . No . Part No . Description
PC
BOARD 4146216740 4146216740 PCB no components
C146216740 C146216740 PCBassembly
ICS
IC304 MC7805CT 4157078053 Regulator
TRANSISTORS
Q310,311 2SC945P 410020945P Switching
DIODES
D312,313 1N4148 4120141480 1N4148
D314 1N4002L 4138104002 1N4002L
D315 W02M 4130150022 W02M
CAPACITORS
C320 5104223452 5104223452
Cer CAP . .022uF/50V,+80/-207
C321 5154470225 5154470225 EL . CAP . 47uF/25V,+-20 7
C322 5154102225 5154102225
EL
.CAP
.
1000uF/25V,+-20 7
C323 5154470216 5154470216
EL . CAP . 47uF/16V,+-20
7
C324 5154100225 5154100225
EL . CAP . lOuF/25V,+-20
7
RESISTORS
R001 4060233519 4060233519 RES . 3 .3M ohm,1/2W,Solder
8324 4050410252 4050410252 RES . 1K ohm,1/4W
8325 4050110452 4050110452
RES .
100K
ohm,1/6W
R326 4050133352 4050133352
RES .
33K,1/6W
COILS
T301 EI-41 420A419280 SUB Transformer
MISCELLANEOUS
CN-4B 4490501004 4490501004
Male connector PH 5P
El 4692000034 4692000034
Fuse holderPFC5000-0202T
E2 4631372070 4631372070 AC cord
F type (UL,CSA)
E3 4631372070
4631372070 AC cord Din type (UK)
E4
4634212080 4634212080 AC cord Din type (AY)
E5
4632212075 4632212075 AC cord VDE 7 .5F BLK
E6 4679500023
4679500023 Antenna Converter AJ-2010 (UL,CSA)
E7 4679705033
4679705033 Antenna Converter AJ-2020 (UK)
RL 301
VS-12MB-VD3 4390000022
Relay
