DETAILS AND WAVEFORMS ON SYSTEM
TEST AND DEBUGGING
1.SYSTEM 27MHz CLOCK, RESET, FLASH R/W SIGNAL.
1) ES6168F main clock is at 27MHz(pin49)

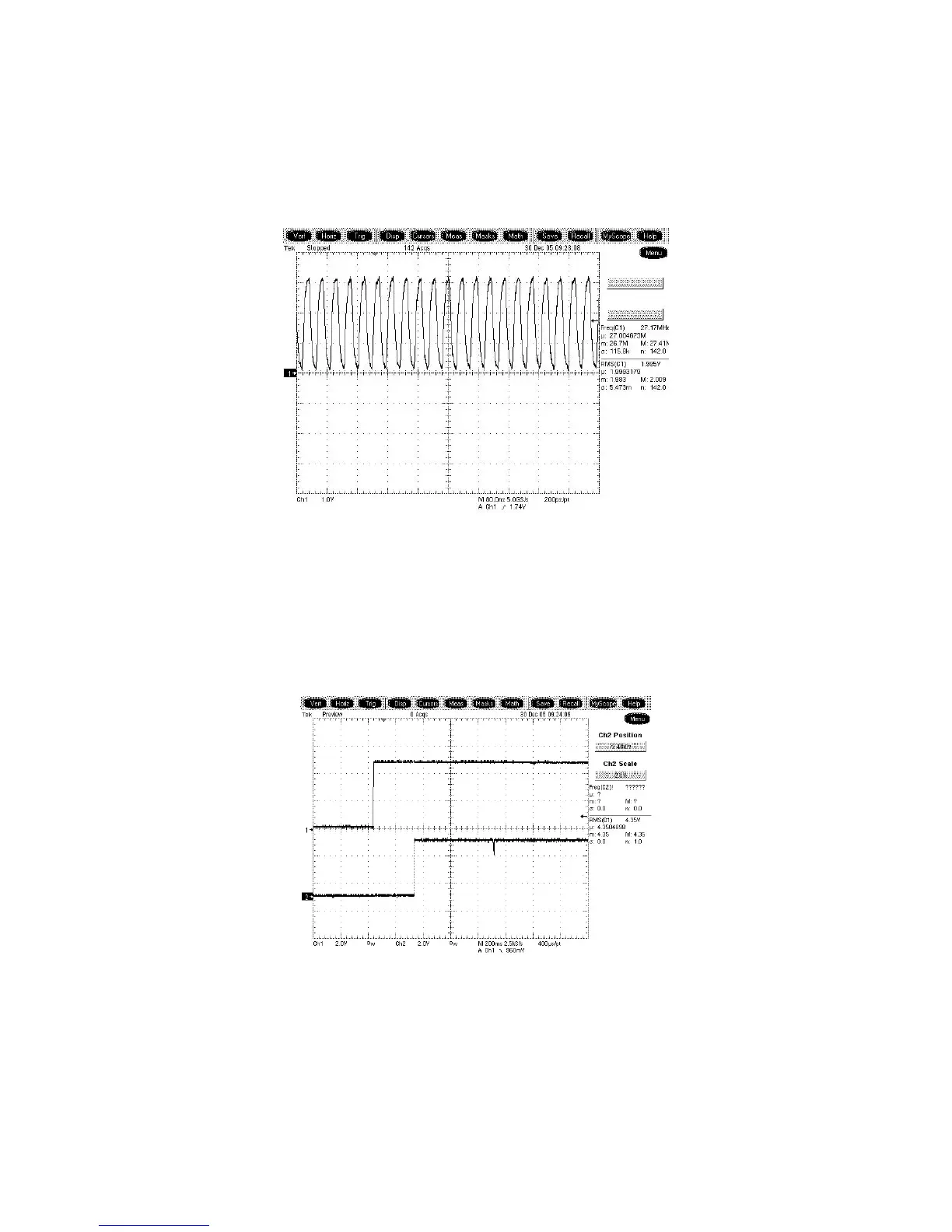

FIG 1-1
2) ES6168F( pin24) reset is low active.
Ch1 VCC
CH2 RESET
FI1-2
