NAD T 741 - Key Board Schematic

NAD T 741
64 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
31 32

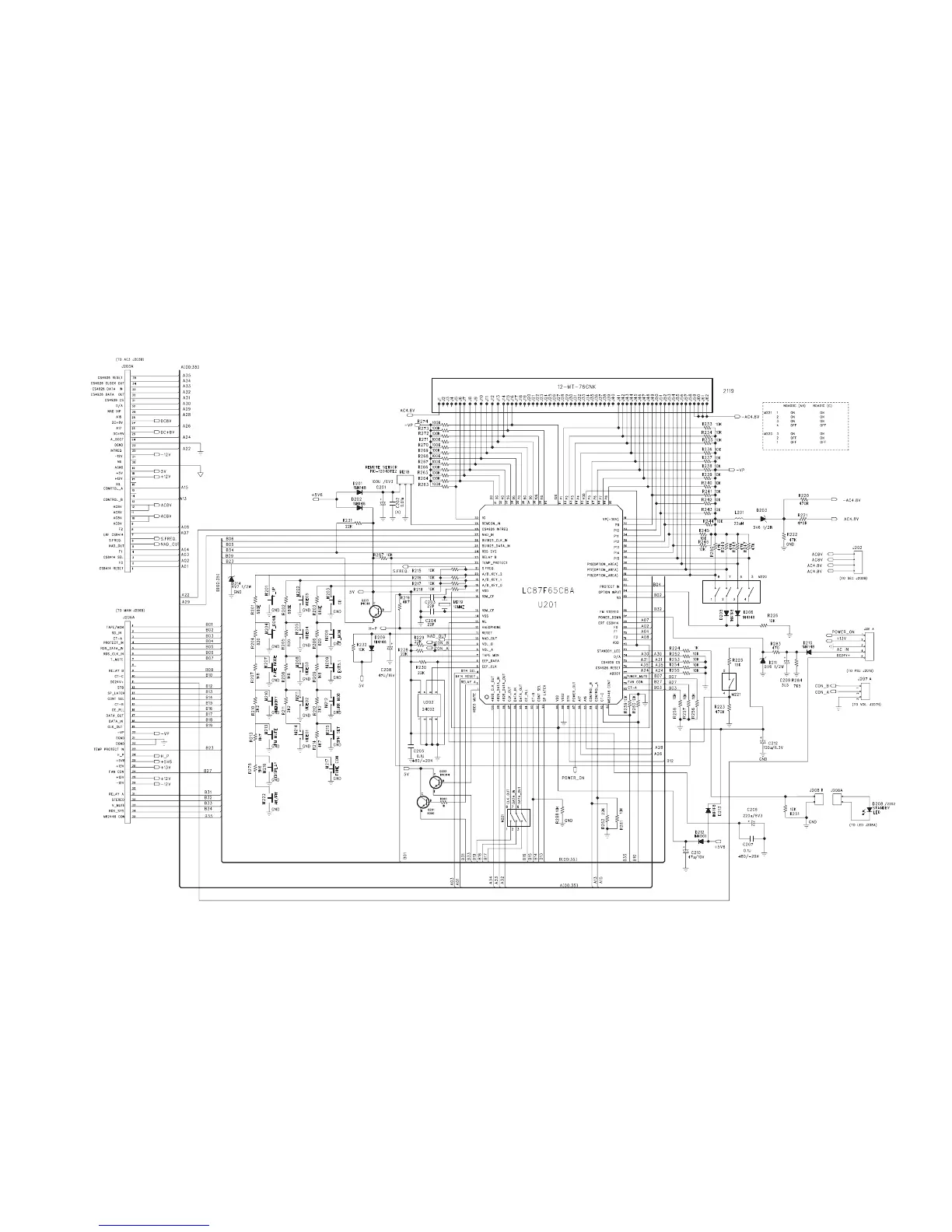

KEYBOARD
NOTE: 1. RESISTORS, ARE CARBON FILM 5% 1/8W
UNLESS OTHERWISE SPECIFIED.
2. CERAMIC CAPACITORS, ARE 50V 10%.
UNLESS OTHERWISE SPECIFIED.
