DISASSEMBLY INSTRUCTIONS
1. Remove machine screws M4.0 x 8.0 (x8 pcs) from the side panels.
Remove tapping screw 3.5 x 8.0 (x4 pcs) from the back panel.
Refer to Figure No. 1.
2. Pull both sides of the TOP COVER slightly outwards and tilt approx. 35 ° and then
remove in the direction as indicated. Refer to Figure No. 2.

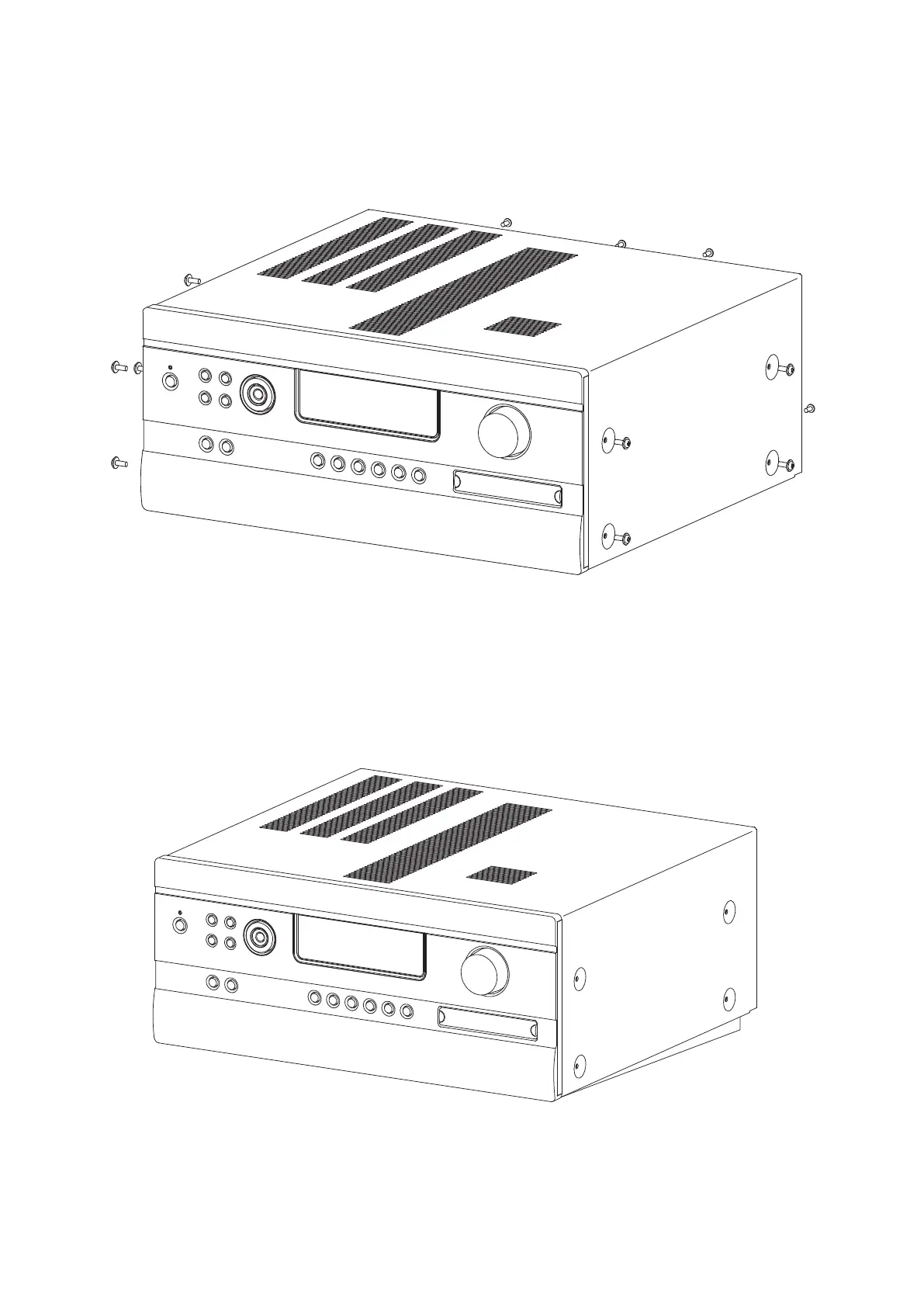

Figure No. 1
Figure No. 2
