Mesurement Method
4-4. Note on the Use of Tip Voltage Detection Cable
Since induced electromotive force by welding current generates induction by the tip voltage detection
cable when measuring the tip voltage, as shown in the following figure, please make connection of the
tip voltage detection cable. When especially a lead is made to gather and is attached, induced electromotive
force becomes small and the tip voltage can measure correctly.

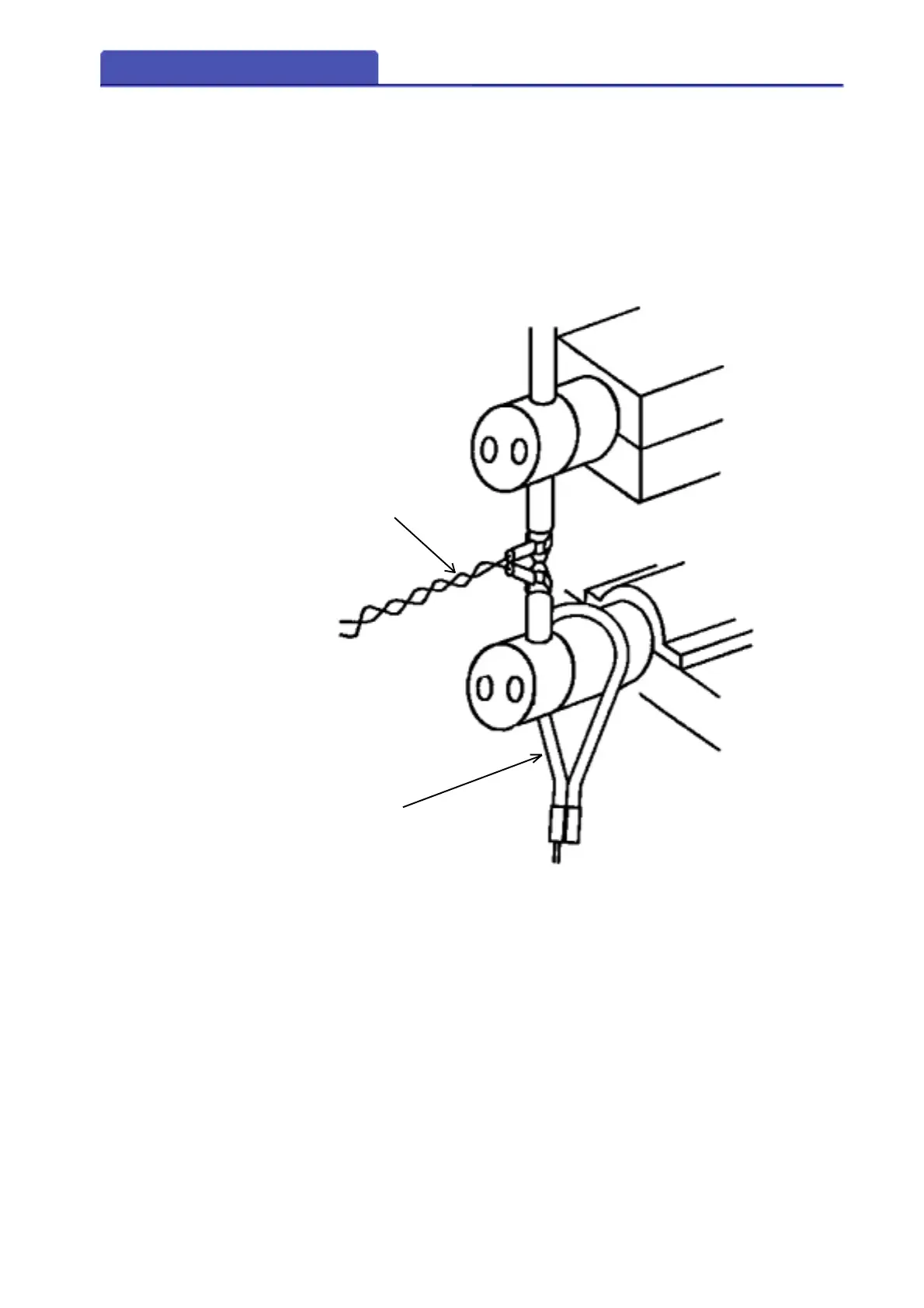

Tip voltage detection cable
CT coil
