12 / 24
Selection of Menu Function
(3) Selection of Unit of measurement time
There are two unit of measurement time to select from, namely, cyc and ms.
ms can set up only at the time of DC welding.
(Example of a display)
Caution
- When this setup is changed, all the measurement data memorized by the
memory is eliminated
(4) Setting for impulse No.
Setting ranges are 0-9.
0 :measures and displays all welding.
1-9 :measure and display only the data of the specified number of impulses.
(Example of a display)
At the time of cycle measurement, it is regarded as an impulse by 1 or more cycle pause, and it is
regarded as the welding end by 31 or more cycle pause.
At the time of msec measurement, it is regarded as an impulse by 13 or more msec pause, and it is
regarded as the welding end by 101 or more ms pause.

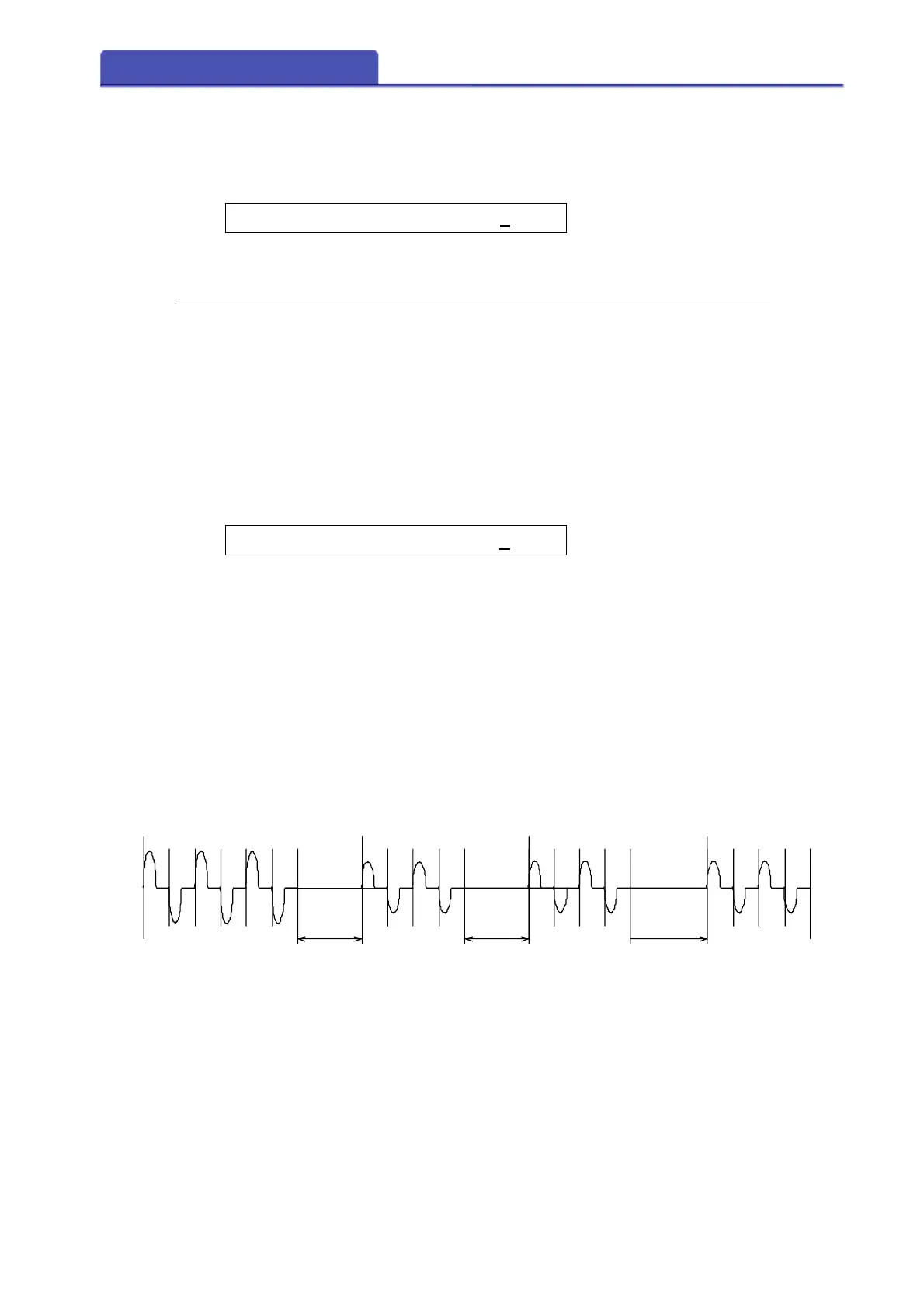

If impulse No. is set as 2 in the case of the following figure, the 2nd step of welding will be
measured. When there is no 31 or more cycles welding after a welding pause, a series of welding
judge it as an end. Moreover, when a setup number of welding cannot be found, an impulse setting
error is outputted.
I M P U L S E 0
U N I T c y c
1st
pause time
1or more cy c
30 or les cyc
weld end
recognition time
31 or more cyc
1st 2nd 3rd
pause time
1or more cy c
30 or les cyc
To Next Page
