14 / 24
Selection of Menu Function
(7) Setting of measurement end cycle
cyc : It can set up in the range of 0.5 - 99.5 cyc.
ms : It can set up in the range for 1 - 1999ms.

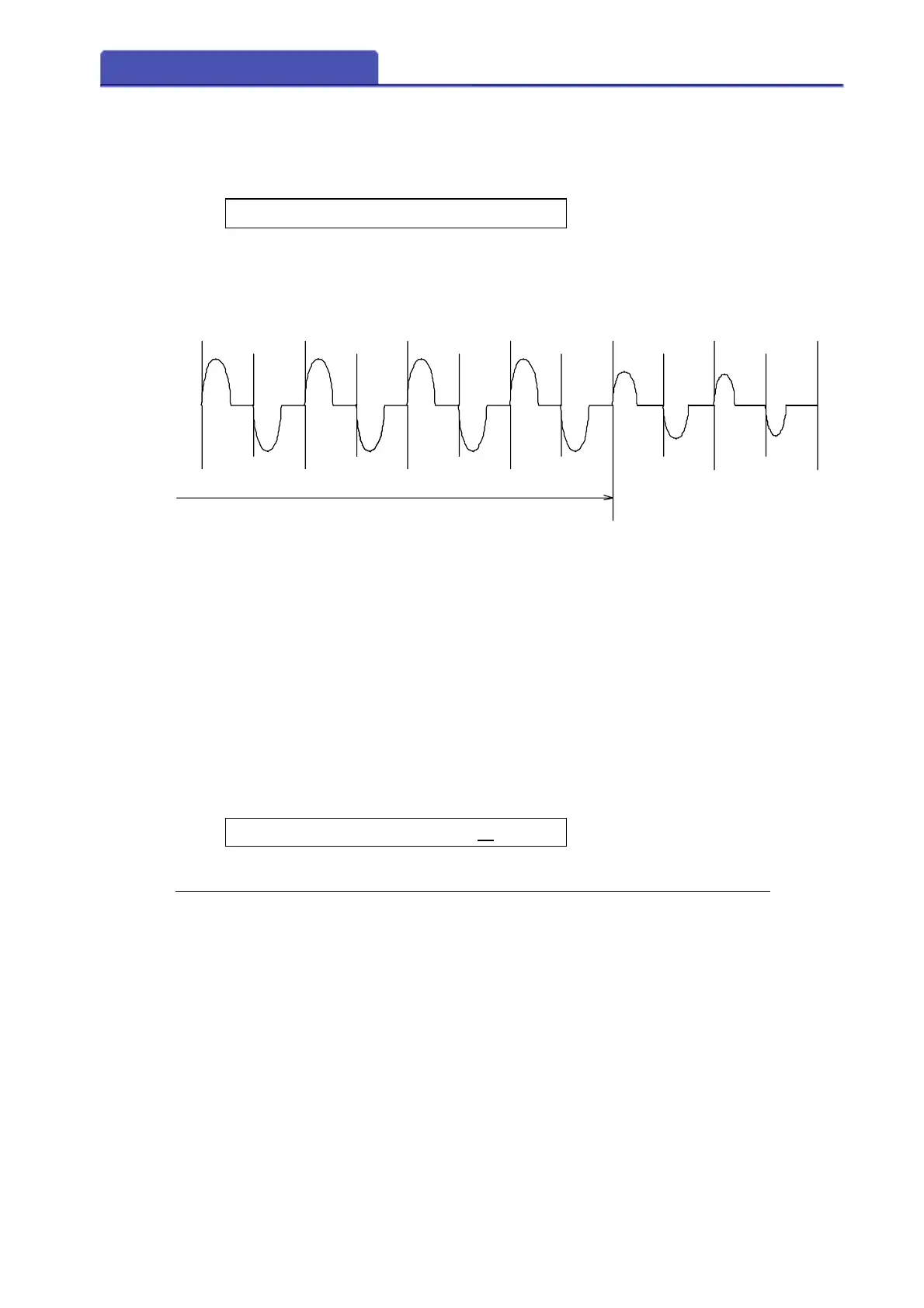

(Example of a display)
When the down slope etc. is included in welding current control, steady-state current can be
measured by specifying a measurement end cycle. In the case of a figure, a measurement end cycle
is set as 10.0cyc.
(8) Setting of the data save method
The data saved is
- Average data : 10000 data
- Each cycle/msec data : 20 data
- Wave data : 1 newest data
OVER: The newest welding point in the range of the number of the maximum storage is saved.
LOCK: It is not saved after storage and it to the number of the maximum storage .
(Example of a display)
Caution
- Waveform data, this setup is invalid. The one newest data is saved.
E N D 9 9 .
5
C Y
S A V E MO D E O V E R
12.010.5 11.06.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 11.5
Steady-state current
